Vacuum Hose Diagram(S)

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label specifications.

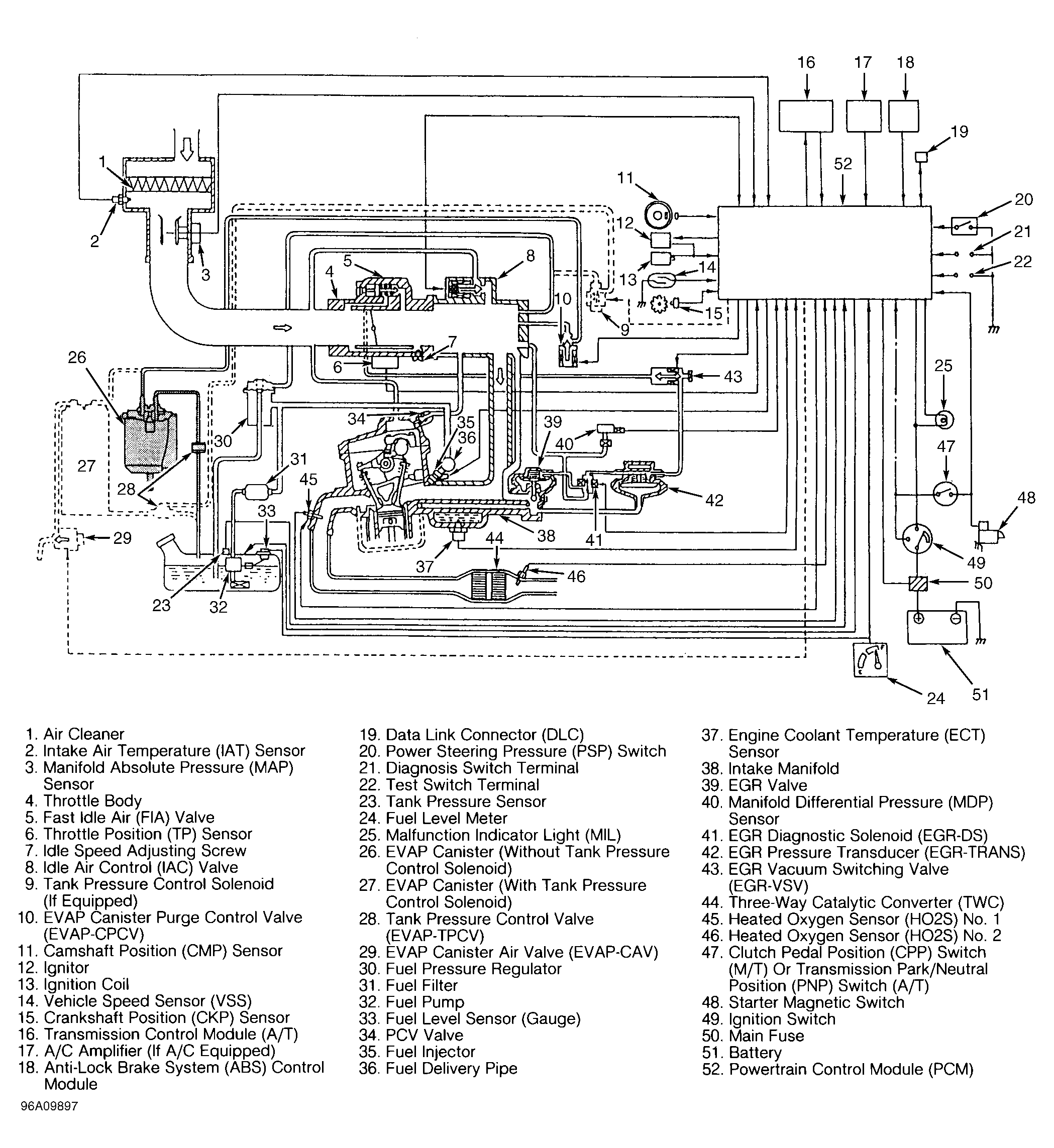

Fig 1: Vacuum Diagram
G96A09897Courtesy of SUZUKI OF AMERICA CORP.
