Sidekick, Tracker & X90: Installation

Clean and lubricate axle shaft oil seals. To install right-side axle shaft, push into differential until circlip locks into groove and axle is held in position. Install mounting bolts to left-side axle shaft. To complete installation, reverse removal procedure.

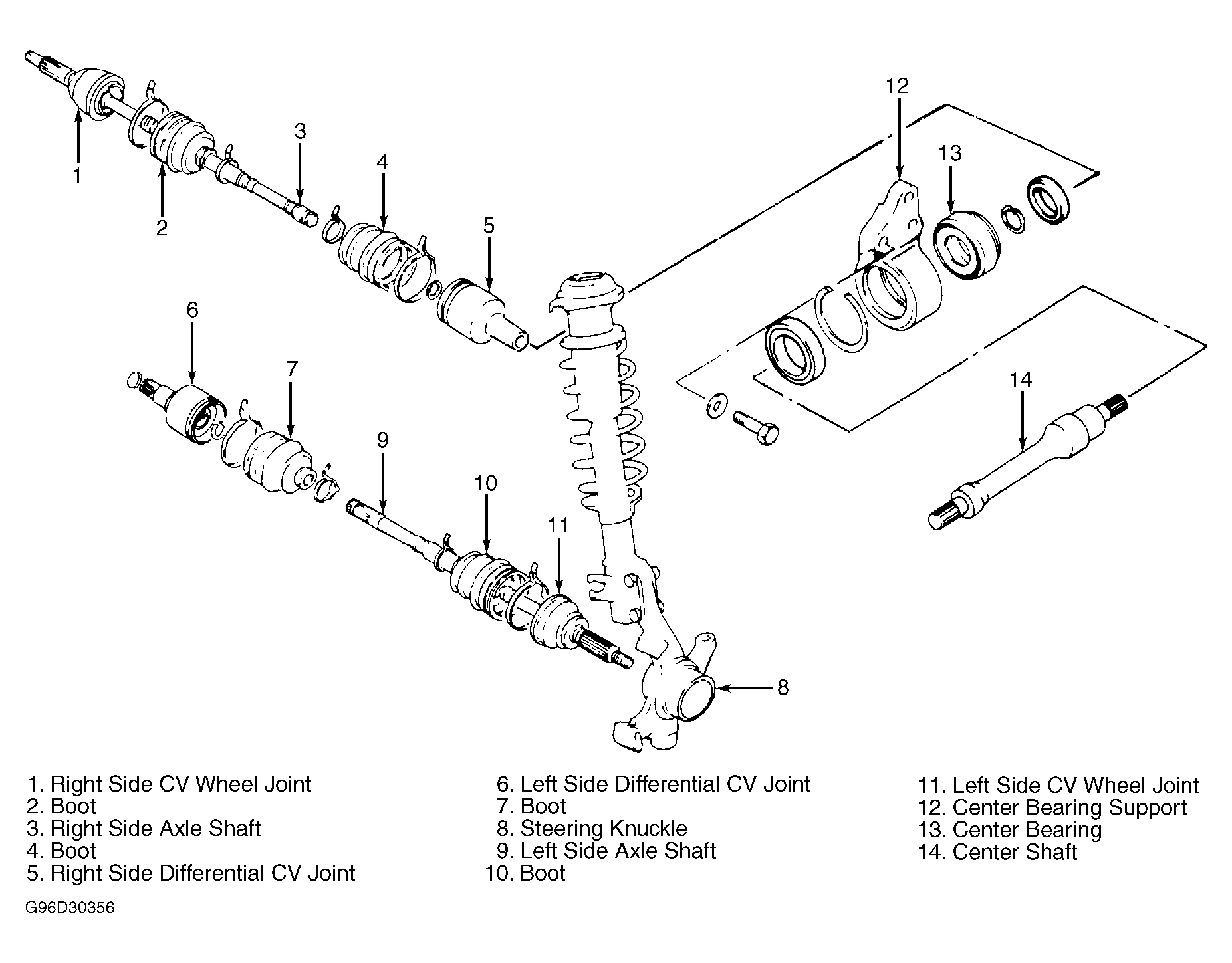

Fig 1: Exploded View Of FWD Axle Components (Esteem & Swift)

Courtesy of SUZUKI OF AMERICA CORP.

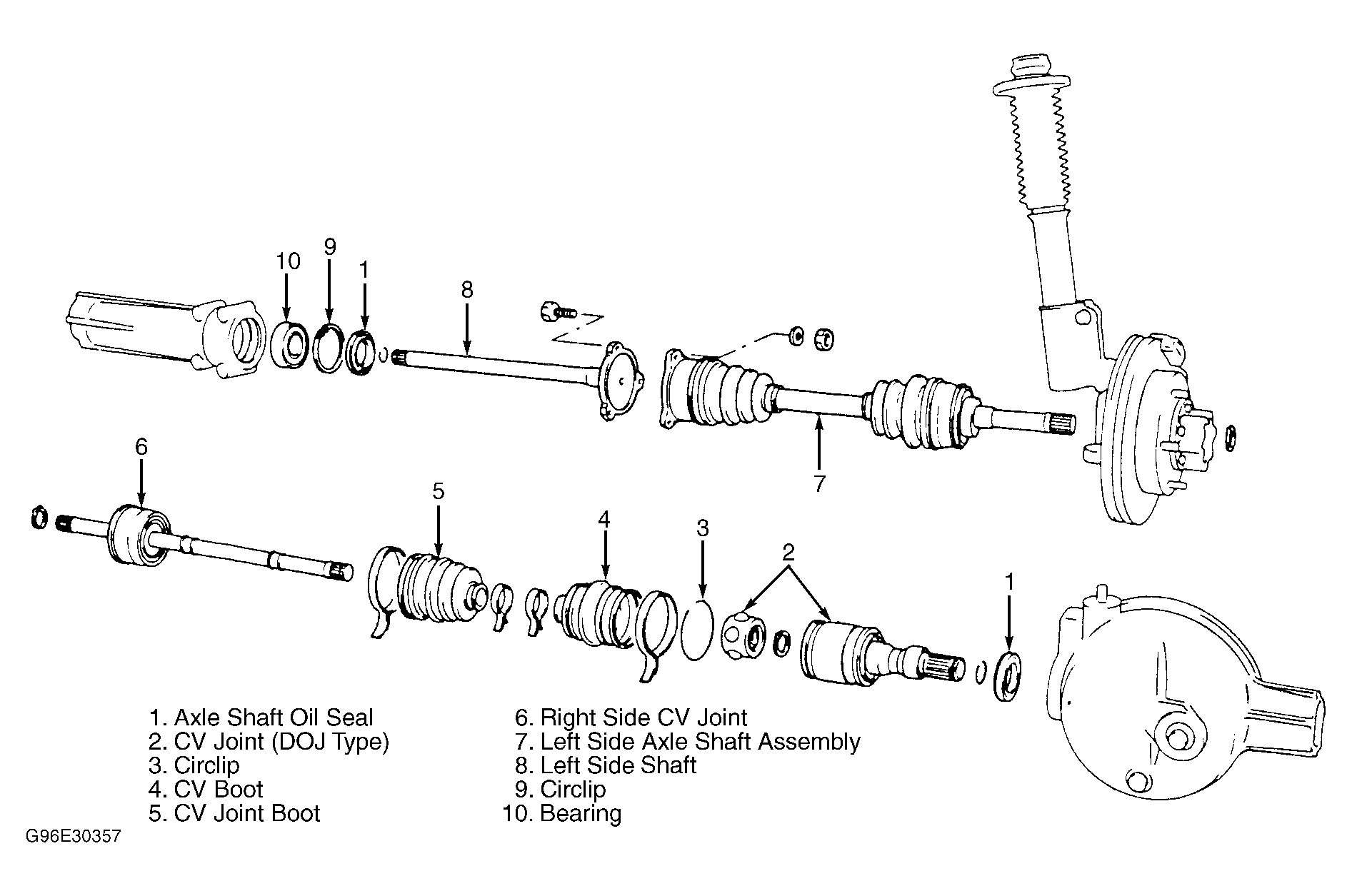

Fig 2: Exploded View Of FWD Axle Components (Sidekick, Tracker & X90)

Courtesy of SUZUKI OF AMERICA CORP.

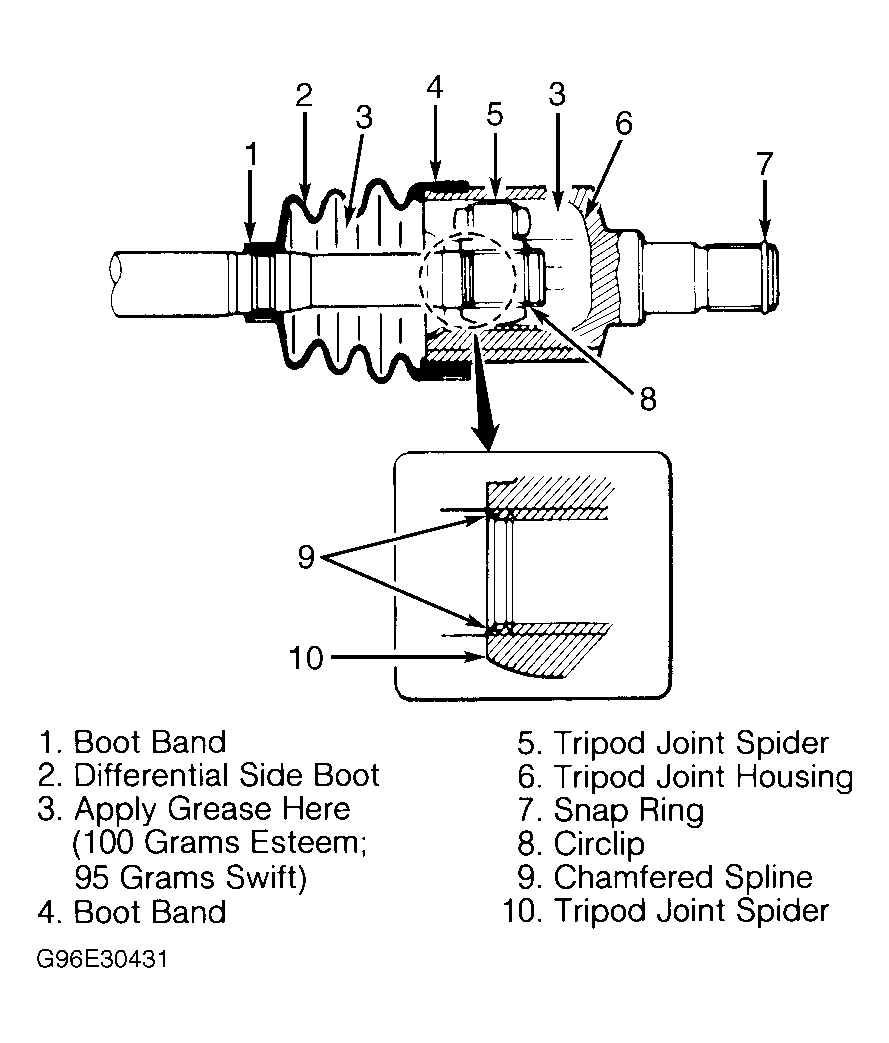

Fig 3: Reassembling FWD Axle (Esteem & Swift - 1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

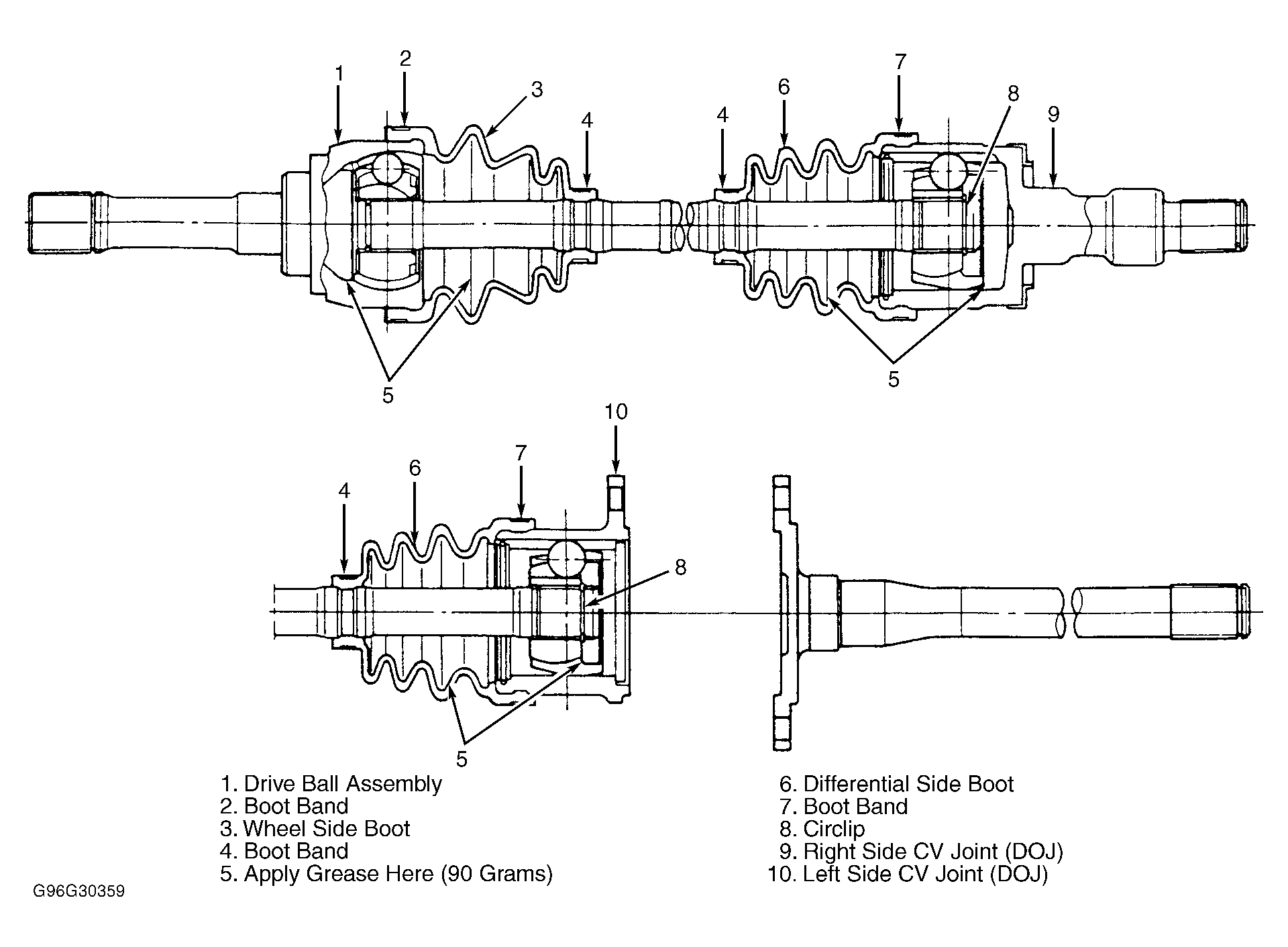

Fig 4: Reassembling FWD Axle (Esteem & Swift - 2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

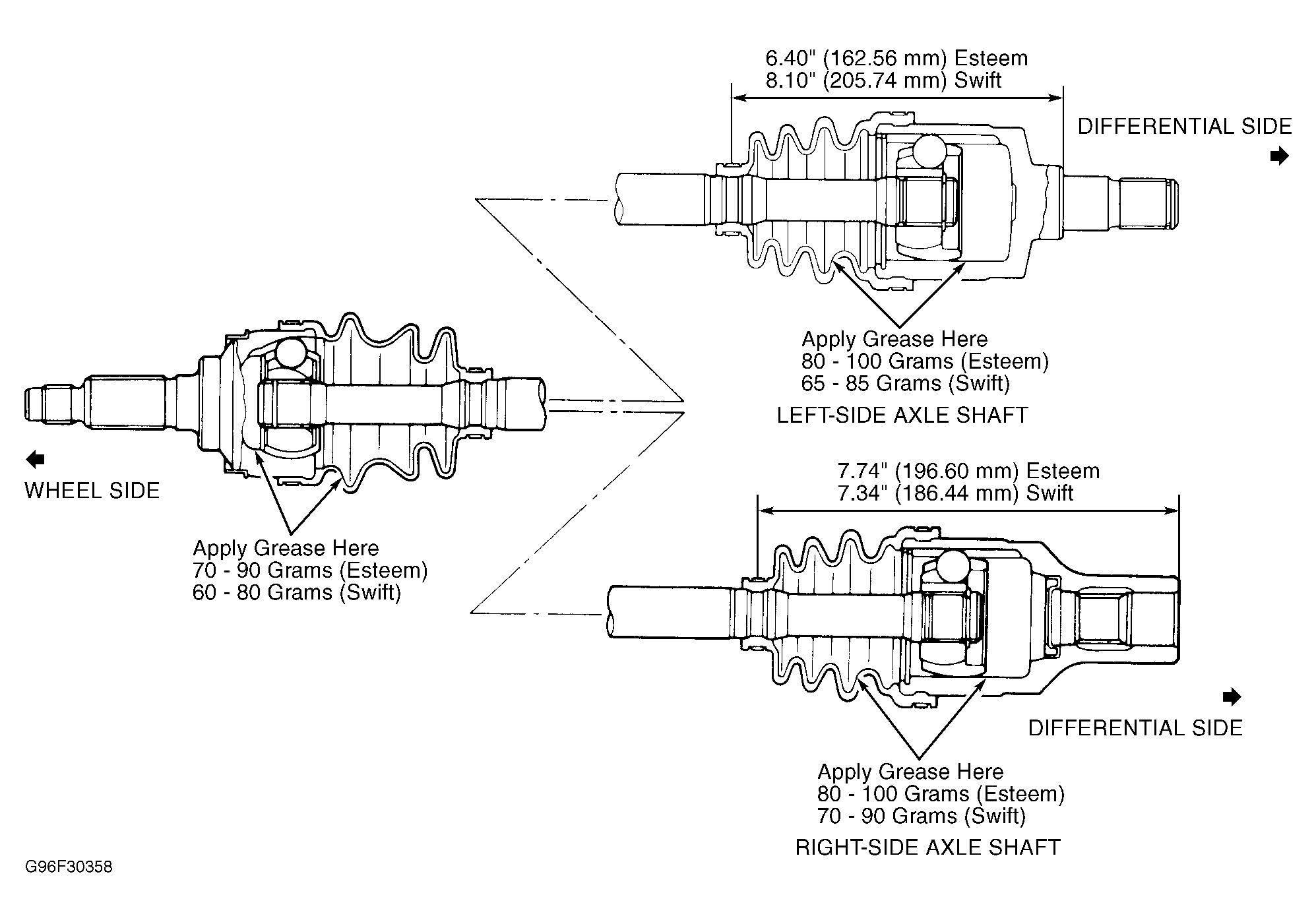

Fig 5: Reassembling FWD Axle (Sidekick, Tracker & X90)

Courtesy of SUZUKI OF AMERICA CORP.

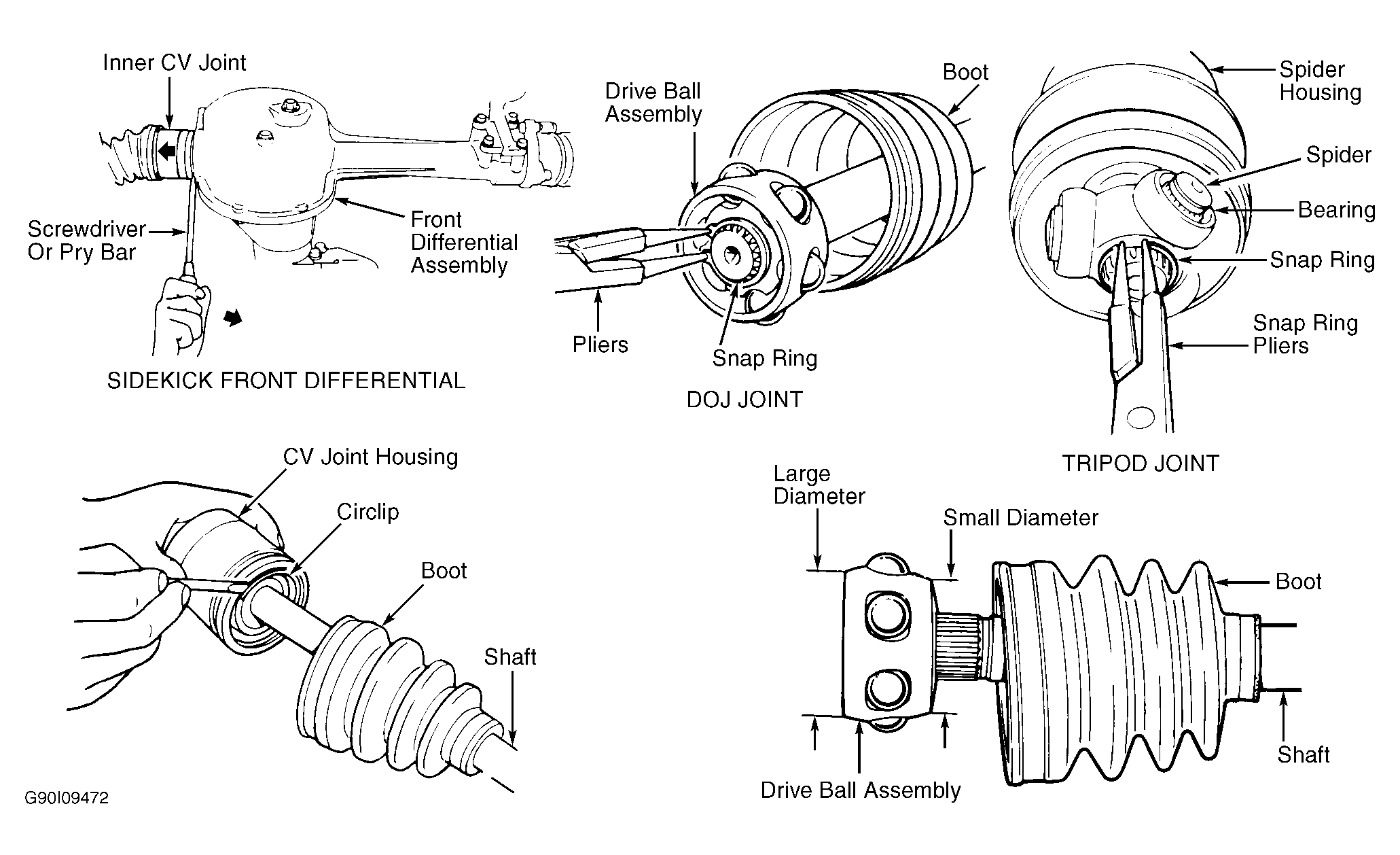

Fig 6: Overhauling CV Joints

Courtesy of SUZUKI OF AMERICA CORP.
