DTC 61 - Air Bag Indicator Circuit Failure

WARNING: This page is about a different car, the 1996 Suzuki Esteem. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. carefully follow all instructions.

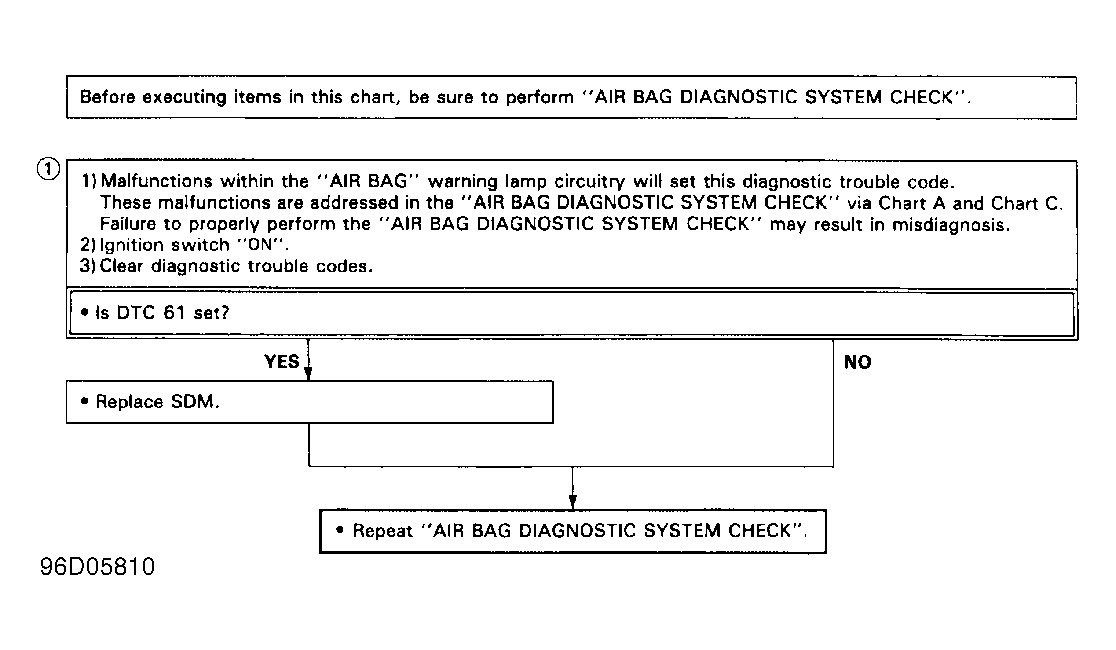

Fig 1: DTC 61 - Air Bag Indicator Circuit Failure Courtesy f Suzuki Motor Corporation
G96D05810
