Master Cylinder

NOTE: All models are equipped with master cylinder type "A" or type "B". Use illustration for exploded view of master cylinder assembly. See Fig 1 .

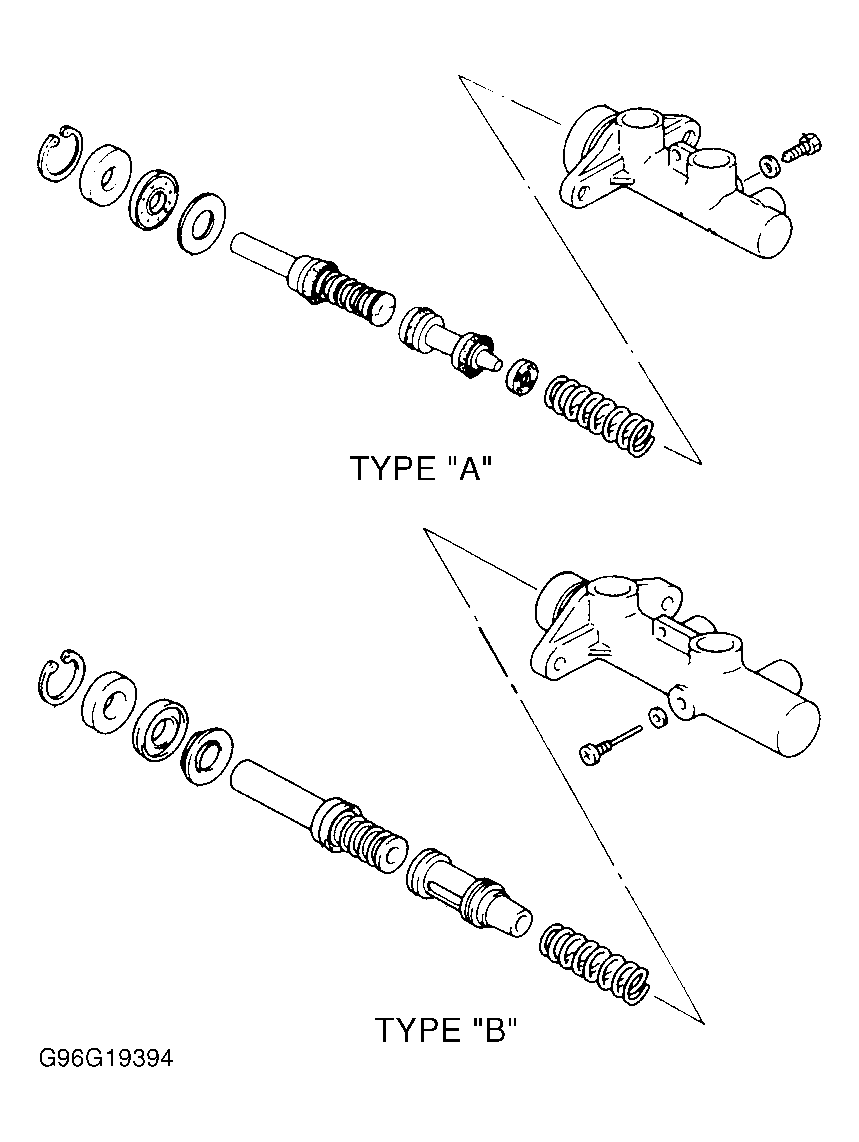

Fig 1: Identifying Master Cylinder Components
G96G19394Courtesy of SUZUKI OF AMERICA CORP.
