Front Under Cover: Removal

  1. Lift Up The Vehicle.
  2. Remove The Bolts And Clips, And Remove The Under Cover Front.
    • H4Do Model
      G16387294Courtesy of SUBARU OF AMERICA, INC.

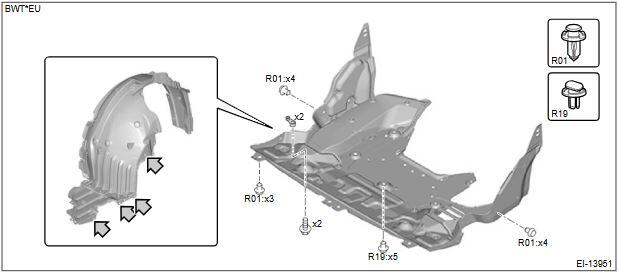

    • H4Dotc Model
      G00686973Courtesy of SUBARU OF AMERICA, INC.
  3. Remove The Bolts And Remove The Under Guard Front. (H4Dotc Model)
    G16387296Courtesy of SUBARU OF AMERICA, INC.
