Engine Intake System (Induction) And Turbocharger: Turbocharger: Disassembly

CAUTION:

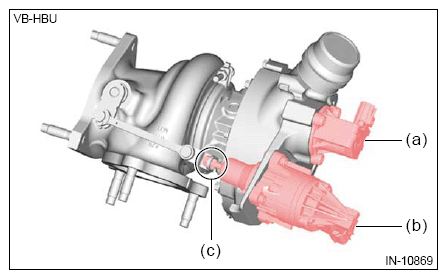

• The electronic air by-pass valve (a) and the electronic wastegate valve (b) are non-disassembled parts, so do not remove them.
• Do not adjust the actuator rod nut (c).

Courtesy of SUBARU OF AMERICA, INC.

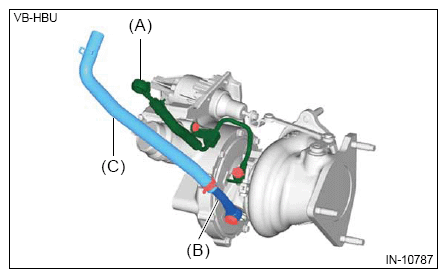

1. Remove the oil pipe (A), water pipe (B) and water hose (C).

   Courtesy of SUBARU OF AMERICA, INC.

2. Remove the water pipe.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the stud bolt using TORX® E10.

Courtesy of SUBARU OF AMERICA, INC.
