Intake Duct No. 2
- Replace the intake duct No. 2 gasket with a new part.
- Return the spring of intake duct No. 2 to the lock position, and connect the intake duct No. 2.CAUTION:
- Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.
- Confirm that the connections are secure.

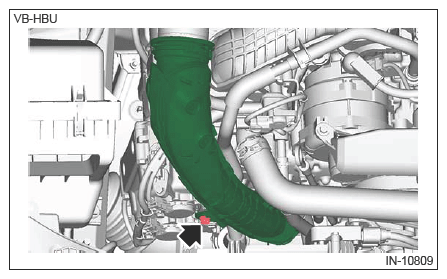

- Install the bolt which secures the intake duct No. 2.
Tightening torque:
16 N.m (1.6 kgf-m, 11.8 ft-lb)
- Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
- Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>INSTALLATION .
