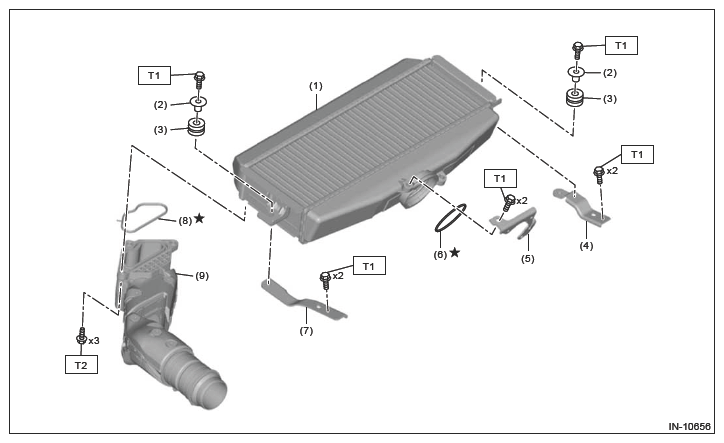

Components With Torque Specifications: INTERCOOLER
| (1) | Intercooler |
| (2) | Spacer |
| (3) | Cushion |
| (4) | Intercooler stay LH |
| (5) | Throttle body stay |
| (6) | Gasket |
| (7) | Intercooler stay RH |
| (8) | Gasket |
| (9) | Intake duct No. 3 |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>ASSEMBLY .
