Air Cleaner Case: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
  3. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) securing the harness.
    G14610434Courtesy of SUBARU OF AMERICA, INC.

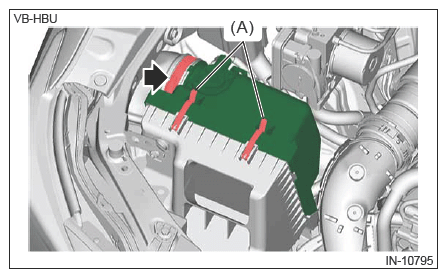

  4. Loosen the clamp securing the turbo duct, disengage the clip (A), and remove the air cleaner case (rear) and air cleaner element.
    G14610444Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolts and nut, and then remove the air cleaner case (front).
    G14610445Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cushion.
NOTE: Perform this procedure only when required.
G14610446Courtesy of SUBARU OF AMERICA, INC.
