In-Vehicle Sensor (Auto A/C Model): Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the in-vehicle sensor.

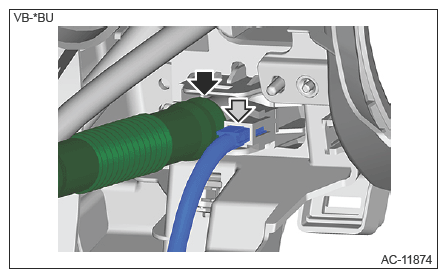

    1. Disconnect the aspirator hose and connector.
      G14612144Courtesy of SUBARU OF AMERICA, INC.

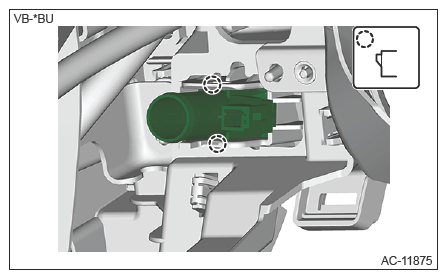

    2. Release the claws and remove the in-vehicle sensor.
      G14612145Courtesy of SUBARU OF AMERICA, INC.
