Airbag System: Wiring Diagram

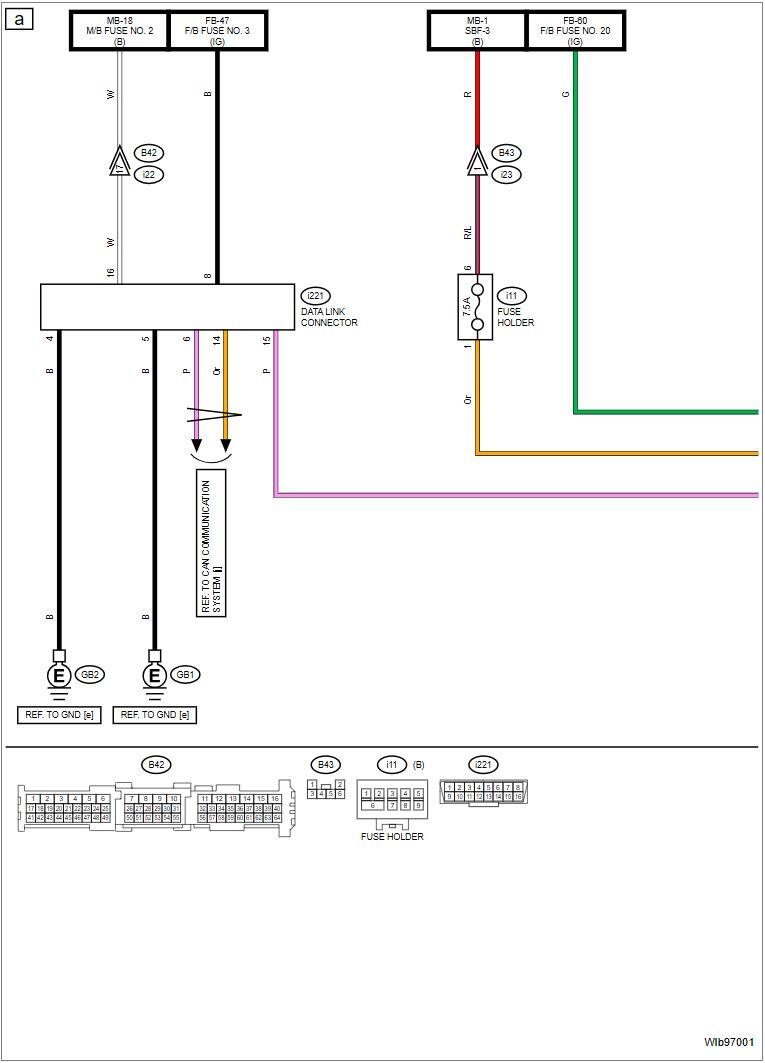

G00687323Courtesy of SUBARU OF AMERICA, INC.

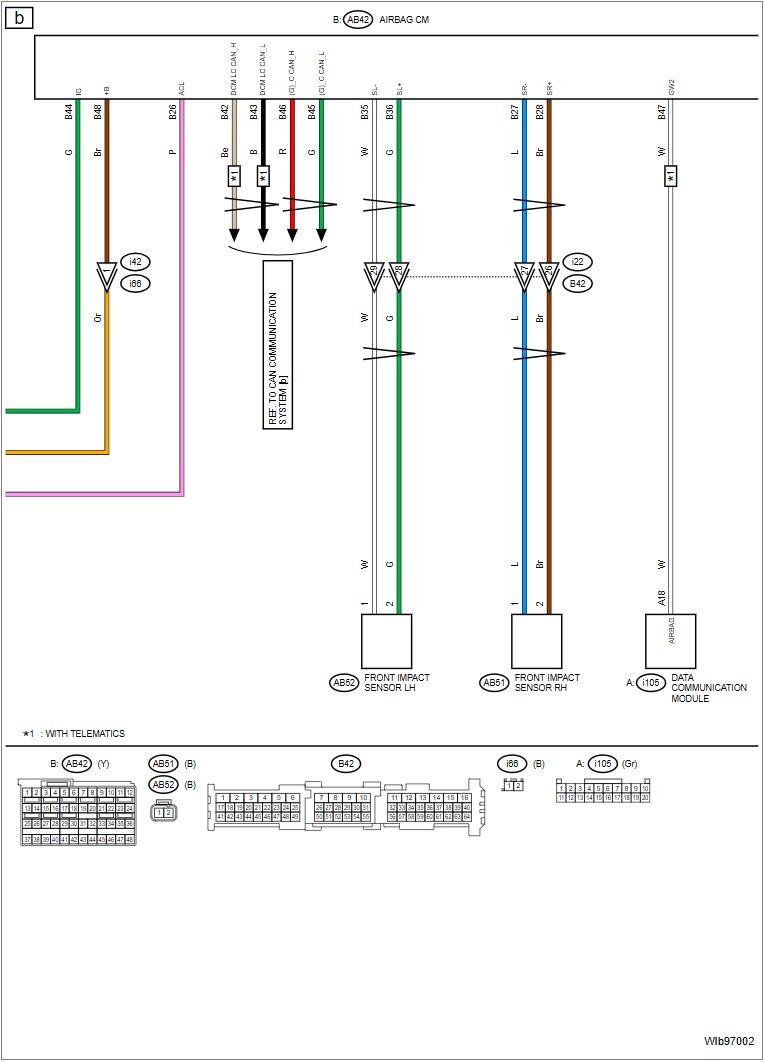

G00687324Courtesy of SUBARU OF AMERICA, INC.

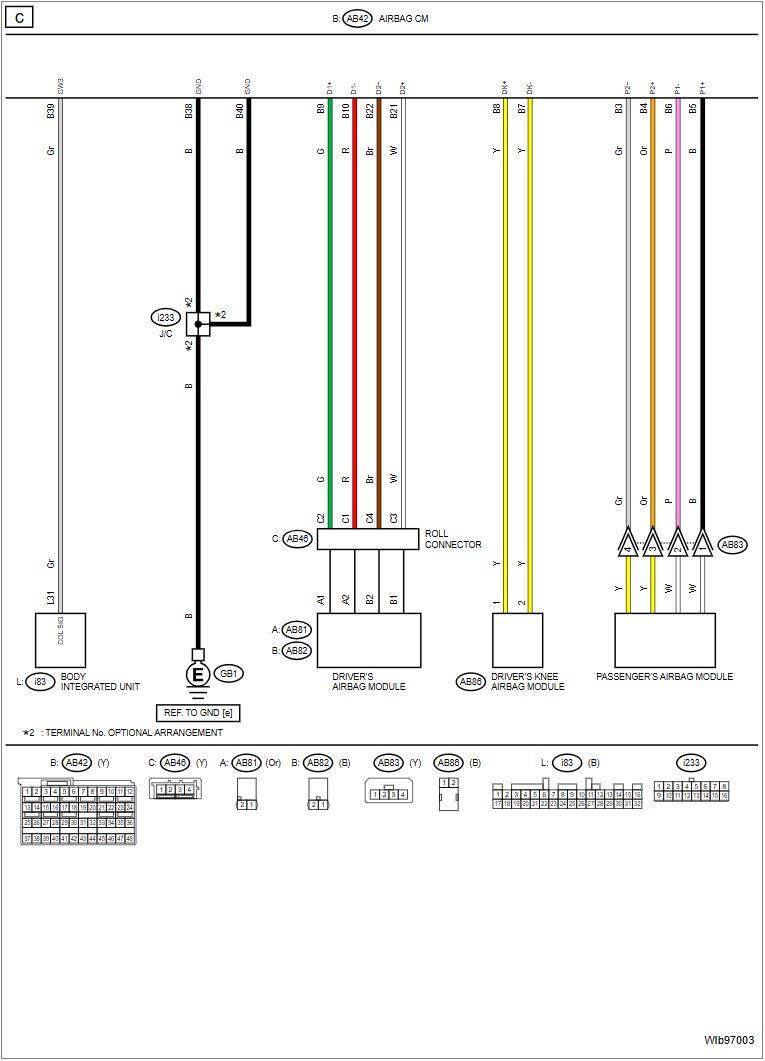

G00687325Courtesy of SUBARU OF AMERICA, INC.

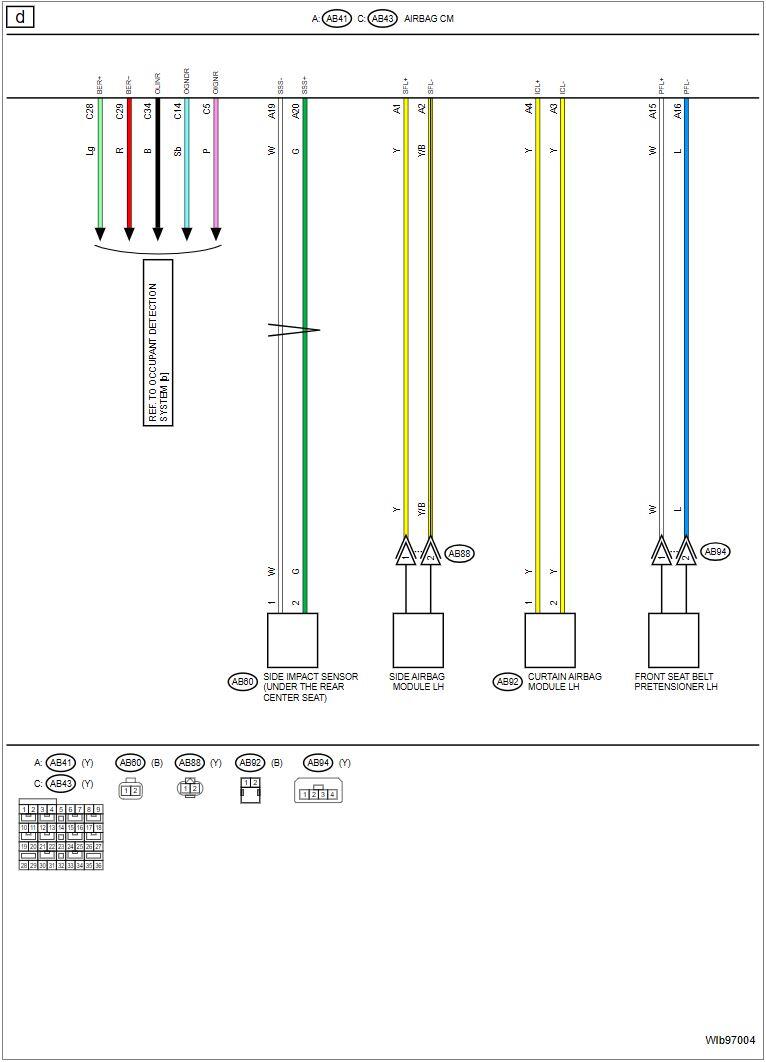

G00687326Courtesy of SUBARU OF AMERICA, INC.

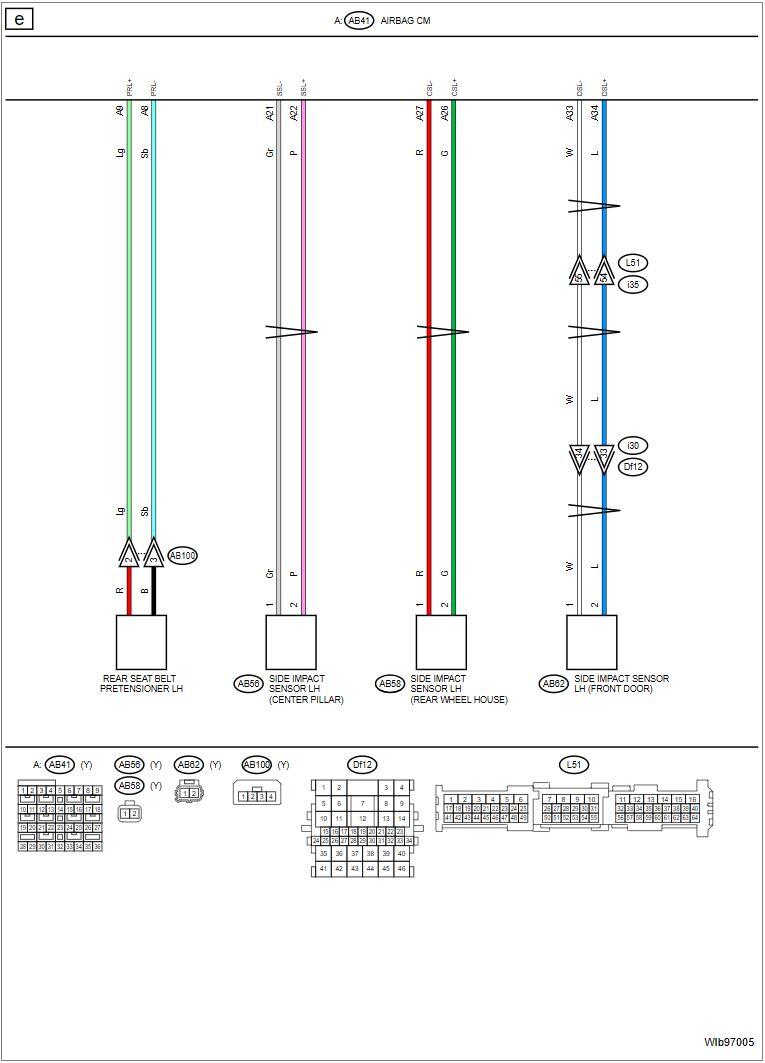

G00687327Courtesy of SUBARU OF AMERICA, INC.

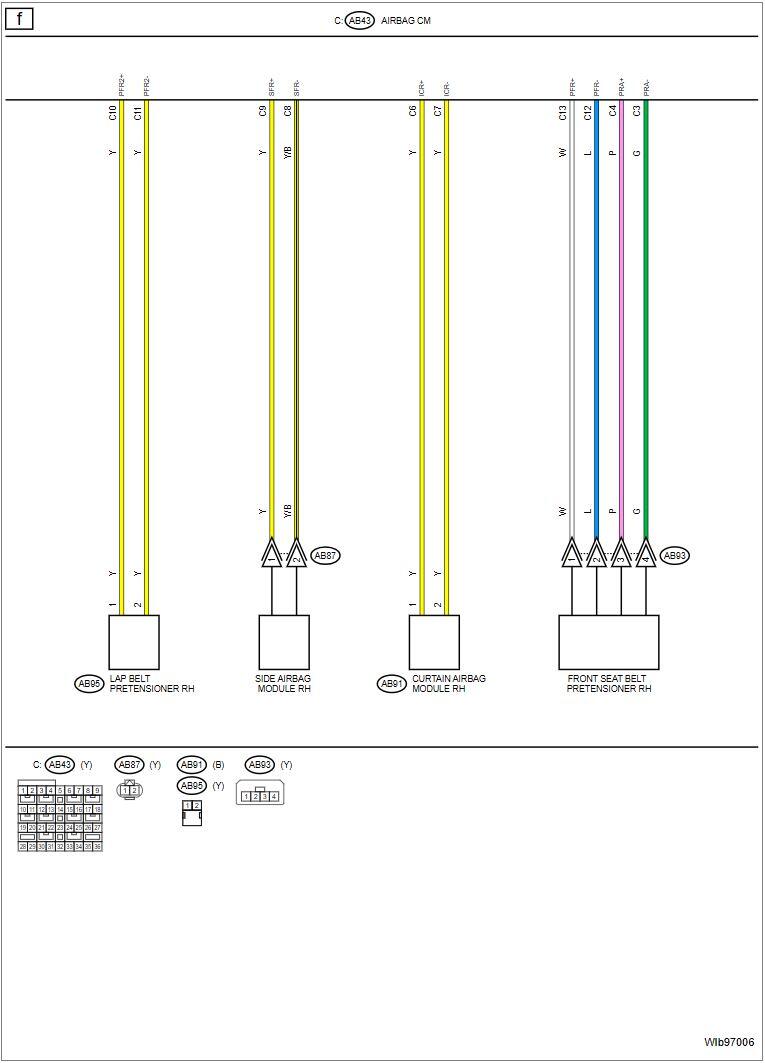

G00687328Courtesy of SUBARU OF AMERICA, INC.

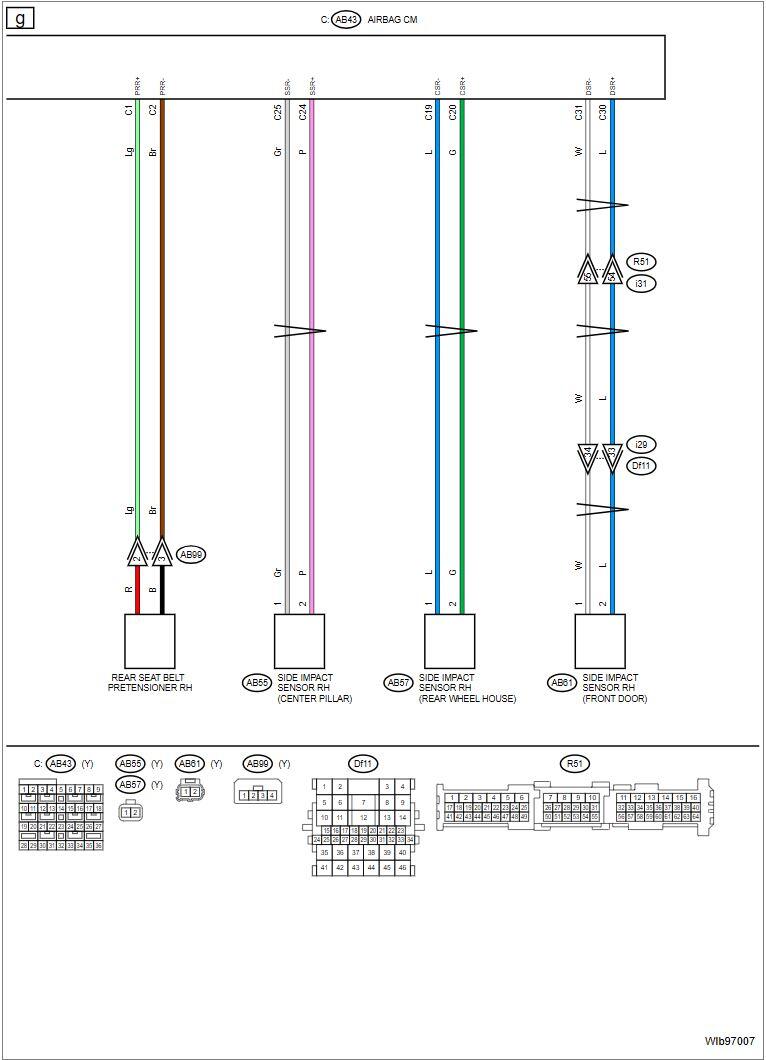

G00687329Courtesy of SUBARU OF AMERICA, INC.
