Front Under Cover: Removal

  1. Lift up the vehicle.
  2. Remove the bolts and clips, and remove the under cover front.
    • H4DO model
      G16387294Courtesy of SUBARU OF AMERICA, INC.

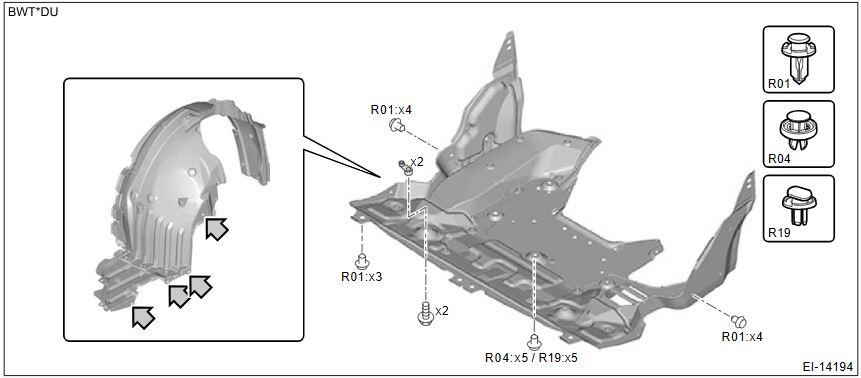

    • H4DOTC model
      G00676468Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolts and remove the under guard front. (H4DOTC model)
    G16387296Courtesy of SUBARU OF AMERICA, INC.
