How To Use Probe
- Passenger's airbag module

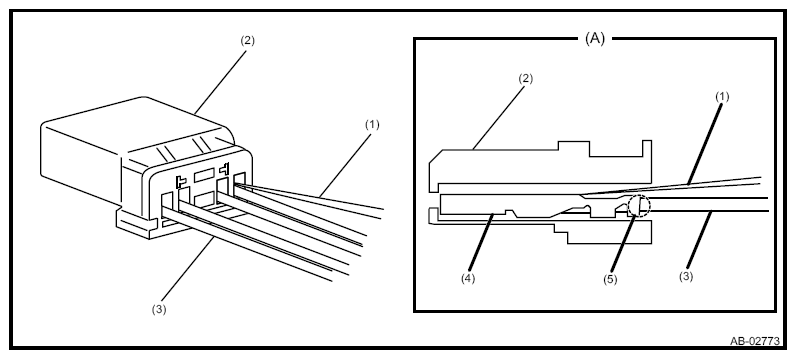

Insert the probe into the harness hole, and contact it with the terminal.
(A) Cross section (1) Probe (2) Connector (housing) (3) Harness (4) Terminal (5) Connection CAUTION:- Do not insert the probe forcibly.
- Be careful not to contact it to the connection (5) between the terminal and harness. (Harness will come off easily from connector.)
- Airbag sensor
Insert the probe into the inspection hole to contact with the terminal.
| (A) | Cross section |
| (1) | Probe |
| (2) | Connector (housing) |
| (3) | Terminal |
| (4) | Inspection hole |
| (5) | Harness |
CAUTION:
- Do not push the probe with excessive force against the terminal. (Terminal will come off easily from housing, otherwise.)
- Do not insert the probe anywhere other than inspection hole. (Waterproof property will be lost, otherwise.)
