Connector & Harness

Route the harness by referring to the following.

• Manual type
  • Driver's seat

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

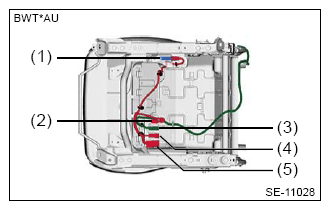

    (1)	Seat position sensor
    (2)	Seat belt connector
    (3)	Side airbag connector
    (4)	Seat position sensor connector
    (5)	Integrated connector

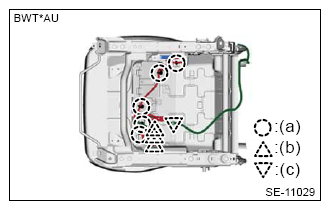

    (a)	Harness clamp A
    (b)	Connector holder
    (c)	Harness holder (panel front wire)

  • Passenger's seat

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

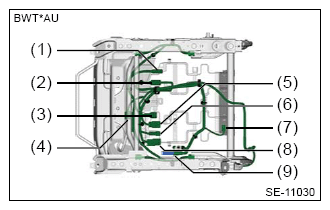

    (1)	Seat belt connector
    (2)	Side airbag connector
    (3)	Occupant detection connector
    (4)	Cushion airbag connector
    (5)	Airbag integrated connector
    (6)	Seat position sensor connector
    (7)	Backrest heater connector (with seat heater)
    (8)	Integrated connector
    (9)	Seat position sensor

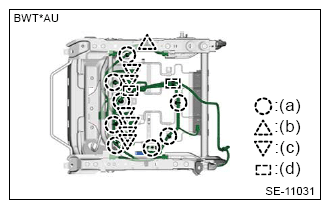

    (a)	Harness clamp A
    (b)	Harness clamp B
    (c)	Connector holder
    (d)	Plastic band

• Power type
  • Driver's seat (10-way)

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

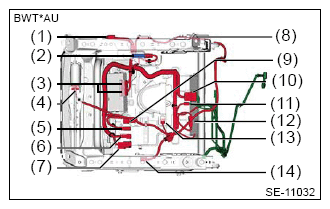

    (1)	Power seat switch connector
    (2)	Seat position sensor
    (3)	Seat position memory control module connector (with seat position memory)
    (4)	Slide motor connector
    (5)	Side airbag connector
    (6)	Seat position sensor connector
    (7)	Integrated connector
    (8)	Lifter motor connector
    (9)	Seat belt connector
    (10)	Backrest integrated connector
    (11)	Backrest heater connector (with seat heater)
    (12)	Seat heater connector (with seat heater)
    (13)	Seat ventilation connector (with seat ventilation)
    (14)	Tilt motor connector

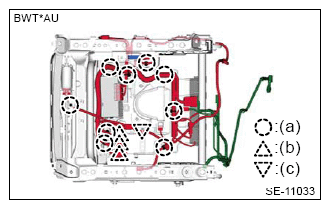

    (a)	Harness clamp A
    (b)	Connector holder
    (c)	Harness holder (panel front wire)

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

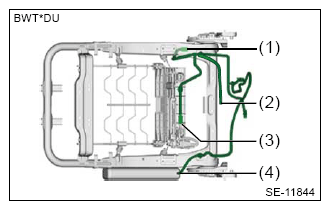

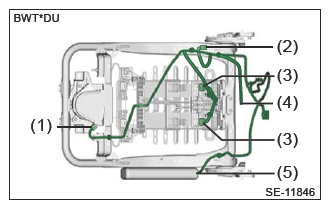

    (1)	Reclining motor harness connector
    (2)	Backrest heater
    (3)	Lumbar motor connector
    (4)	Side airbag module

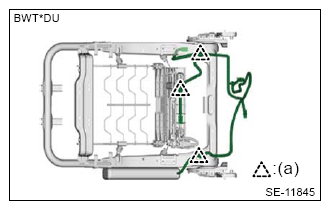

    (a)	Harness clamp A

  • Driver's seat (12-way)

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

    (1)	Power seat switch connector
    (2)	Seat position sensor
    (3)	Seat position memory control module connector (with seat position memory)
    (4)	Slide motor connector
    (5)	Side airbag connector
    (6)	Seat position sensor connector
    (7)	Integrated connector
    (8)	Lifter motor connector
    (9)	Seat belt connector
    (10)	Backrest integrated connector
    (11)	Backrest heater connector (with seat heater)
    (12)	Seat heater connector (with seat heater)
    (13)	Seat ventilation connector (with seat ventilation)
    (14)	Tilt motor connector
    (a)	Harness clamp A
    (b)	Connector holder
    (c)	Harness holder (panel front wire)

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

    (1)	Seat ventilation connector (with seat ventilation)
    (2)	Reclining motor harness connector
    (3)	Lumbar motor connector
    (4)	Backrest heater
    (5)	Side airbag module

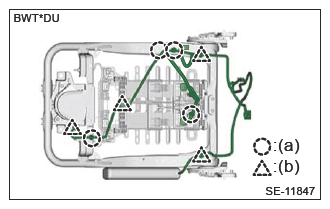

    (a)	Harness clamp A
    (b)	Harness clamp B

  • Passenger's seat

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

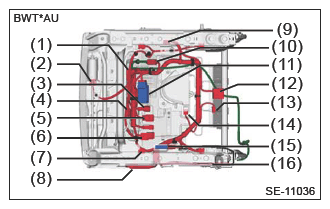

    (1)	Seat belt connector
    (2)	Slide motor connector
    (3)	Occupant detection connector
    (4)	Cushion airbag connector
    (5)	Airbag integrated connector
    (6)	Seat position sensor connector
    (7)	Integrated connector
    (8)	Power seat switch connector
    (9)	Tilt motor connector
    (10)	Side airbag connector
    (11)	Seat ventilation control module
    (12)	Backrest integrated connector
    (13)	Backrest heater connector (with seat heater)
    (14)	Seat ventilation connector (with seat ventilation)
    (15)	Seat position sensor
    (16)	Lifter motor connector

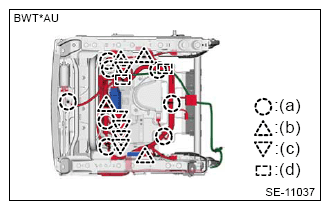

    (a)	Harness clamp A
    (b)	Harness clamp B
    (c)	Connector holder
    (d)	Plastic band
