Side impact sensor (under the rear center seat)

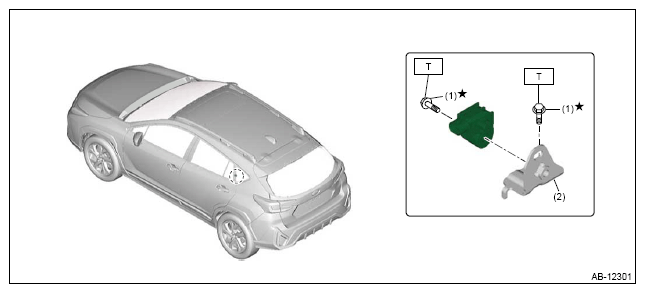

Fig 1: Side Impact Sensor Components Location (Under Rear Center Seat)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Flange bolt
(2)	Bracket sensor

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
