Side impact sensor (rear wheel house)
Side impact sensor (rear wheel house)

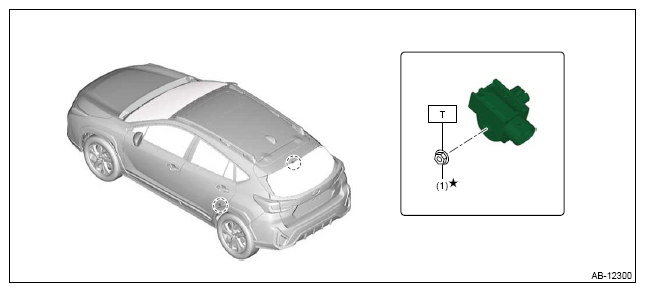

Fig 1: Side Impact Sensor Components Location (Rear Wheel House)
Courtesy of SUBARU OF AMERICA, INC.
(1)
Nut
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
