How To Use Probe
- Passenger's airbag module

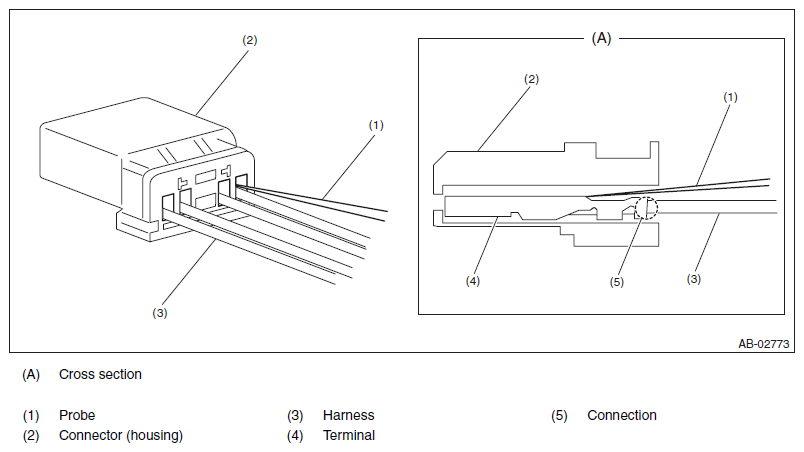

Insert the probe into the harness hole, and contact it with the terminal.
| (A) | Cross section |
| (1) | Probe |
| (2) | Connector (housing) |
| (3) | Harness |
| (4) | Terminal |
| (5) | Connection |
CAUTION:
- Do not insert the probe forcibly.
- Be careful not to contact it to the connection (5) between the terminal and harness. (Harness will come off easily from connector.)
