Telematics System: Wiring Diagram

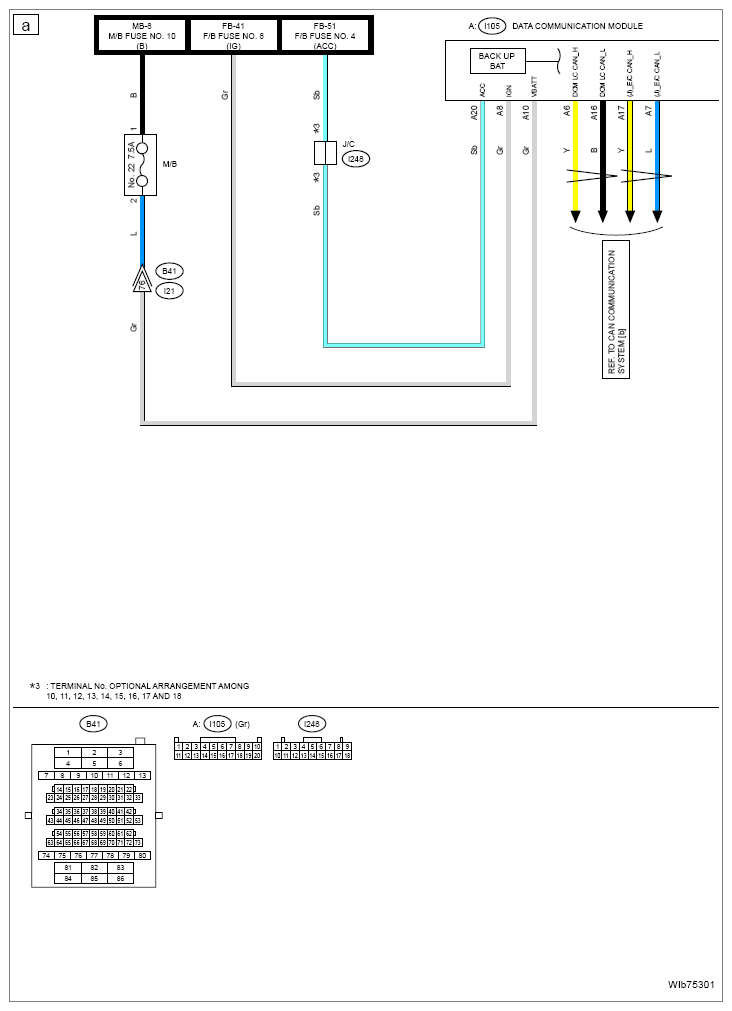

G16764720Courtesy of SUBARU OF AMERICA, INC.

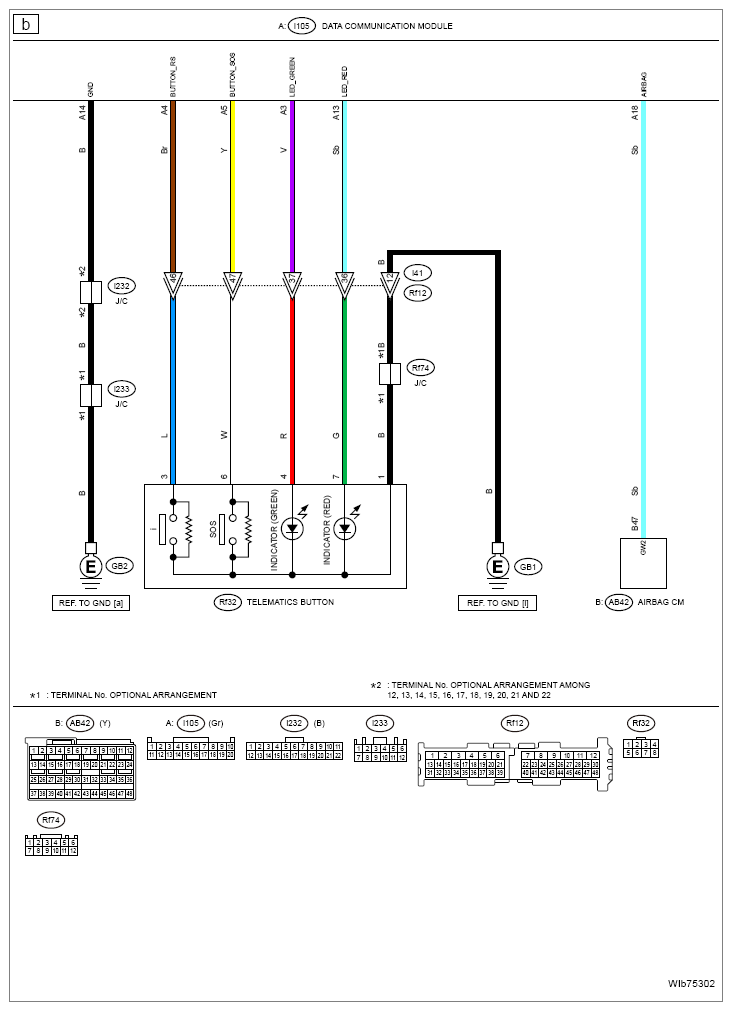

G16764721Courtesy of SUBARU OF AMERICA, INC.

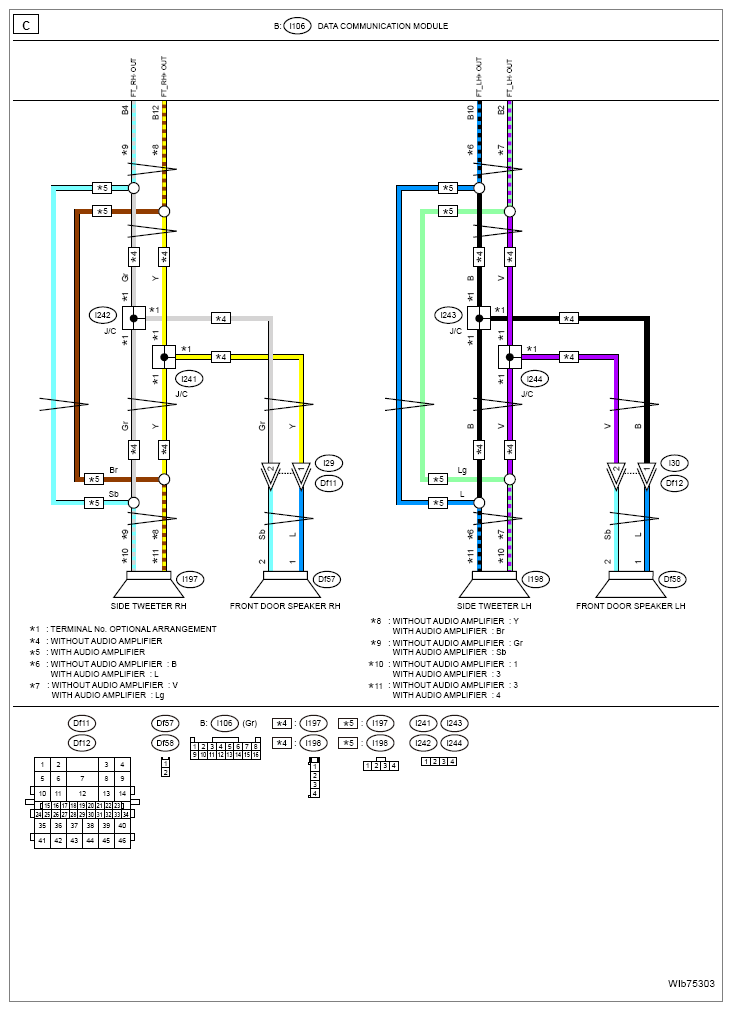

G16764722Courtesy of SUBARU OF AMERICA, INC.

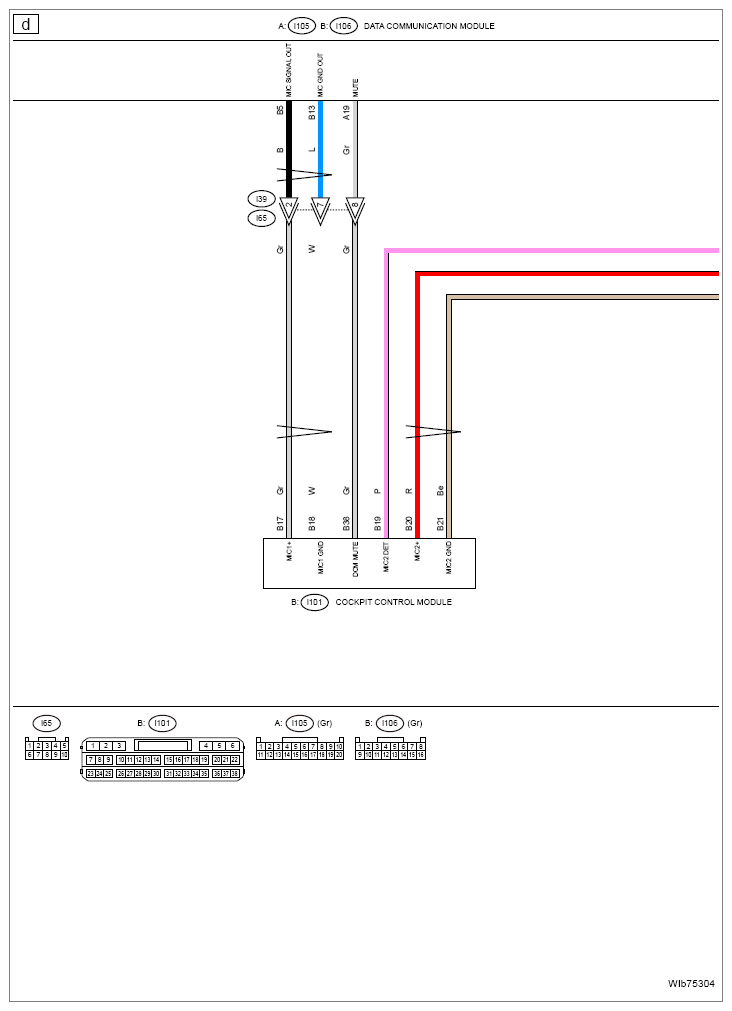

G16764723Courtesy of SUBARU OF AMERICA, INC.

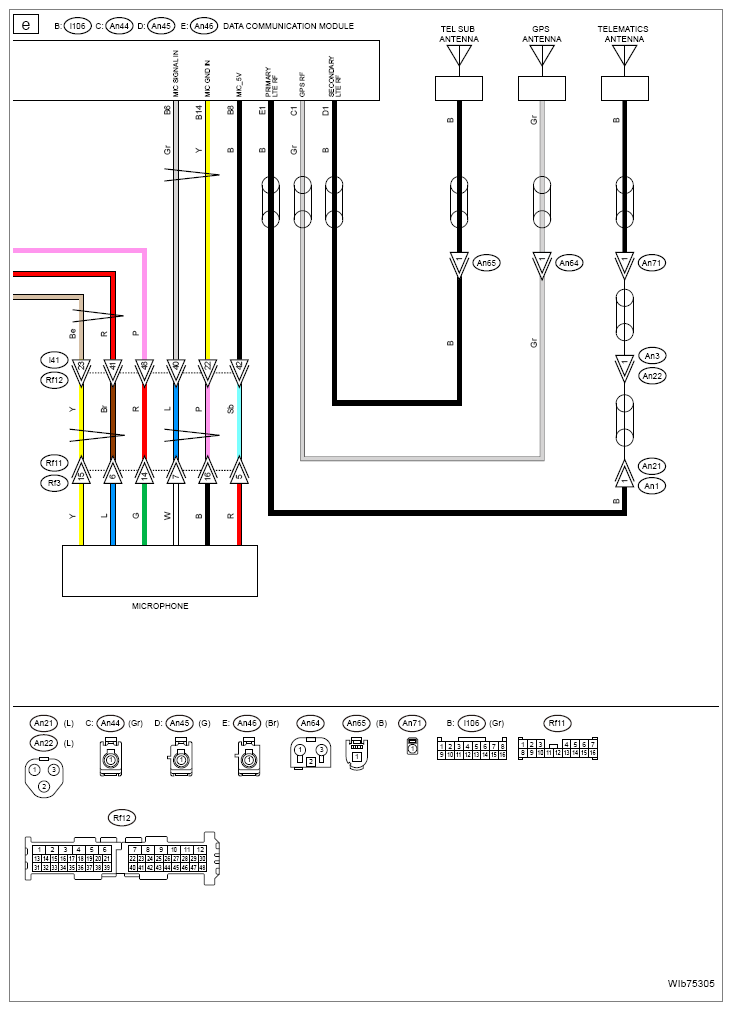

G16764724Courtesy of SUBARU OF AMERICA, INC.
