Rearview Camera System: Wiring Diagram

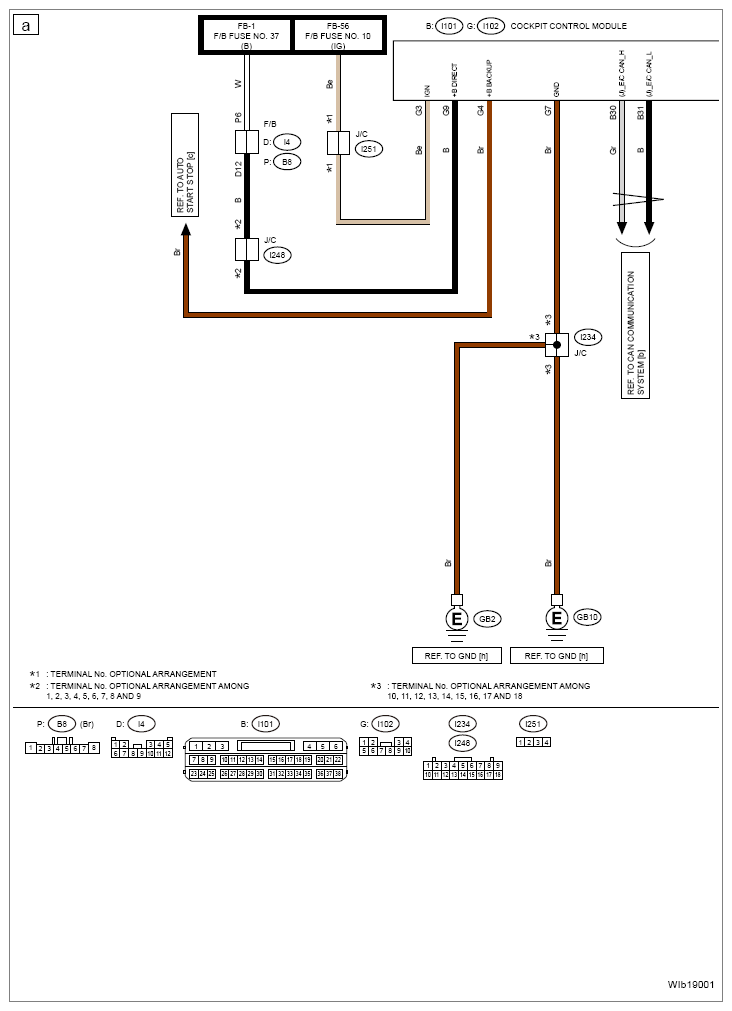

G16764689

Courtesy of SUBARU OF AMERICA, INC.

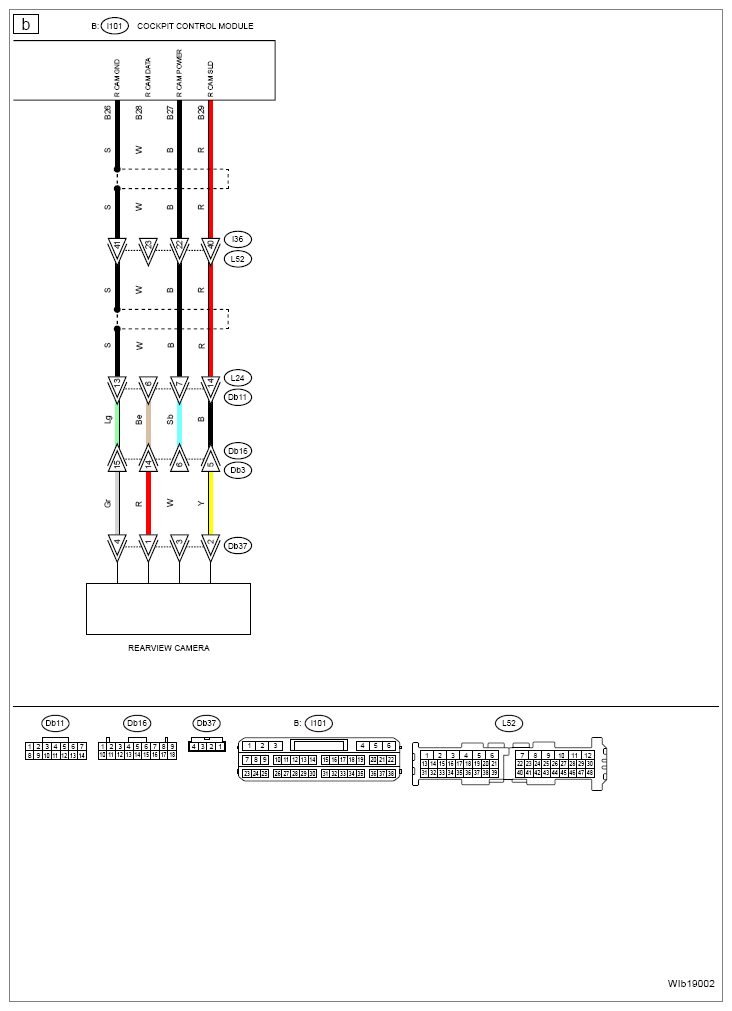

G16764690

Courtesy of SUBARU OF AMERICA, INC.
