Headlight System: Wiring Diagram

G16764643Courtesy of SUBARU OF AMERICA, INC.

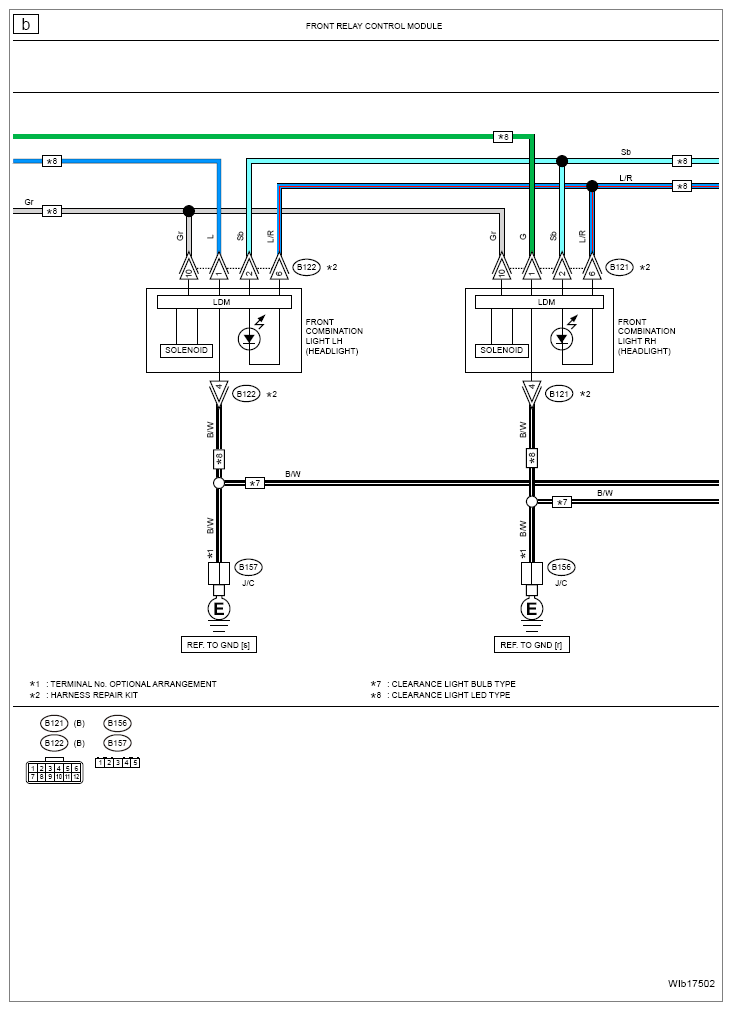

G16764644Courtesy of SUBARU OF AMERICA, INC.

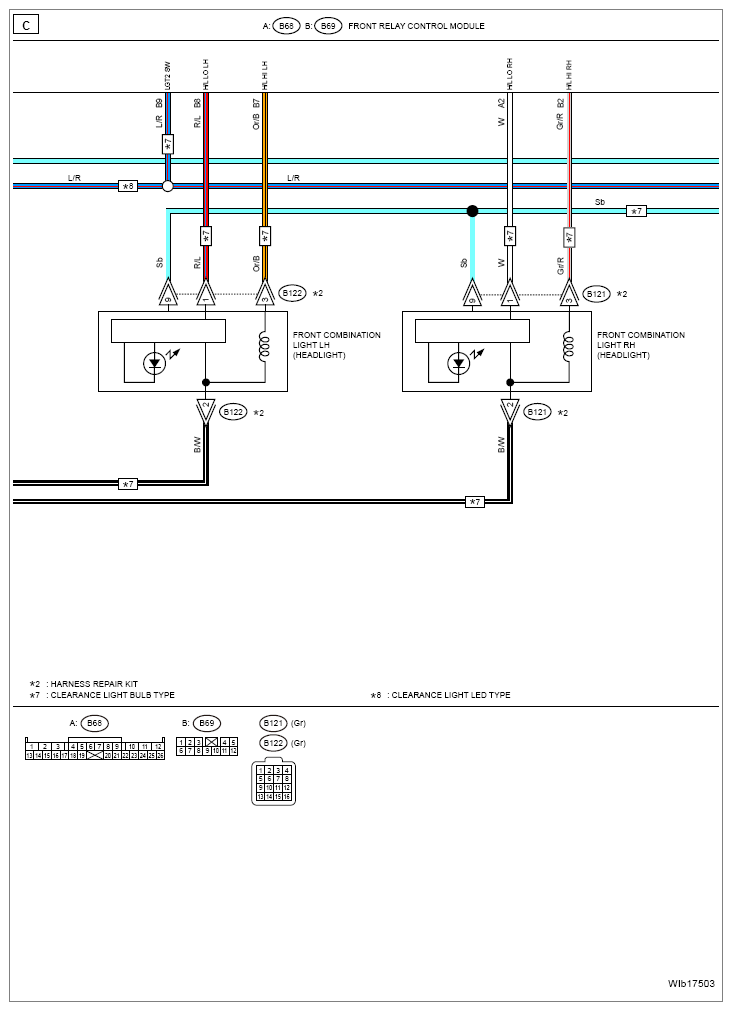

G16764645Courtesy of SUBARU OF AMERICA, INC.

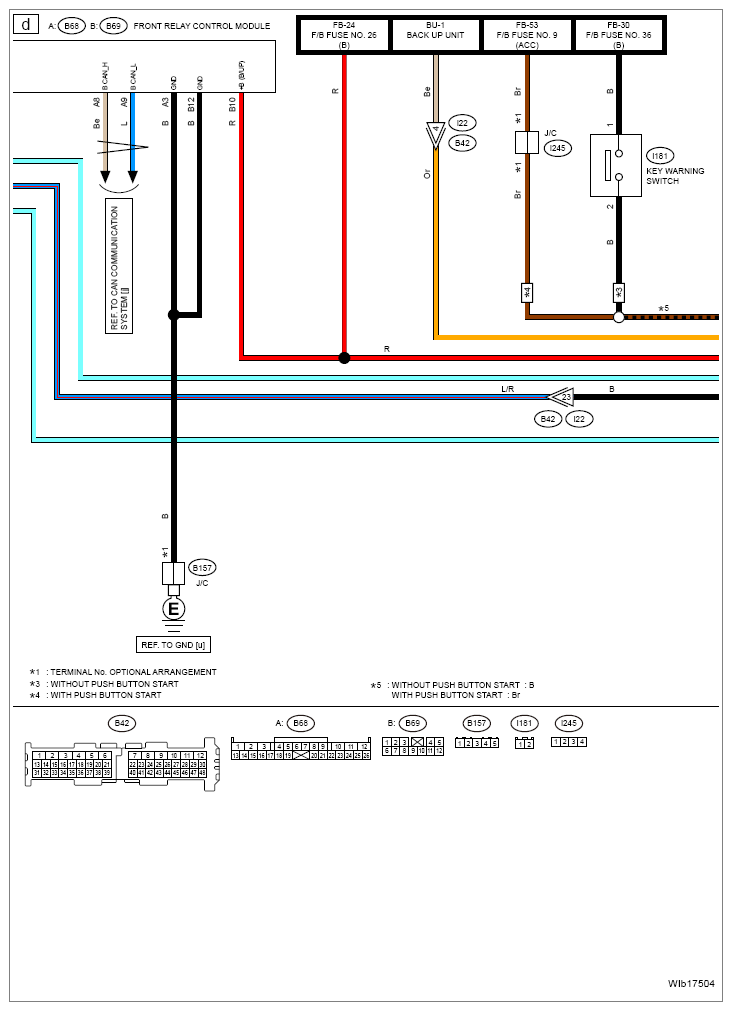

G16764646Courtesy of SUBARU OF AMERICA, INC.

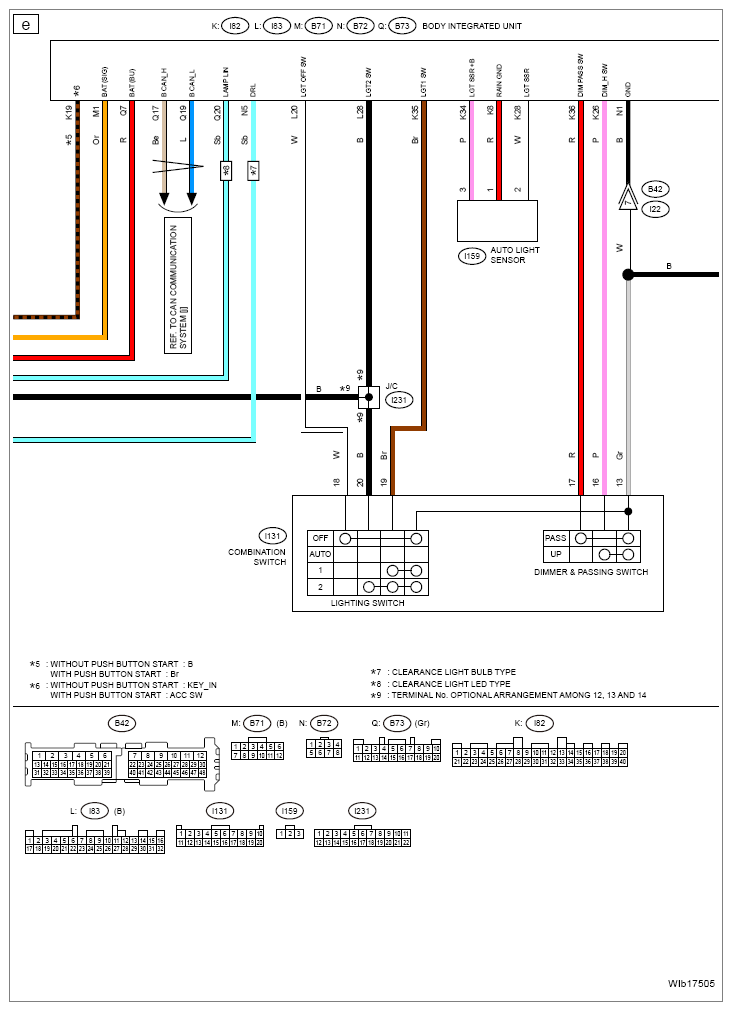

G16764647Courtesy of SUBARU OF AMERICA, INC.
G16764648Courtesy of SUBARU OF AMERICA, INC.
