CVT Control System: Wiring Diagram

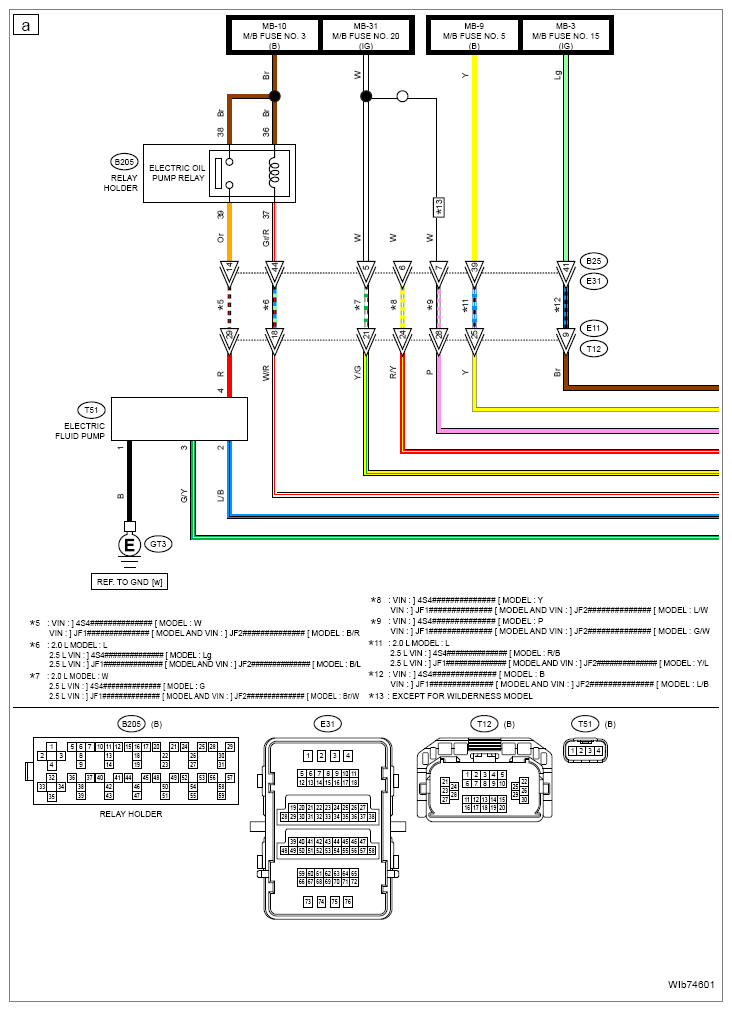

G16764552Courtesy of SUBARU OF AMERICA, INC.

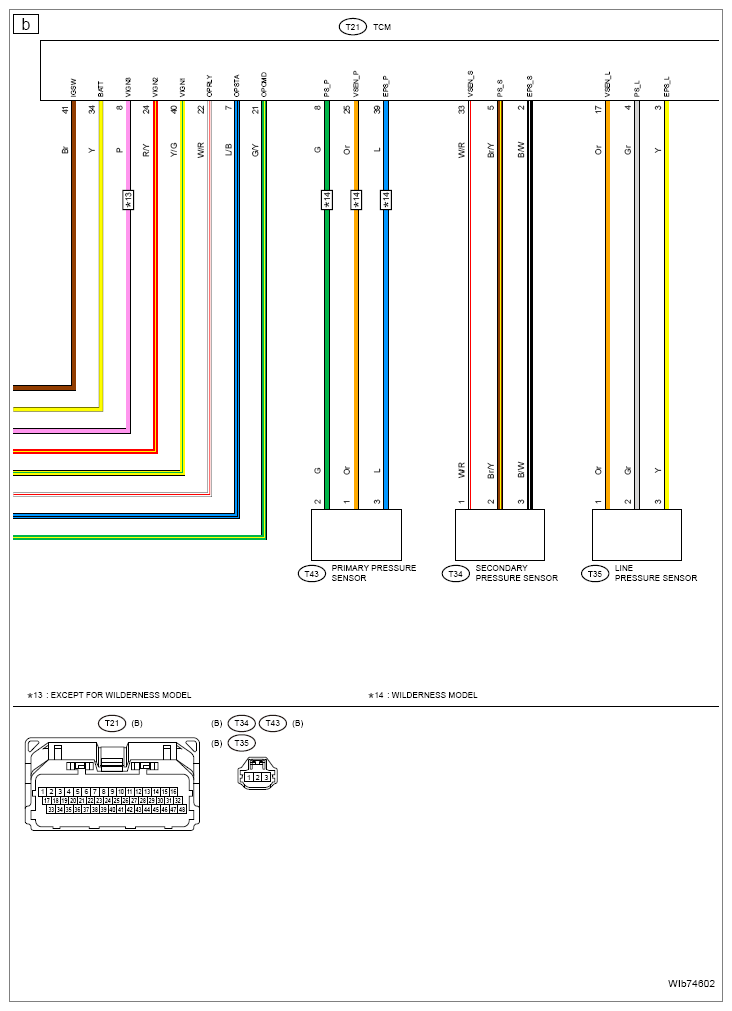

G16764553Courtesy of SUBARU OF AMERICA, INC.

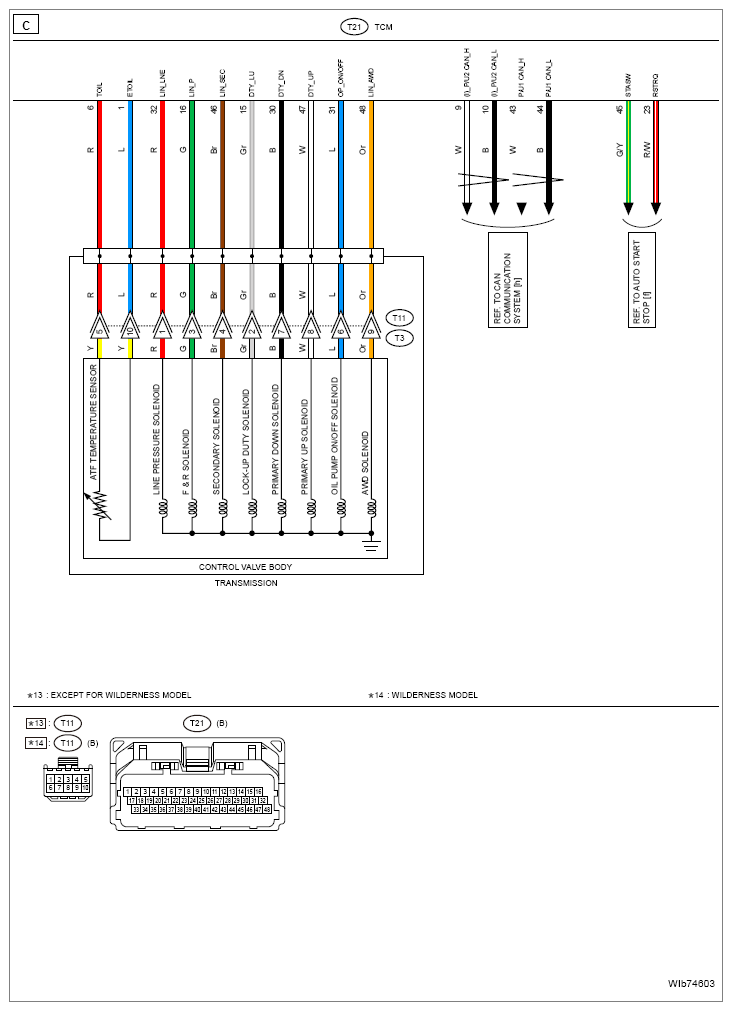

G16764554Courtesy of SUBARU OF AMERICA, INC.

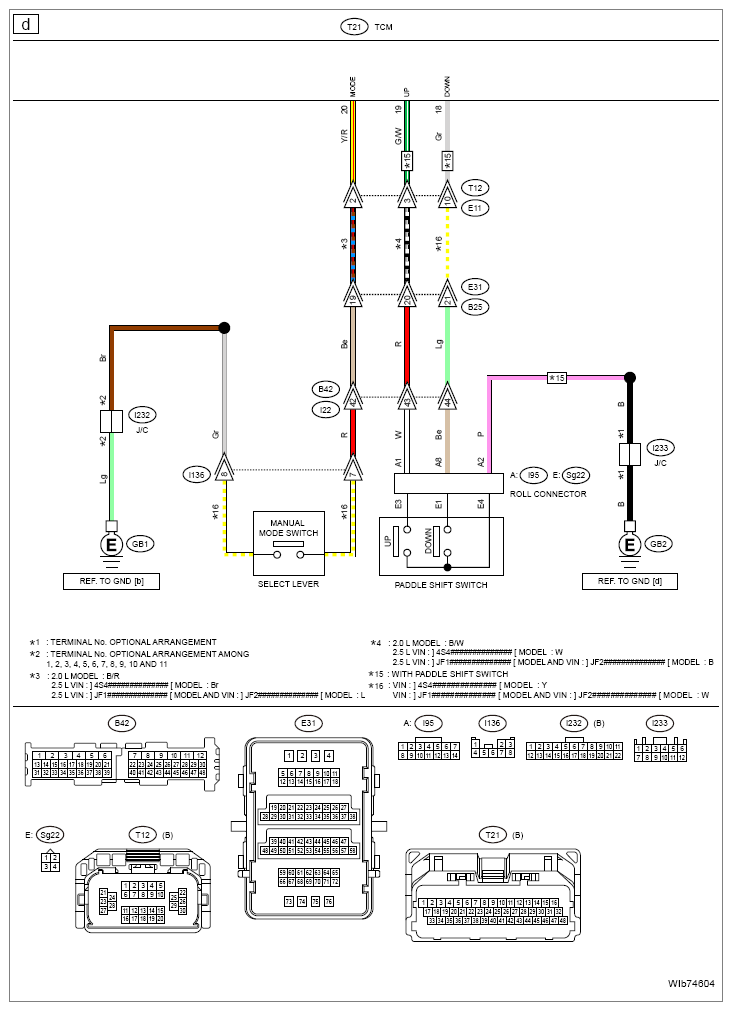

G16764555Courtesy of SUBARU OF AMERICA, INC.

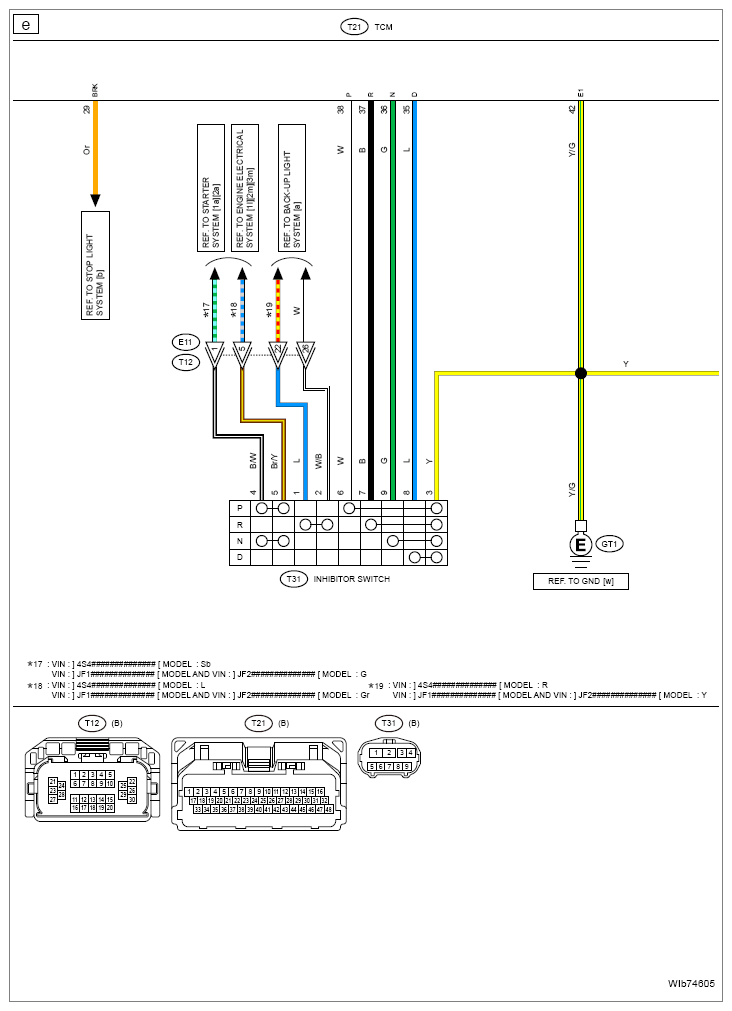

G16764556Courtesy of SUBARU OF AMERICA, INC.

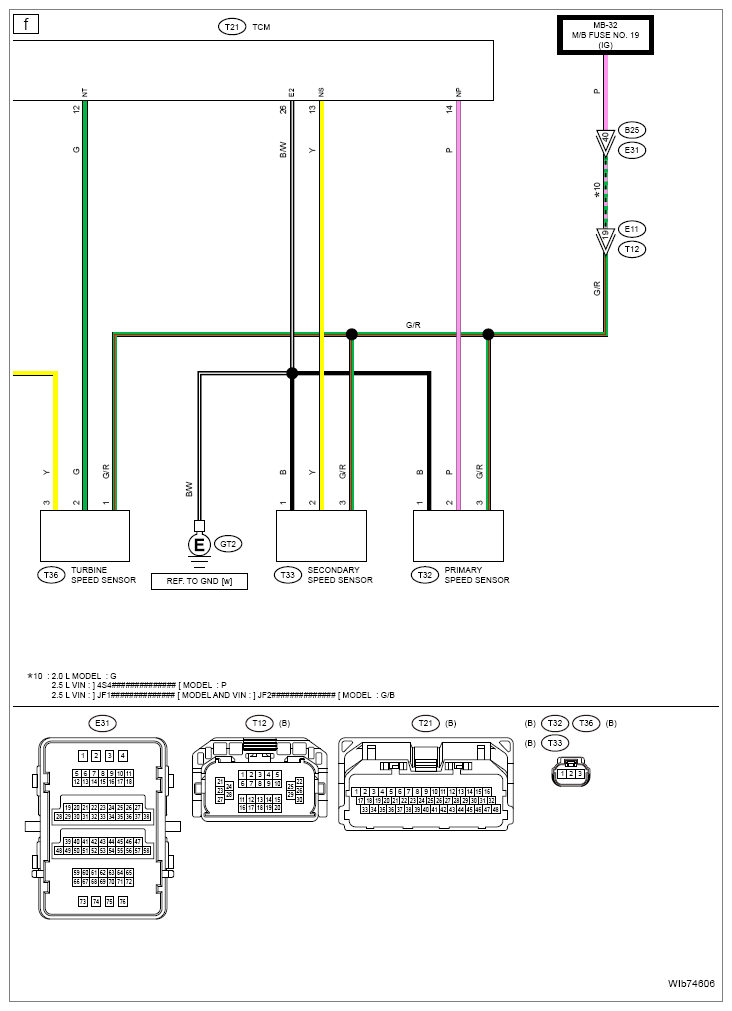

G16764557Courtesy of SUBARU OF AMERICA, INC.

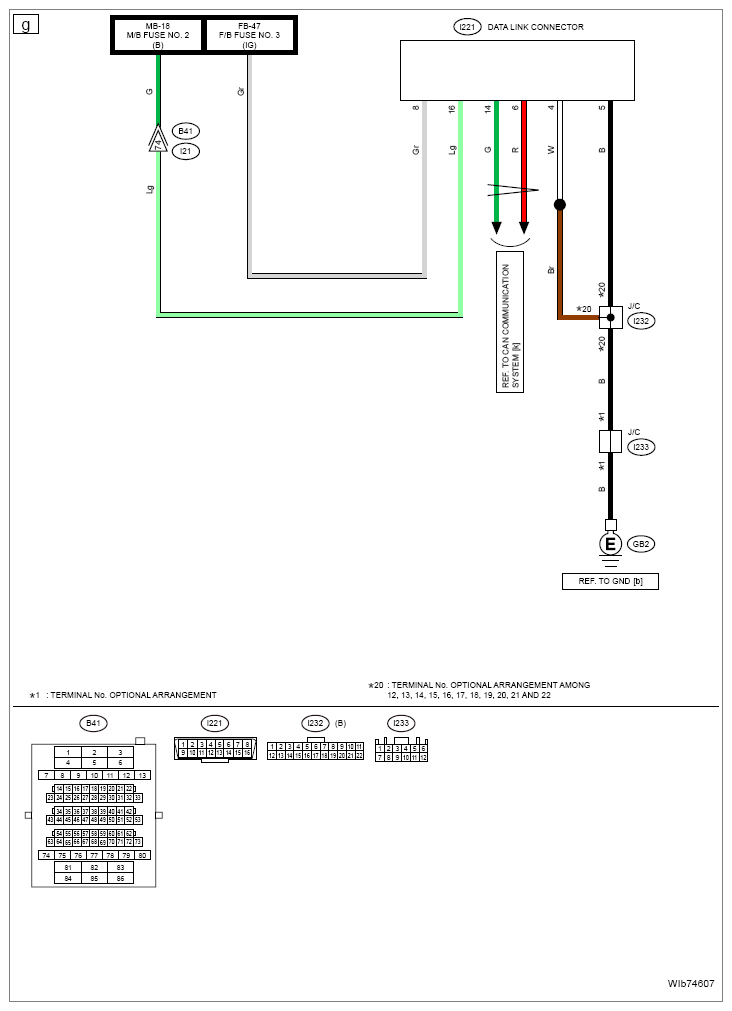

G16764558Courtesy of SUBARU OF AMERICA, INC.
