DTC C1954: RH Actuator

DTC detecting condition:

A fault is detected if mechanical sticking or abnormal operation of the rear brake caliper RH is detected.

Trouble symptom:

Parking brake system does not operate.

Failure detection pattern:

• "Primary" (high-priority diagnosis)

Warning light/indicator light:

The combination of DTC and warning light display may differ from the list depending on vehicle conditions and driving conditions at the time of failure detection.

• ABS warning light -
• VDC warning light & VDC operation indicator light -
• Electronic parking brake warning light (red)◦
• Brake warning light (EBD warning light) (red) -

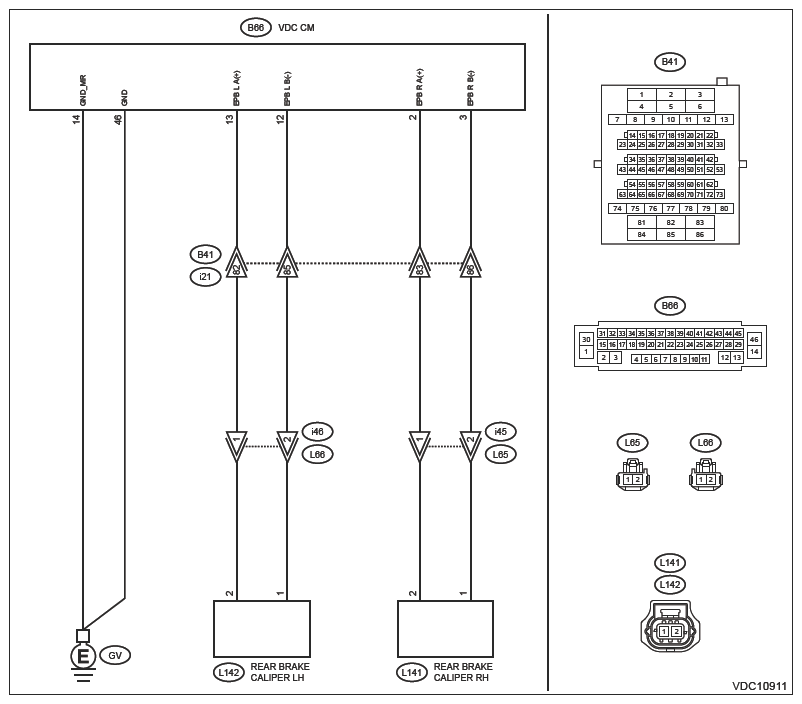

Wiring diagram:

Parking brake/brake fluid level warning light system Ref. to WIRING SYSTEM>PARKING BRAKE/BRAKE FLUID LEVEL WARNING LIGHT SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK HARNESS (CHECK FOR OPEN CIRCUIT)  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connectors from the VDCCM & H/U and rear brake caliper RH.
   3. Measure the resistance between VDCCM & H/U and rear brake caliper RH connector.

      Connector & terminal

      (B66) No. 2 - (L141) No. 2:

      (B66) No. 3 - (L141) No. 1:

   Is the resistance less than 1 Ω?

   Yes:  GO TO  2.

   No:  Repair harness and connector between VDCCM & H/U and rear brake caliper RH connector.

2. CHECK HARNESS (CHECK FOR GROUND SHORT CIRCUIT)  .

   Measure the resistance between the rear brake caliper RH connector and chassis ground.

   Connector & terminal

   (L141) No. 1 - Chassis ground:

   (L141) No. 2 - Chassis ground:

   Is the resistance 1 MΩ or more?

   Yes:  GO TO  3.

   No:  Repair ground short of harness between VDCCM & H/U and rear brake caliper RH connector.

3. CHECK HARNESS (CHECK FOR SHORT CIRCUIT TO POWER SUPPLY)  .
   1. Turn the ignition switch to ON.
   2. Measure the voltage between the rear brake caliper RH connector and chassis ground.

      Connector & terminal

      (L141) No. 1 (+) - Chassis ground (-):

      (L141) No. 2 (+) - Chassis ground (-):

   Is the voltage less than 1 V?

   Yes:  GO TO  4.

   No:  Repair short to power supply of harness between VDCCM & H/U and rear brake caliper RH connector.

4. CHECK POOR CONTACT OF CONNECTORS  .

   Is there poor contact of power supply circuit, ground circuit and VDCCM & H/U connector?

   Yes:  Repair the connector.

   No:  GO TO  5.

5. CHECK REAR BRAKE CALIPER  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connectors from rear brake caliper RH.
   3. Measure the resistance between rear brake caliper RH terminals.

      Terminals

      No. 1 - No. 2:

   Is the resistance less than 100 Ω?

   Yes:  Replace the VDCCM & H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U) .

   No:  Replace the parking brake actuator assembly RH. Ref. to PARKING BRAKE>PARKING BRAKE ACTUATOR .
