Wireless Charger: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the wireless charger assembly.

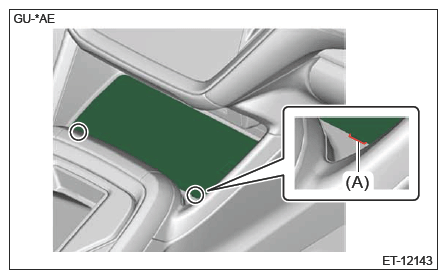

    1. Insert a flat tip screwdriver wrapped with protective tape into the position (A) of the tray assembly center LWR.
      G16767702Courtesy of SUBARU OF AMERICA, INC.

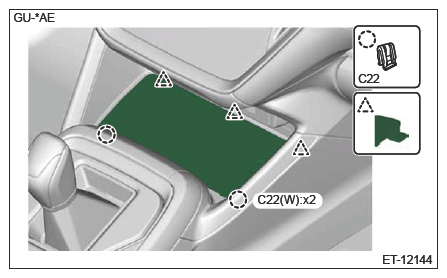

    2. Release the clips and hooks.
      G16767703Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector.
    4. Remove the wireless charger assembly.
