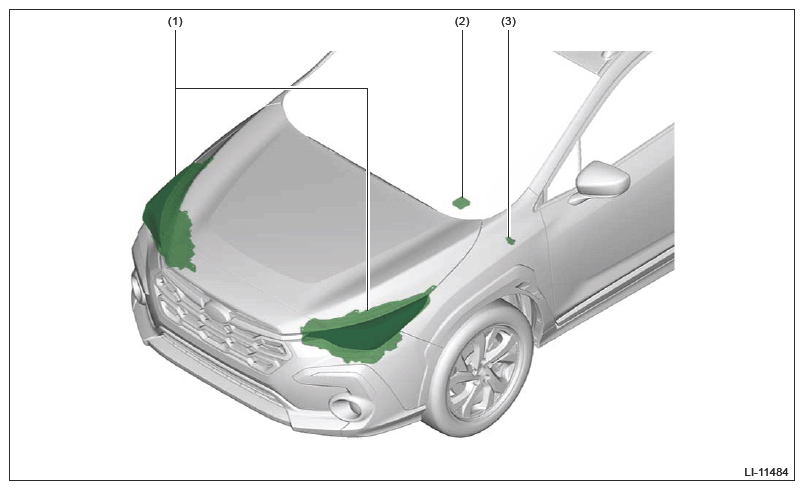

Exterior Lights (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

(1)

Headlight ASSY

(2)

Auto headlight beam leveler control module

(3)

Data link connector

⁽¹⁾	Auto leveler model

NOTE: For the CAN communication system, refer to the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION .
