Vehicle Dynamics Control System: Wiring Diagram

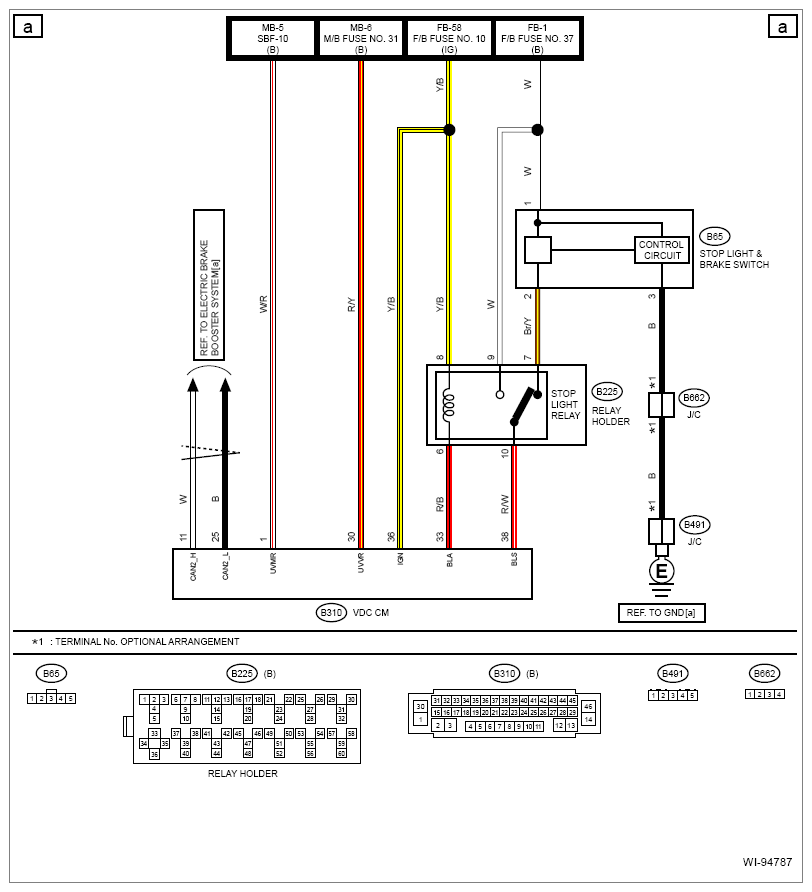

G16340120

Courtesy of SUBARU OF AMERICA, INC.

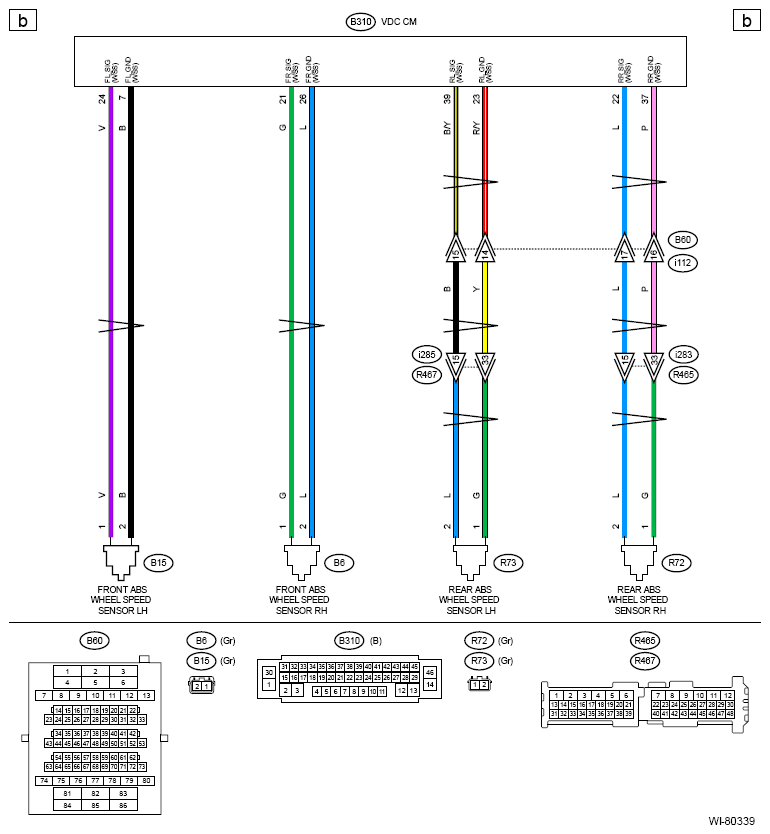

G13227563

Courtesy of SUBARU OF AMERICA, INC.

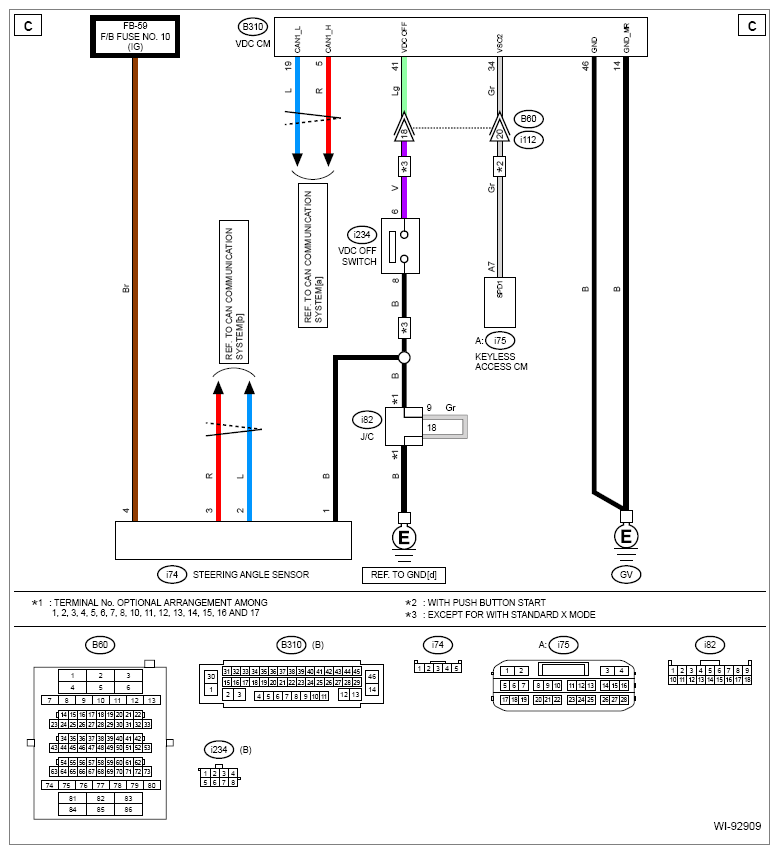

G14411949

Courtesy of SUBARU OF AMERICA, INC.
