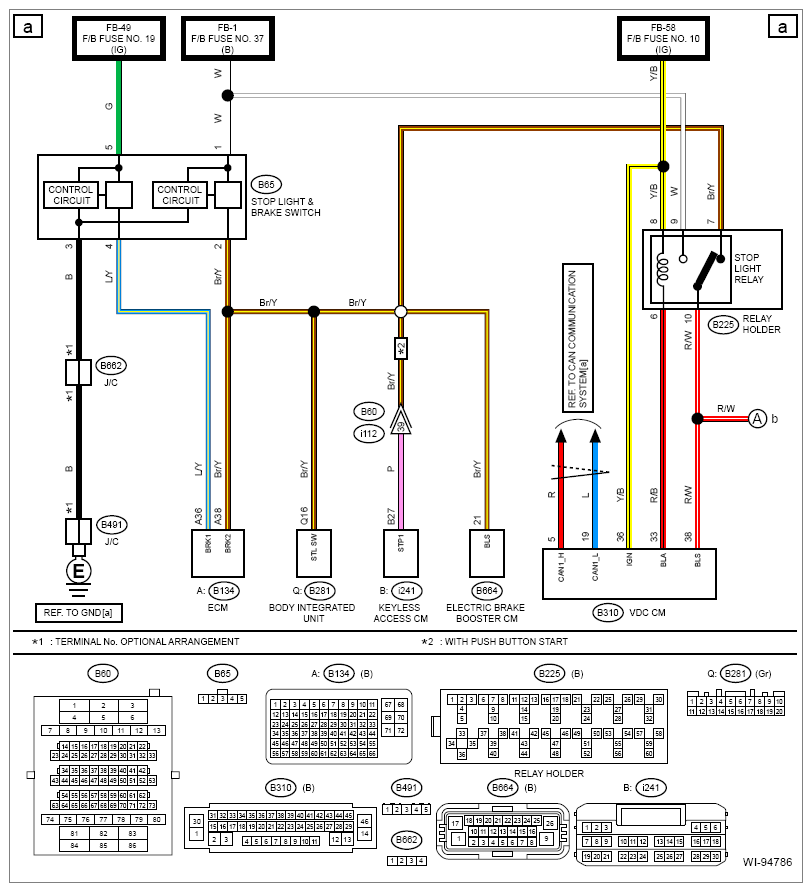

Stop Light System: Wiring Diagram

G16340107

Courtesy of SUBARU OF AMERICA, INC.

G13227550

Courtesy of SUBARU OF AMERICA, INC.
