Power Rear Gate System: Wiring Diagram

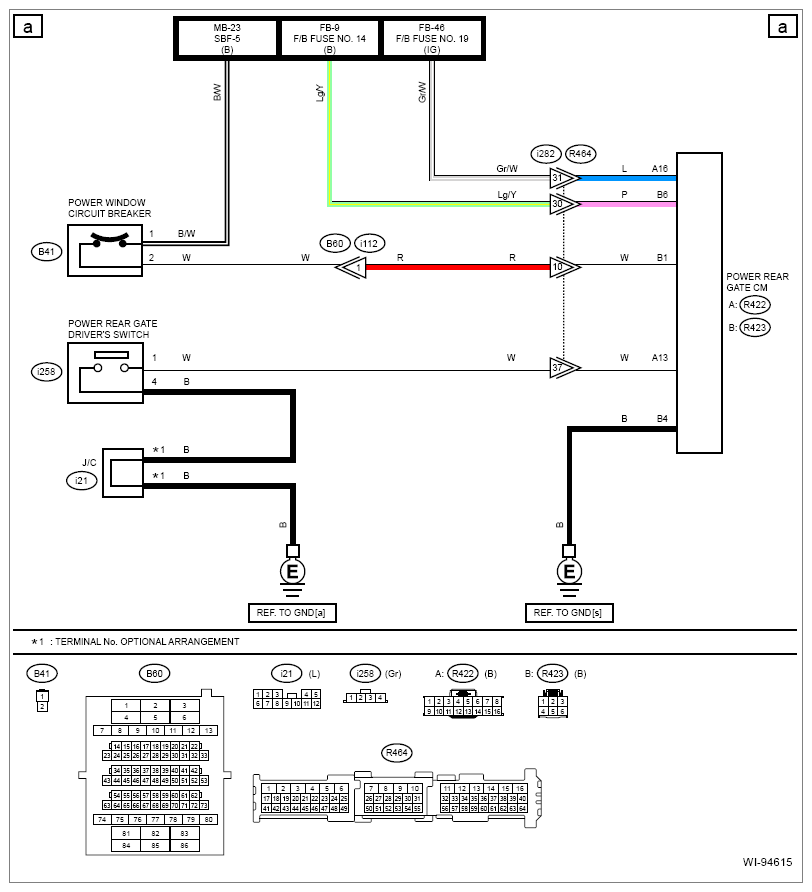

G16446021

Courtesy of SUBARU OF AMERICA, INC.

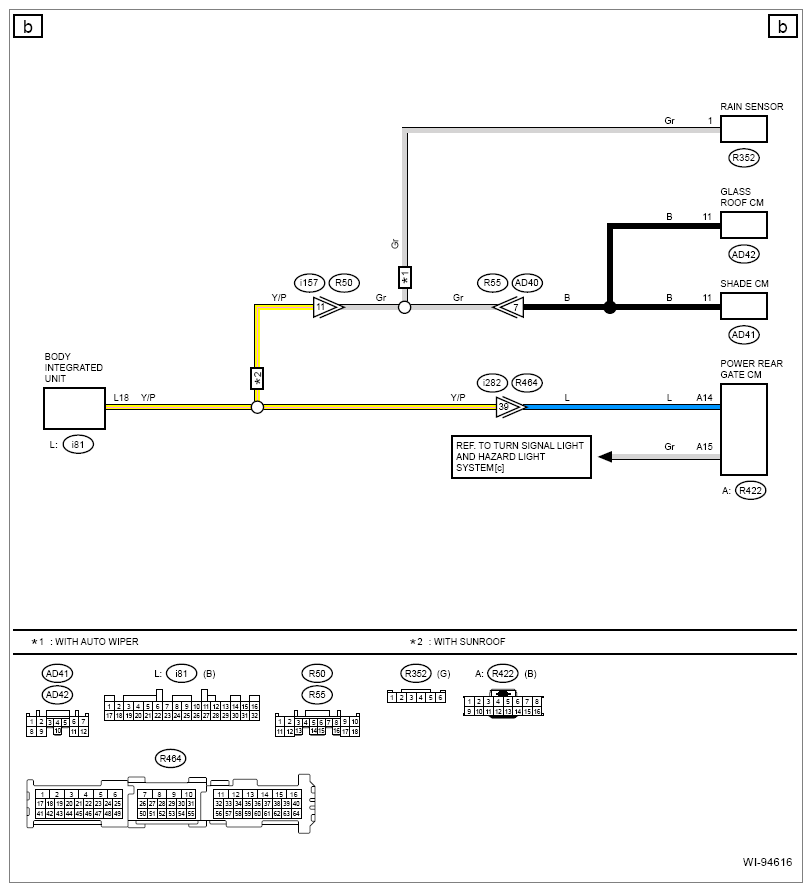

G16446022

Courtesy of SUBARU OF AMERICA, INC.

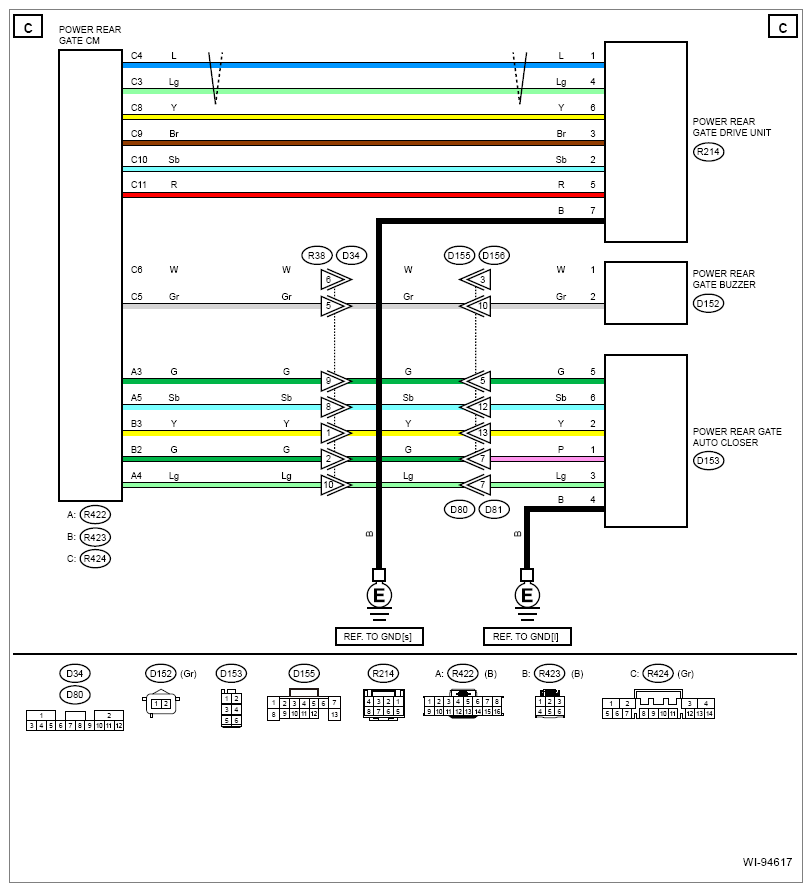

G16446023

Courtesy of SUBARU OF AMERICA, INC.

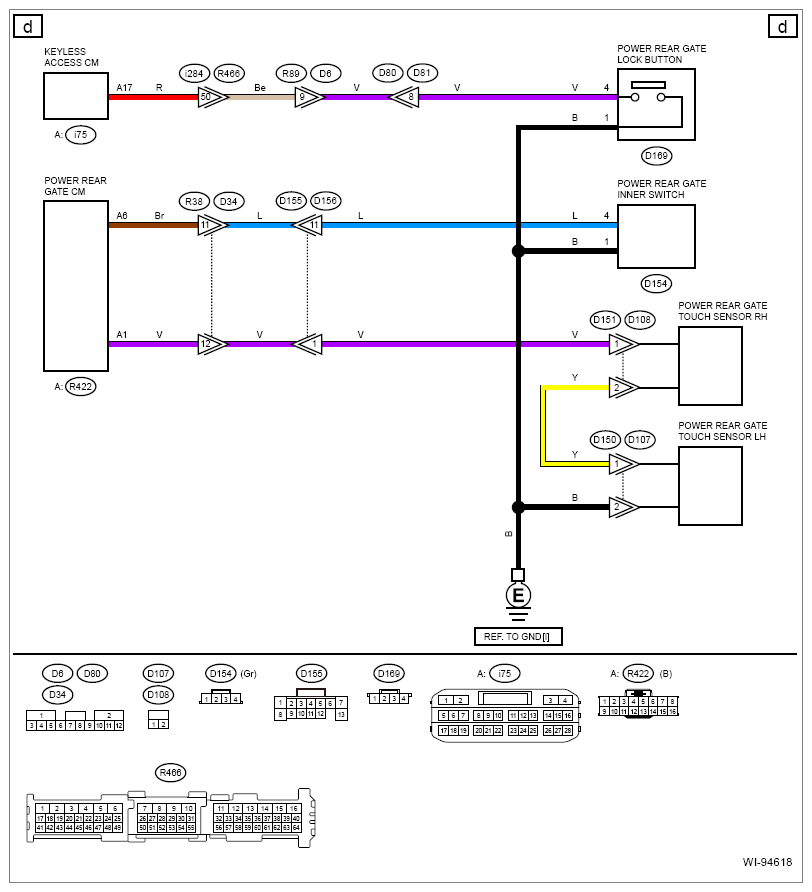

G16446024

Courtesy of SUBARU OF AMERICA, INC.
