Keyless Access With Push Button Start System: Wiring Diagram

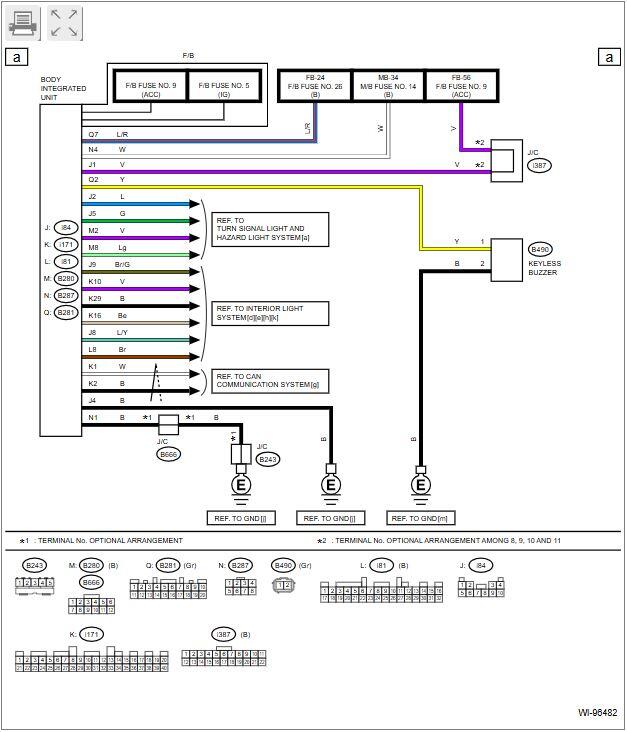

G00679794

Courtesy of SUBARU OF AMERICA, INC.

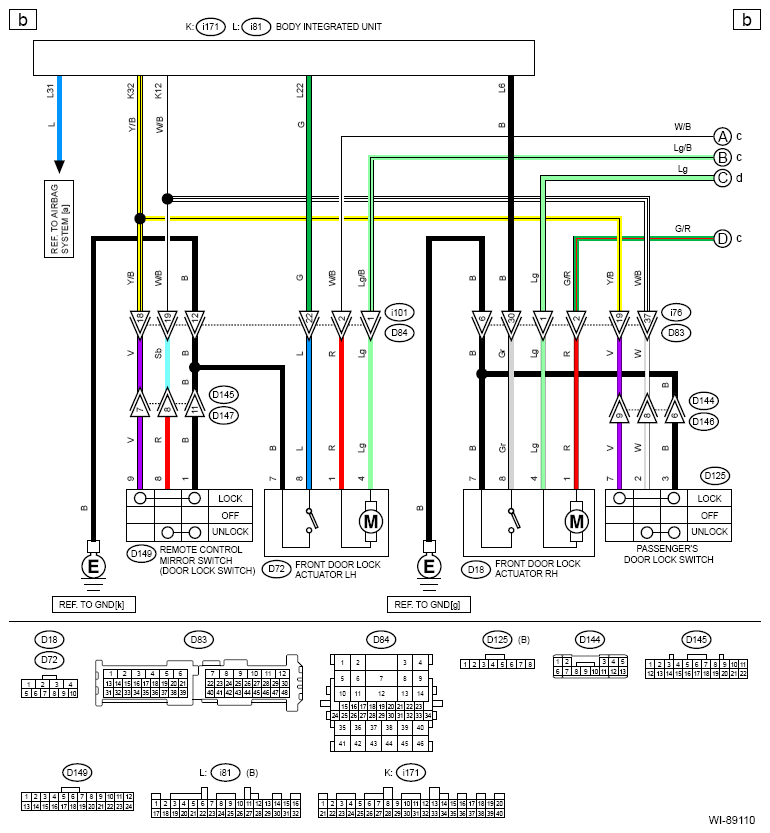

G13865972

Courtesy of SUBARU OF AMERICA, INC.

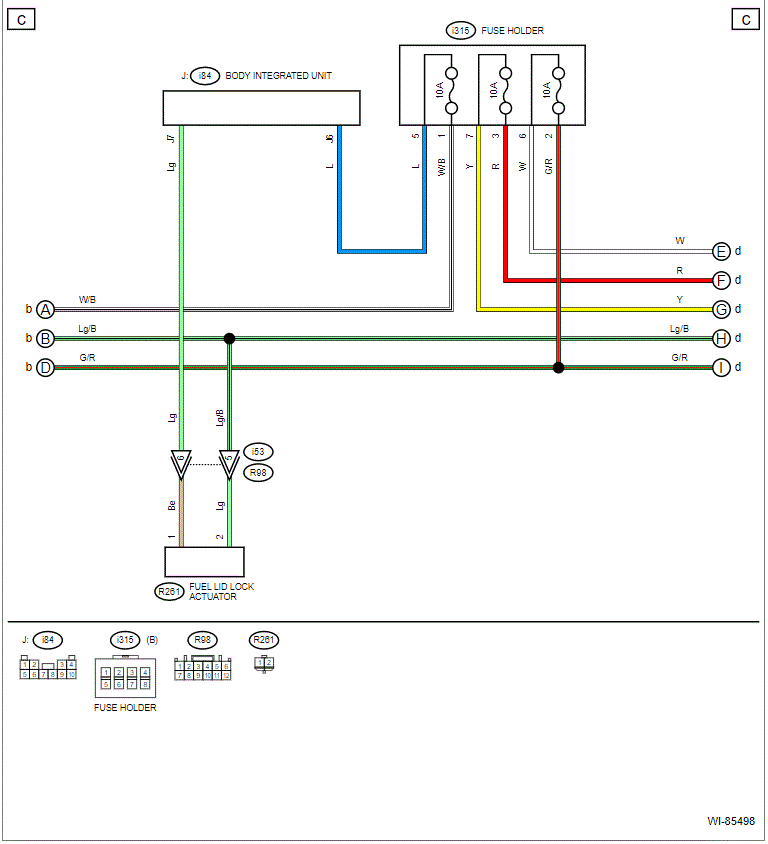

G13865973

Courtesy of SUBARU OF AMERICA, INC.

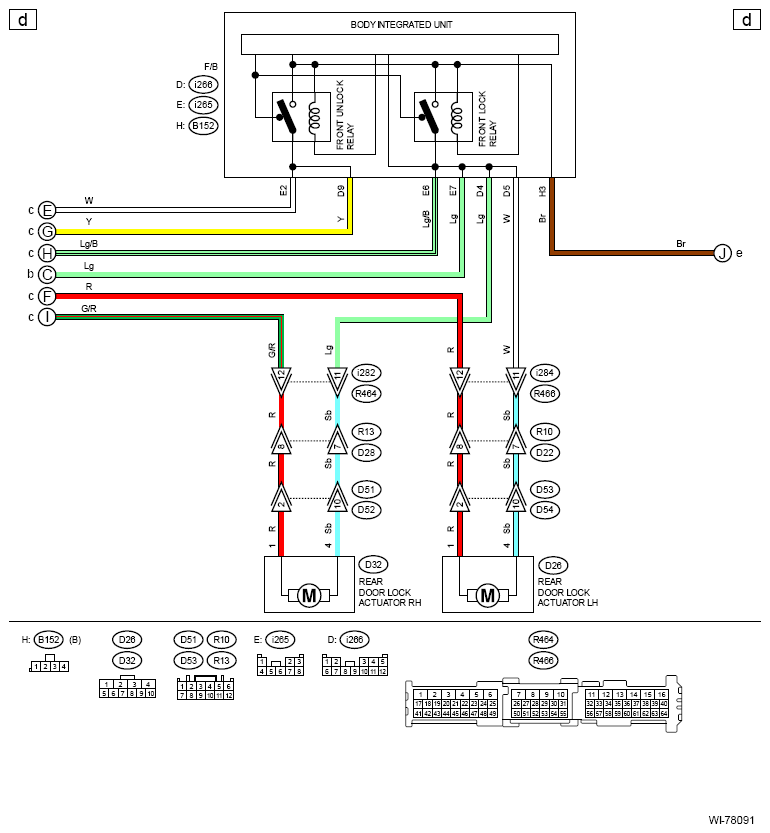

G13202116

Courtesy of SUBARU OF AMERICA, INC.

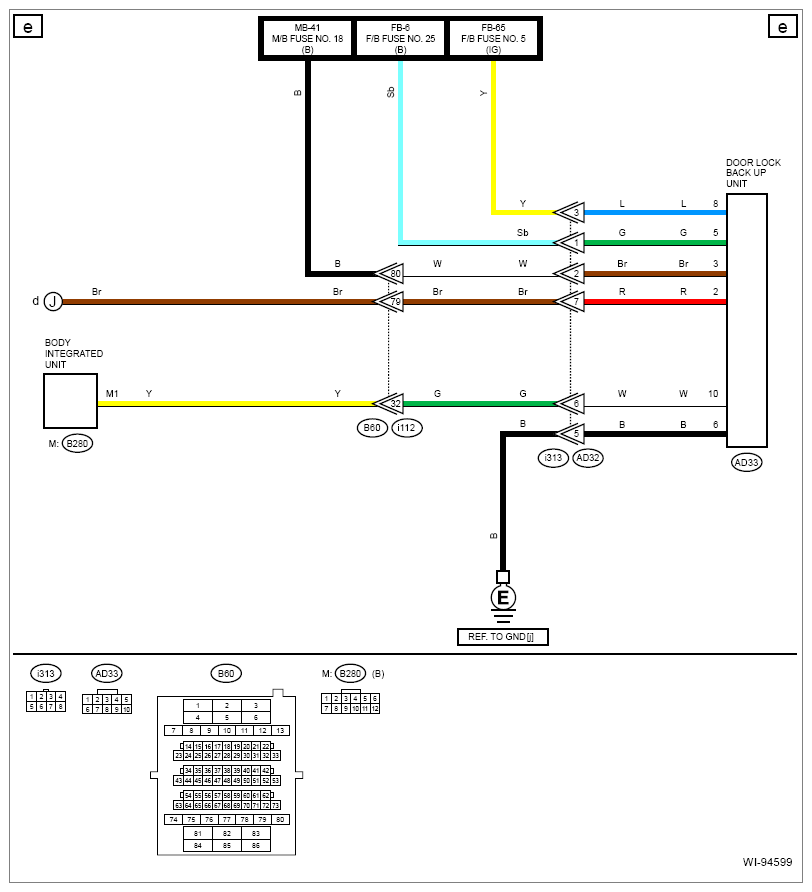

G16445999

Courtesy of SUBARU OF AMERICA, INC.

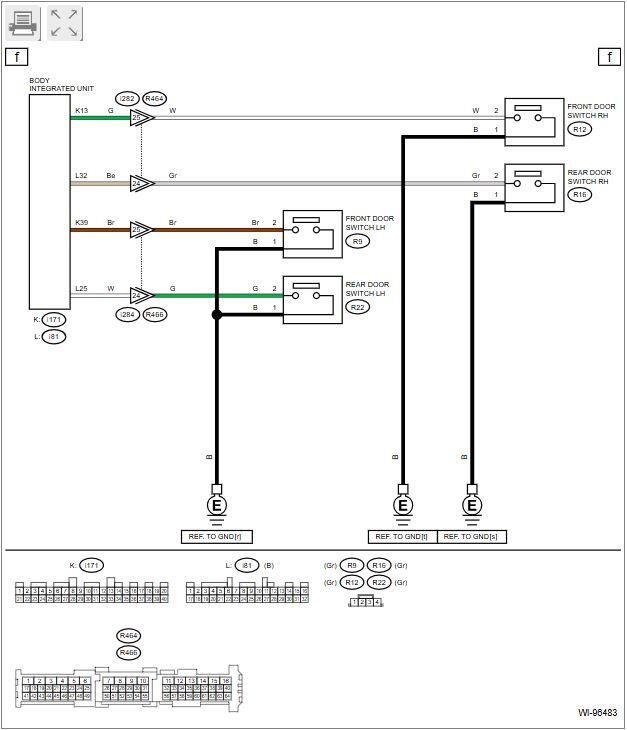

G00679795

Courtesy of SUBARU OF AMERICA, INC.

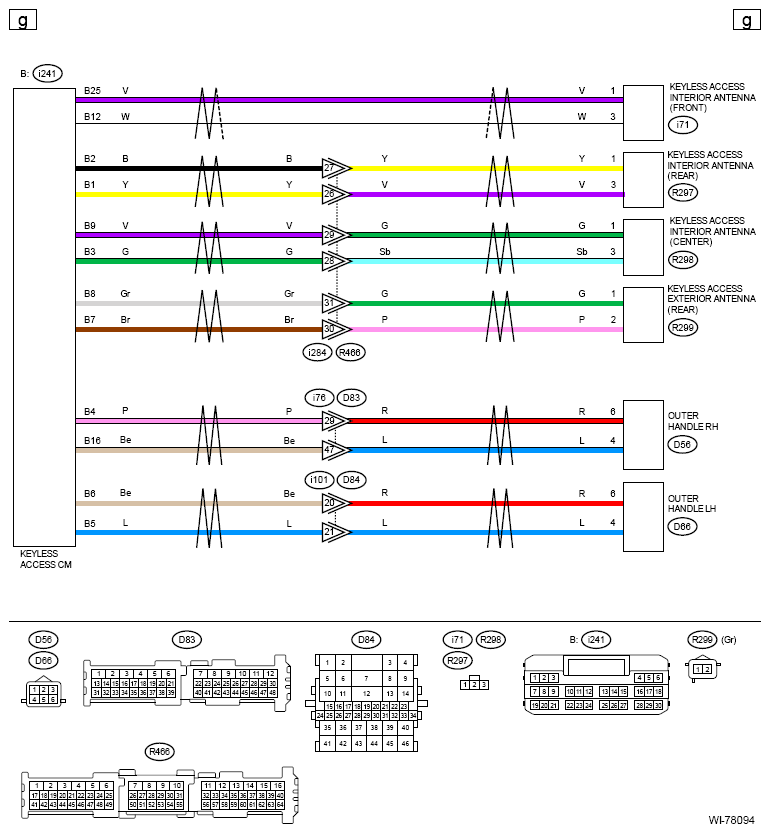

G13202119

Courtesy of SUBARU OF AMERICA, INC.

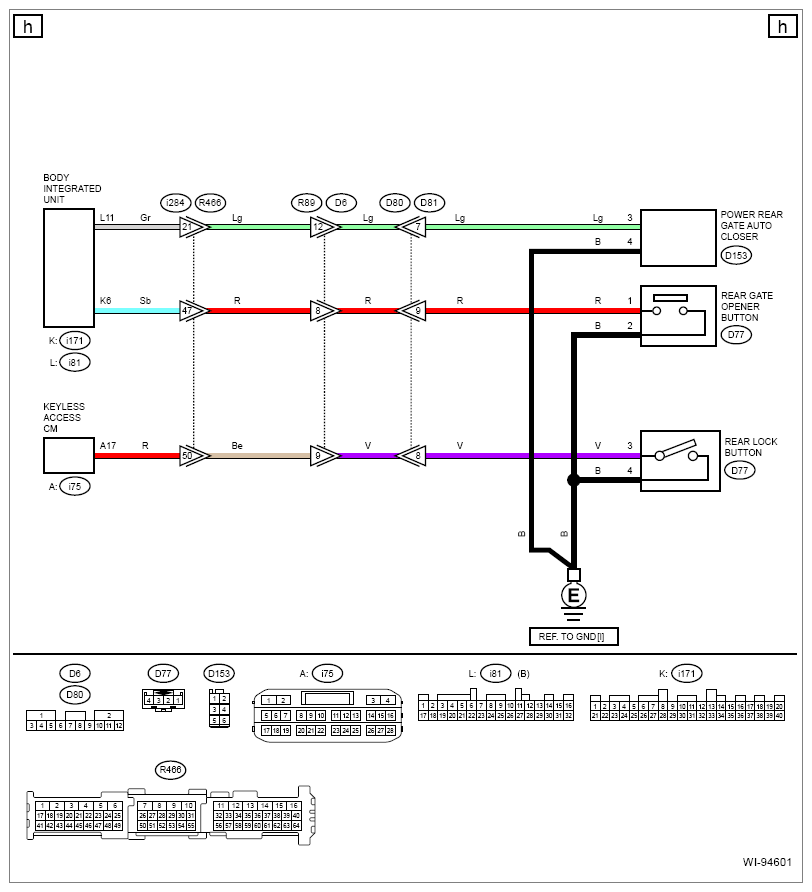

G16446002

Courtesy of SUBARU OF AMERICA, INC.

G16446003

Courtesy of SUBARU OF AMERICA, INC.

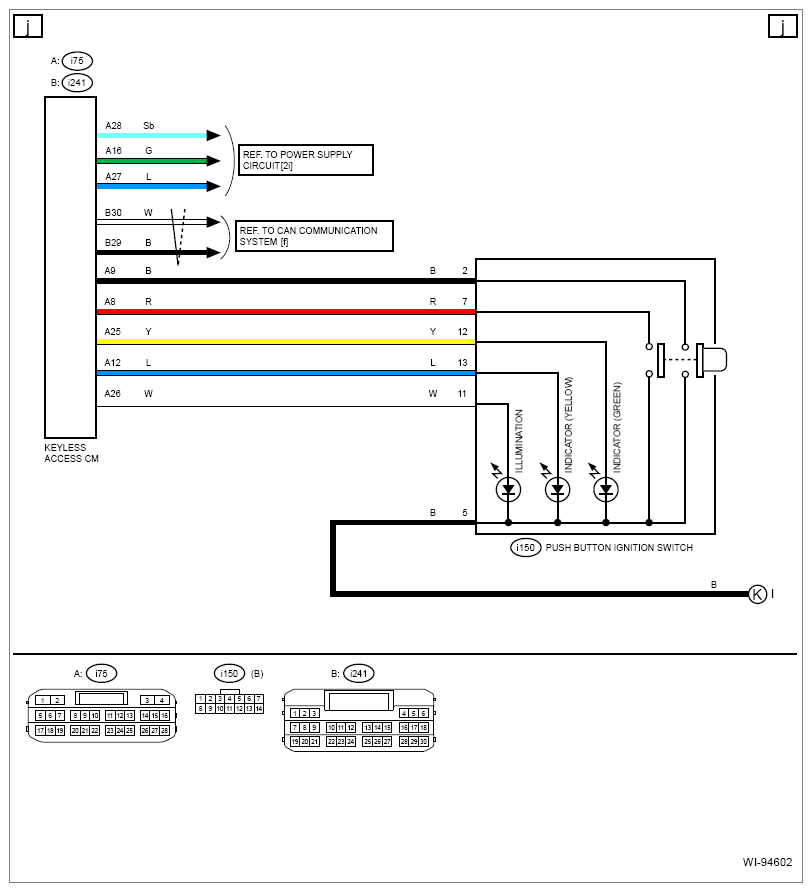

G16446004

Courtesy of SUBARU OF AMERICA, INC.

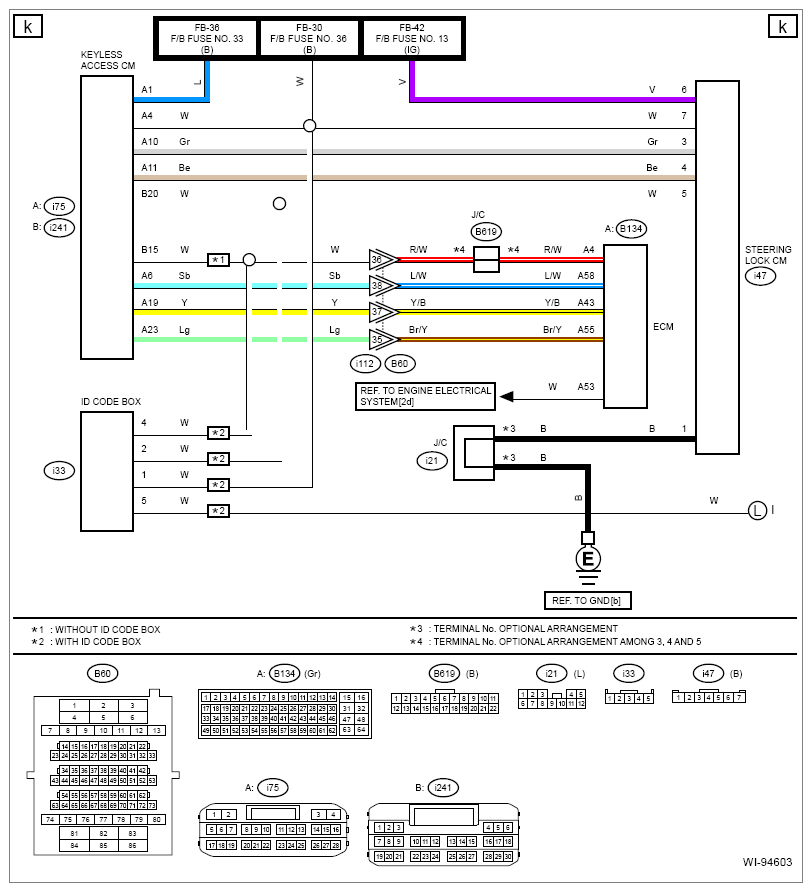

G16446005

Courtesy of SUBARU OF AMERICA, INC.

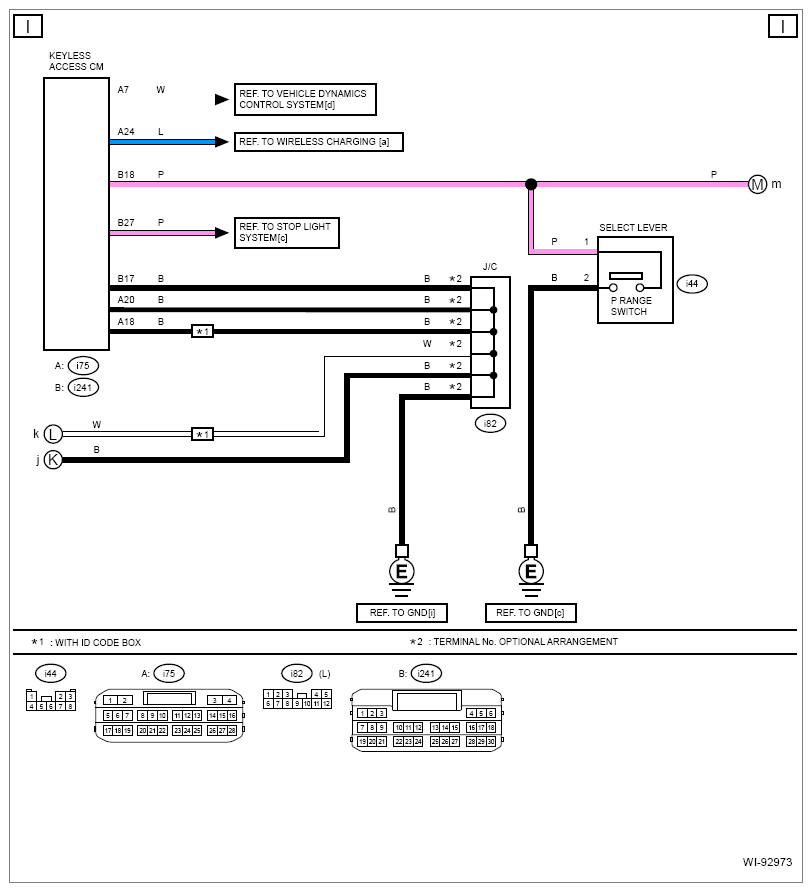

G16446006

Courtesy of SUBARU OF AMERICA, INC.

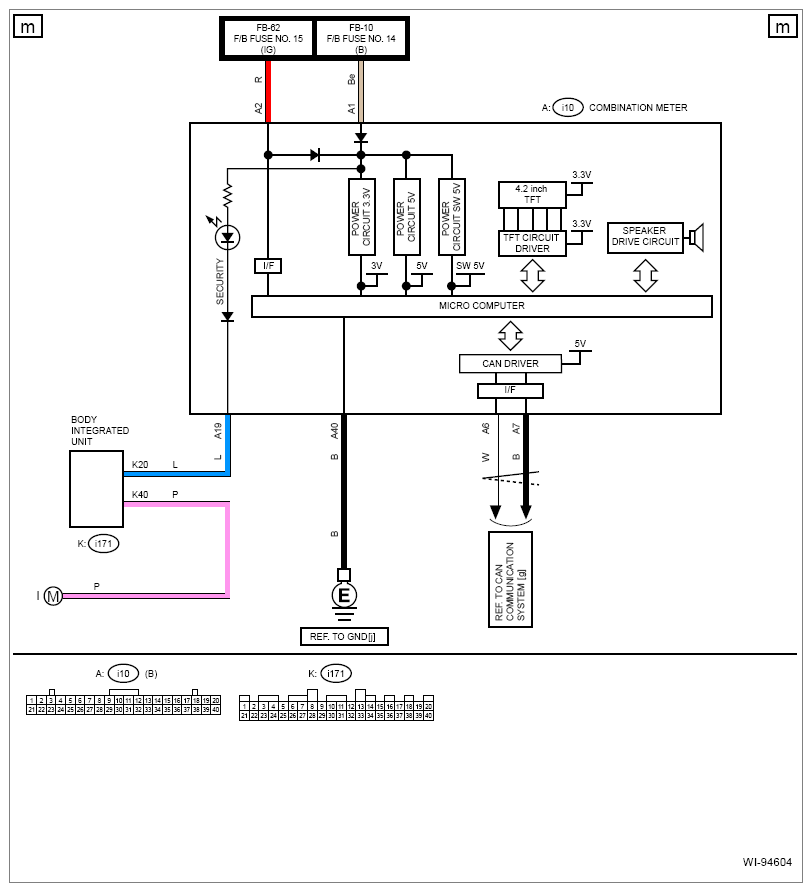

G16446007

Courtesy of SUBARU OF AMERICA, INC.
