CVT Control System: Wiring Diagram

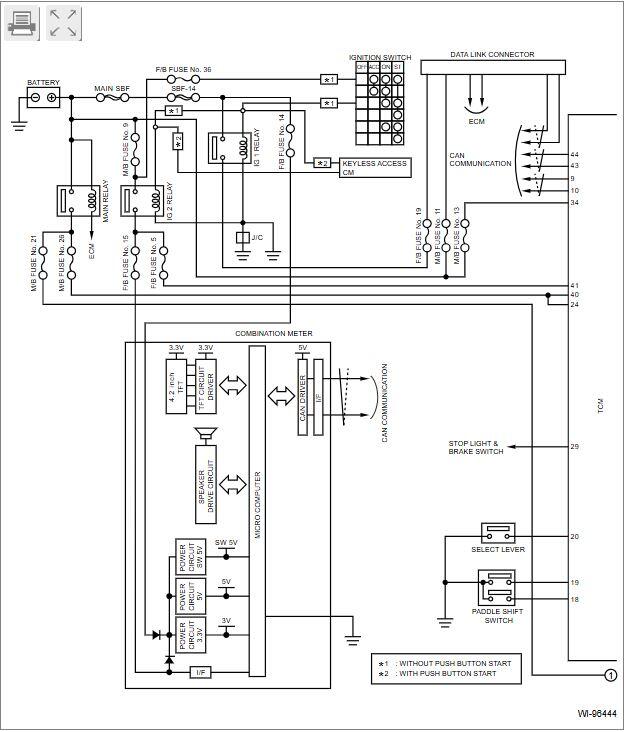

G00679131Courtesy of SUBARU OF AMERICA, INC.

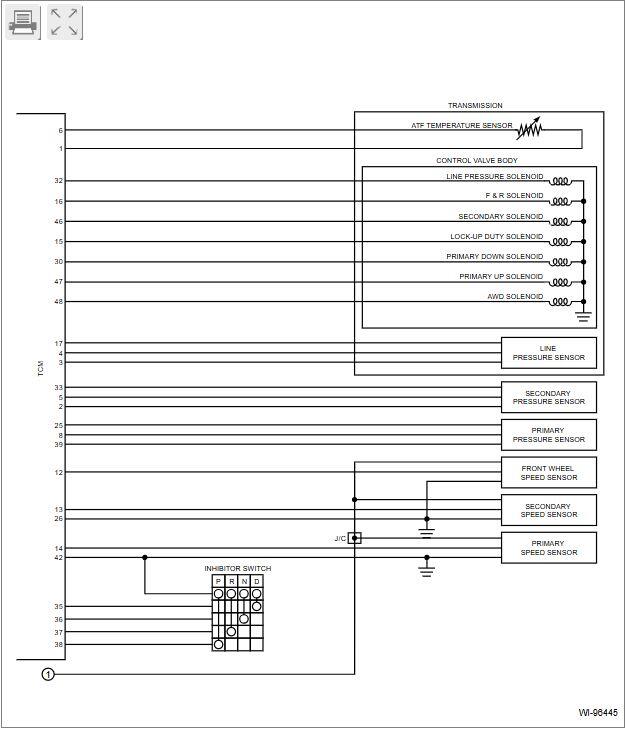

G00679132Courtesy of SUBARU OF AMERICA, INC.
G16445898Courtesy of SUBARU OF AMERICA, INC.

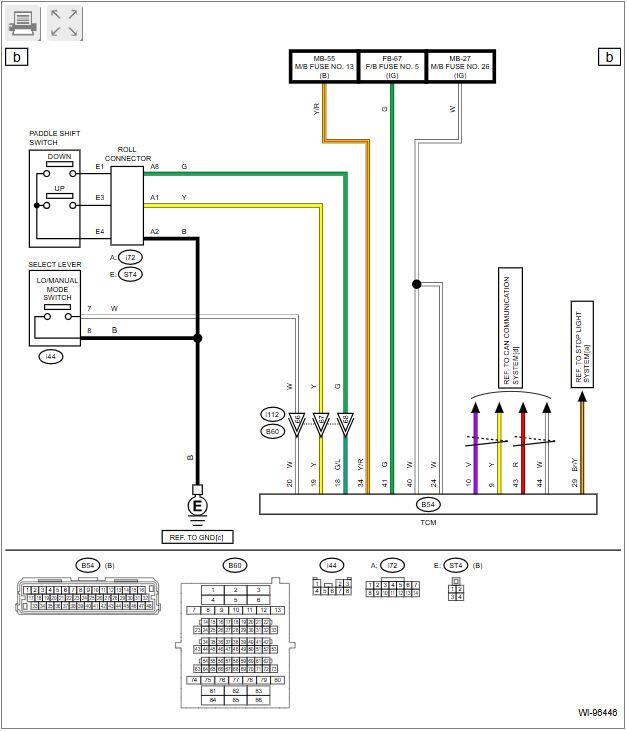

G00679133Courtesy of SUBARU OF AMERICA, INC.
G16445900Courtesy of SUBARU OF AMERICA, INC.
G16445901Courtesy of SUBARU OF AMERICA, INC.

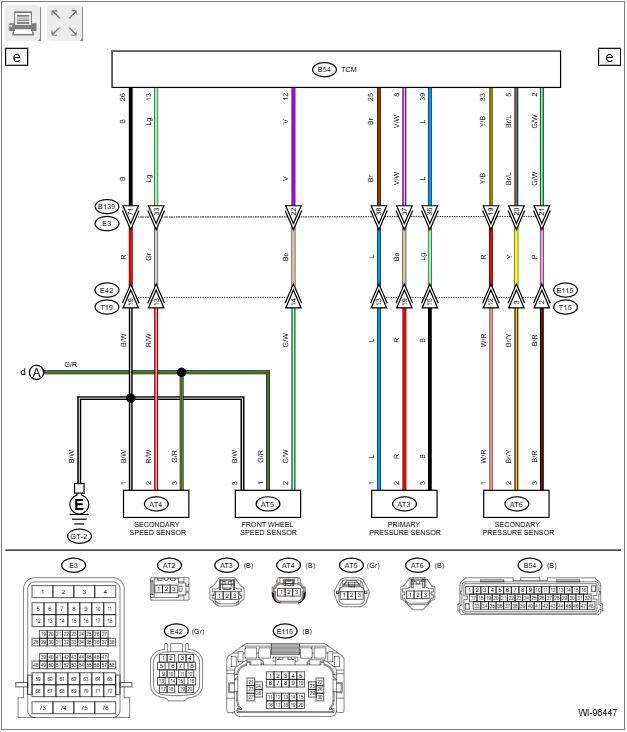

G00679134Courtesy of SUBARU OF AMERICA, INC.

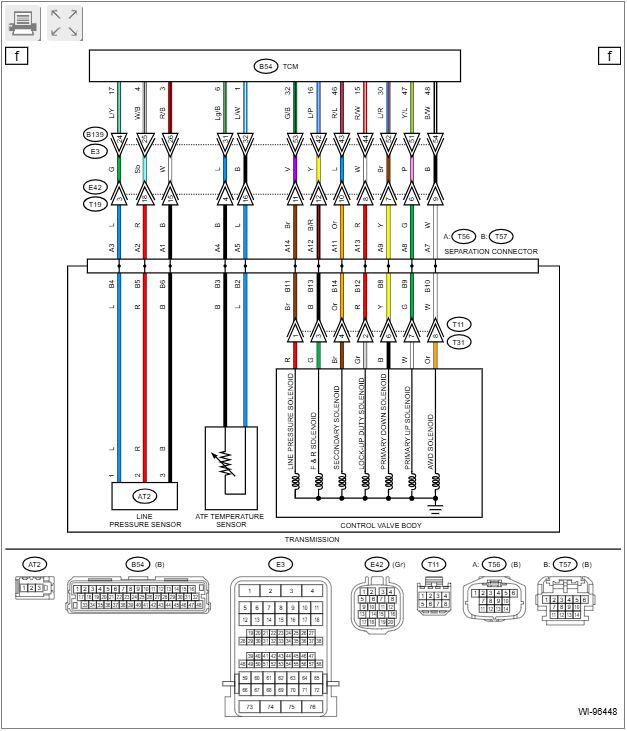

G00679135Courtesy of SUBARU OF AMERICA, INC.
