Airbag System: Wiring Diagram

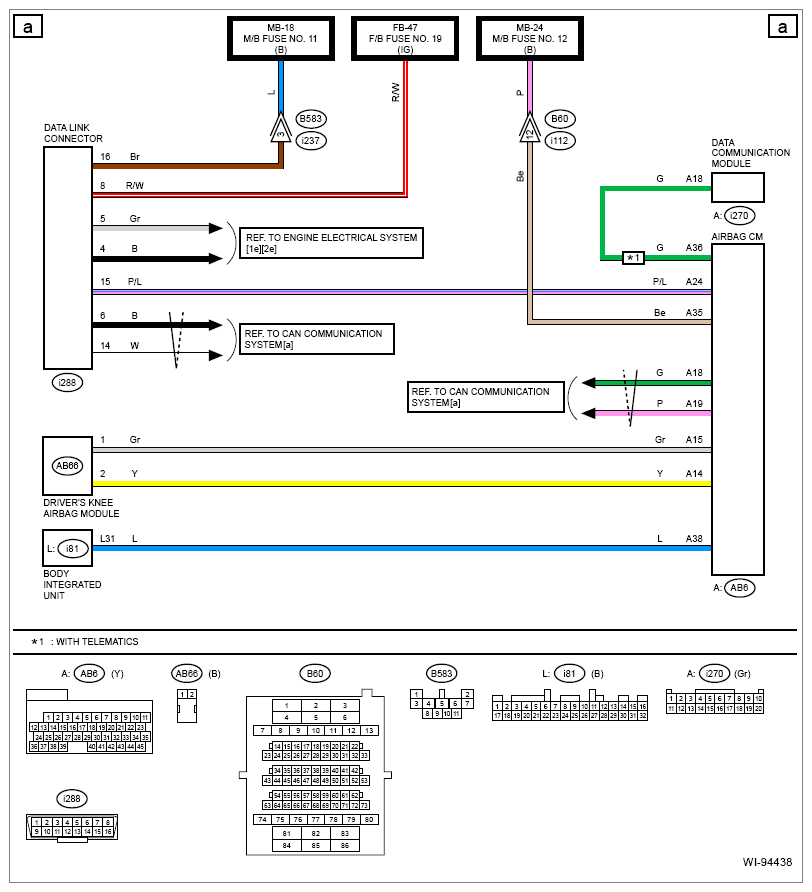

G16445818Courtesy of SUBARU OF AMERICA, INC.

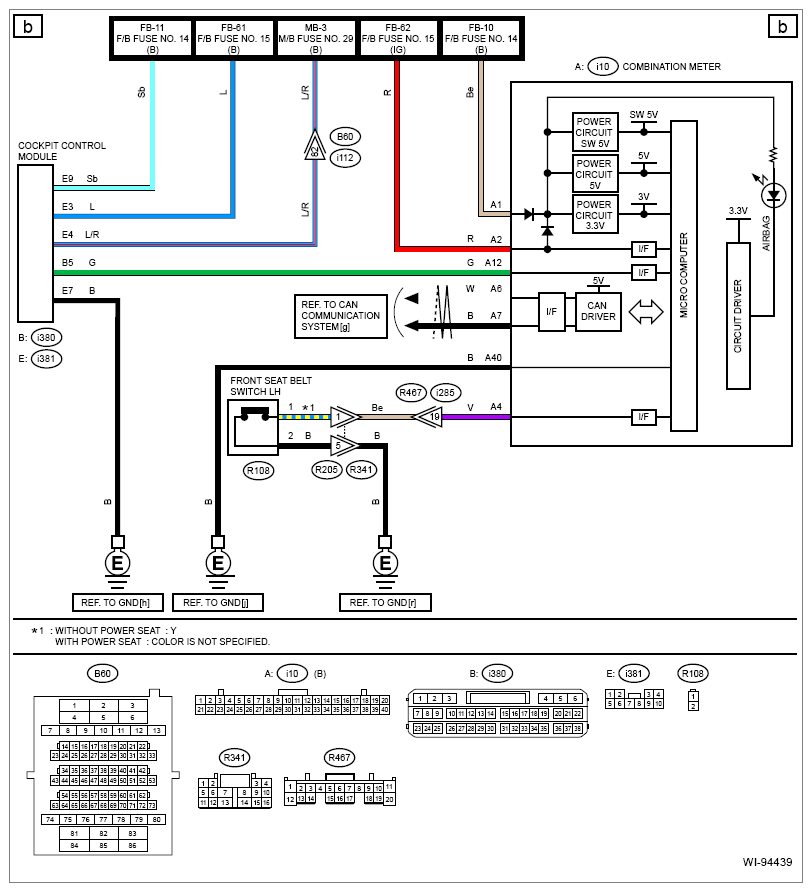

G16445819Courtesy of SUBARU OF AMERICA, INC.

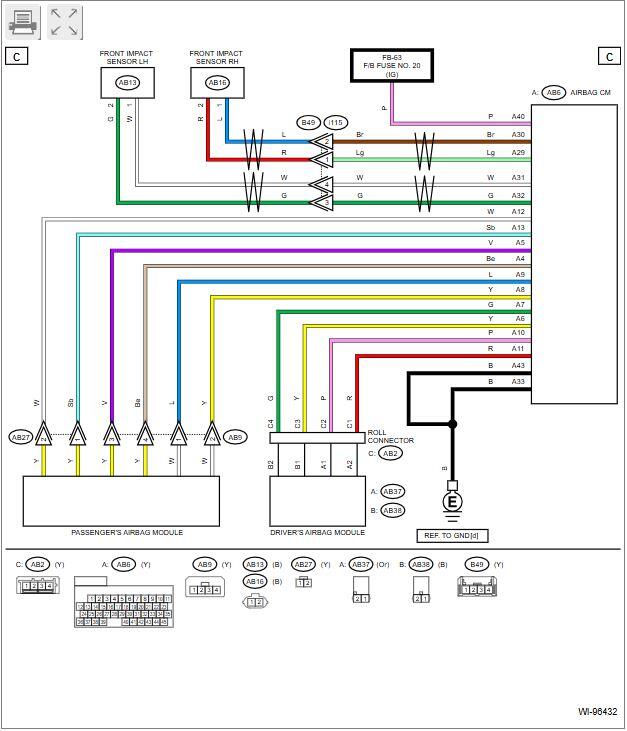

G00679106Courtesy of SUBARU OF AMERICA, INC.

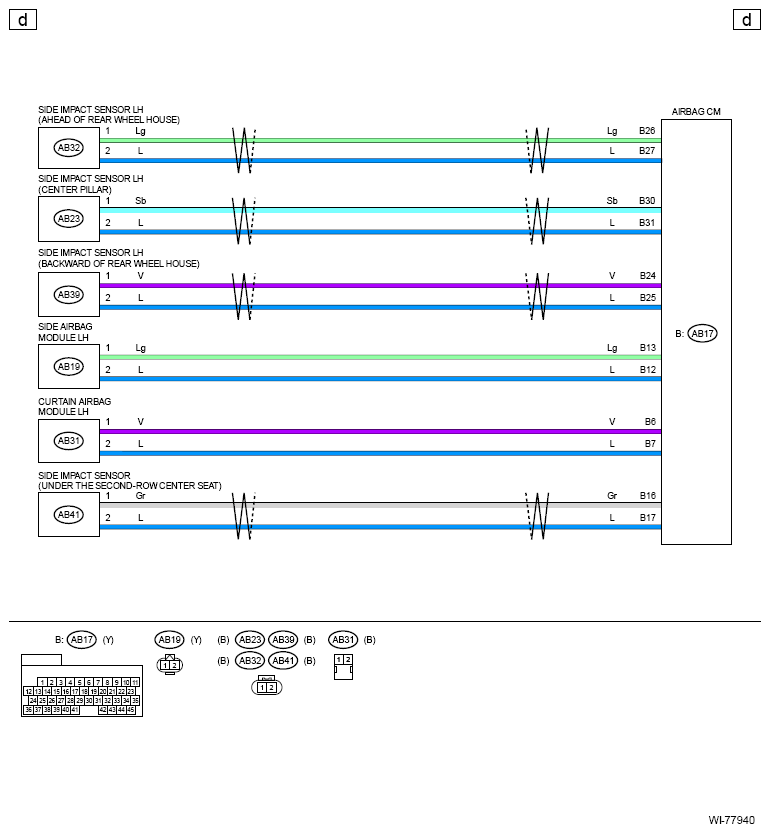

G13201965Courtesy of SUBARU OF AMERICA, INC.

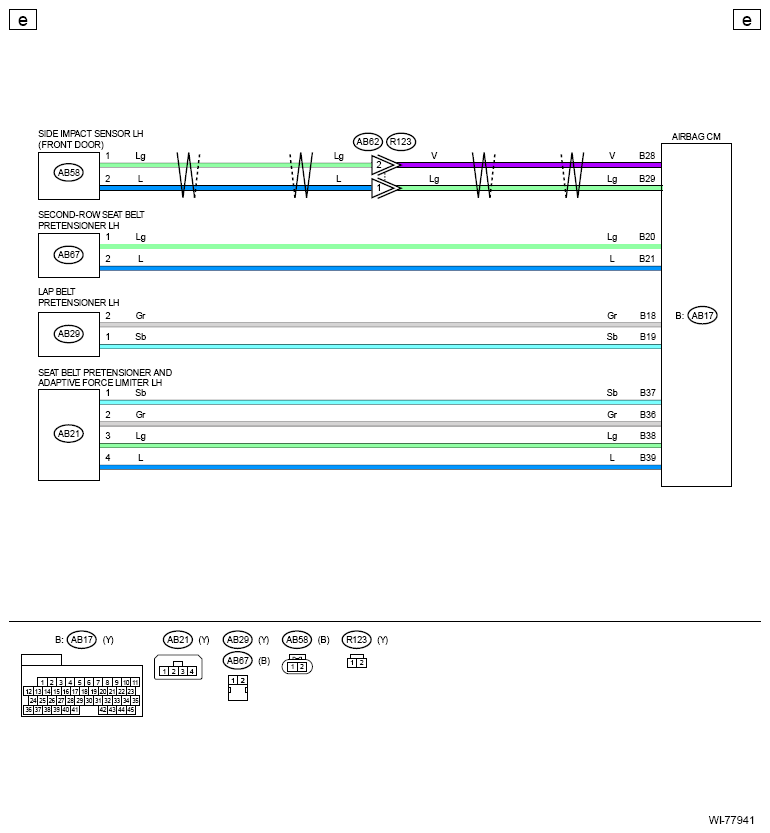

G13201966Courtesy of SUBARU OF AMERICA, INC.

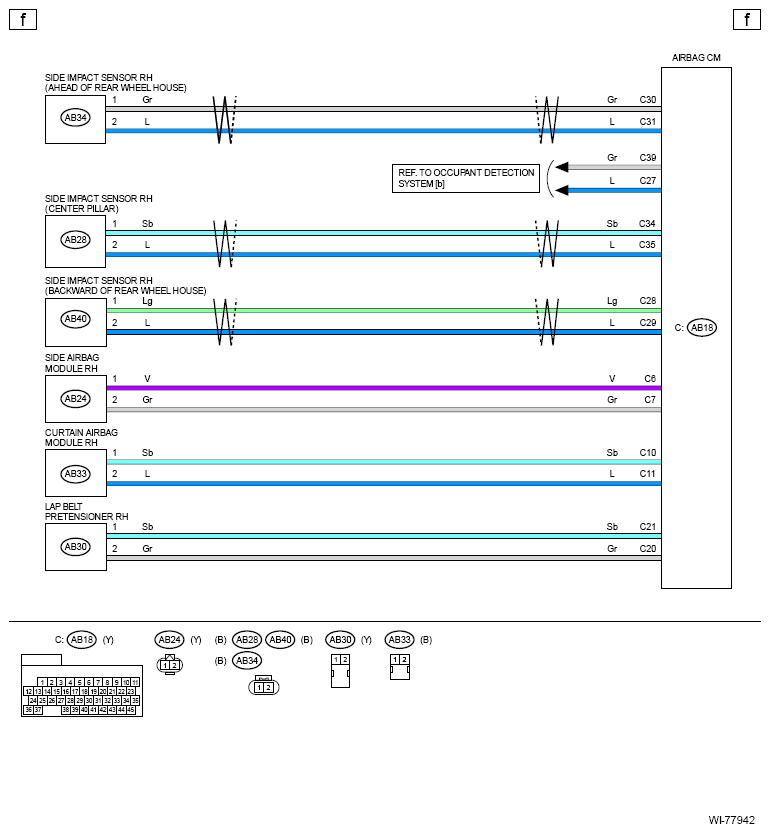

G13201967Courtesy of SUBARU OF AMERICA, INC.

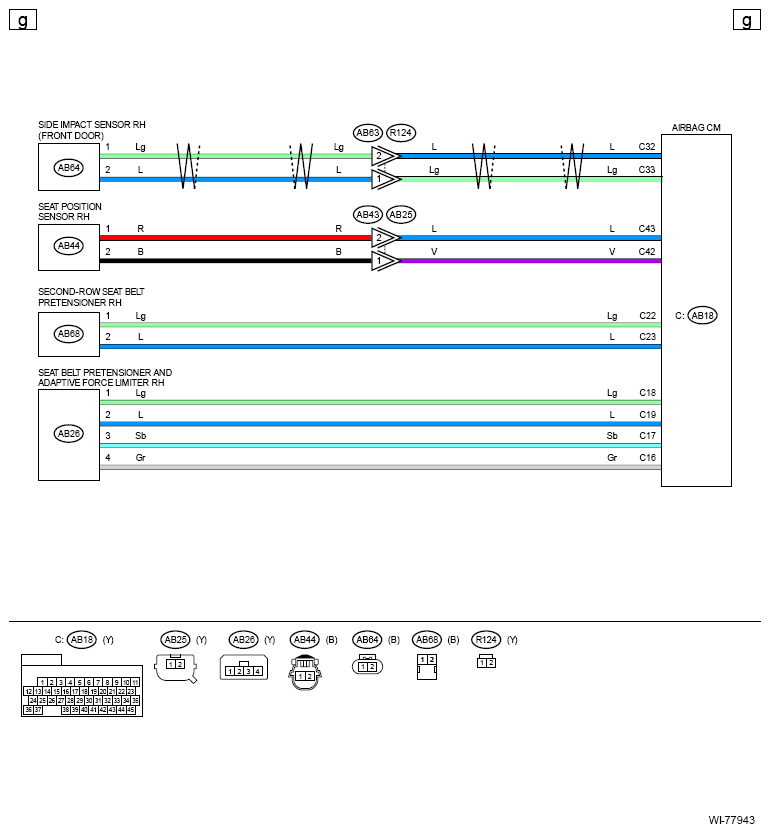

G13201968Courtesy of SUBARU OF AMERICA, INC.
