Telematics System: Wiring Diagram

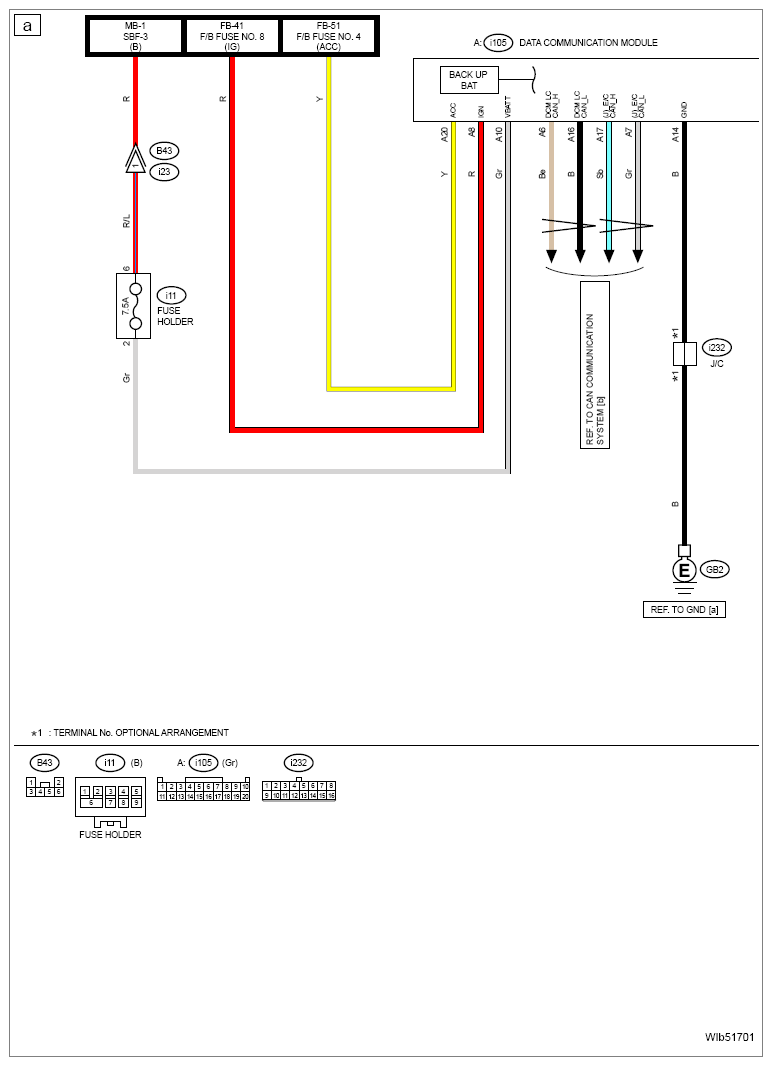

G16541910Courtesy of SUBARU OF AMERICA, INC.

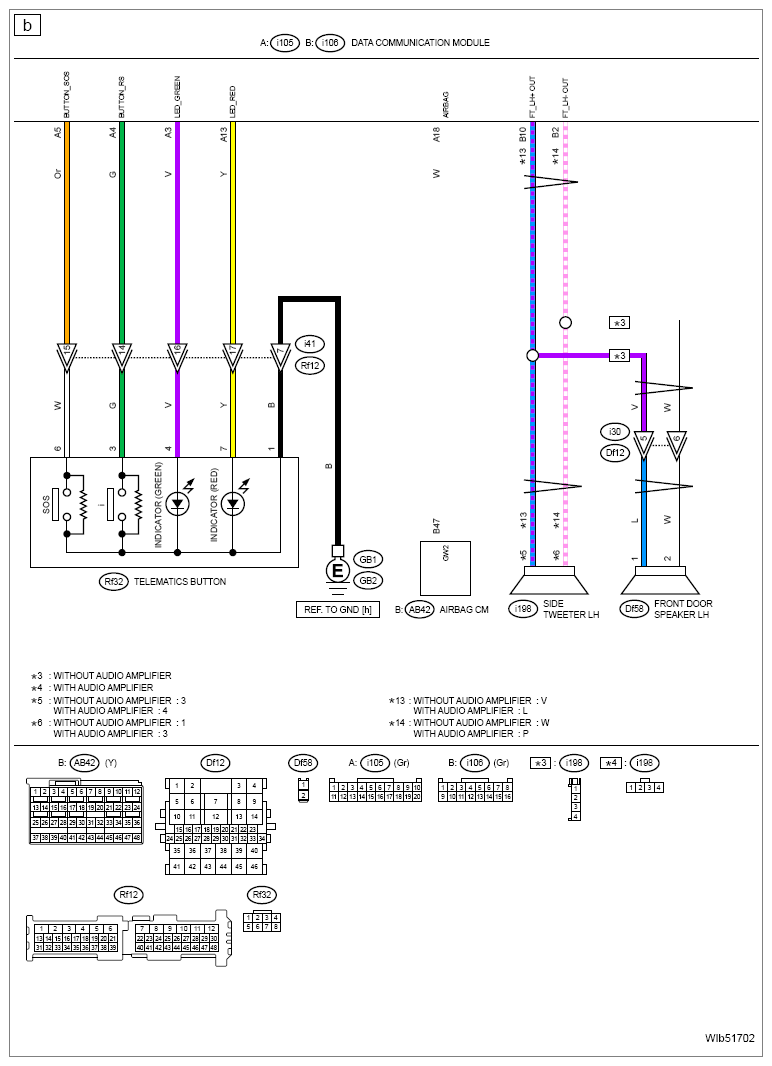

G16541911Courtesy of SUBARU OF AMERICA, INC.

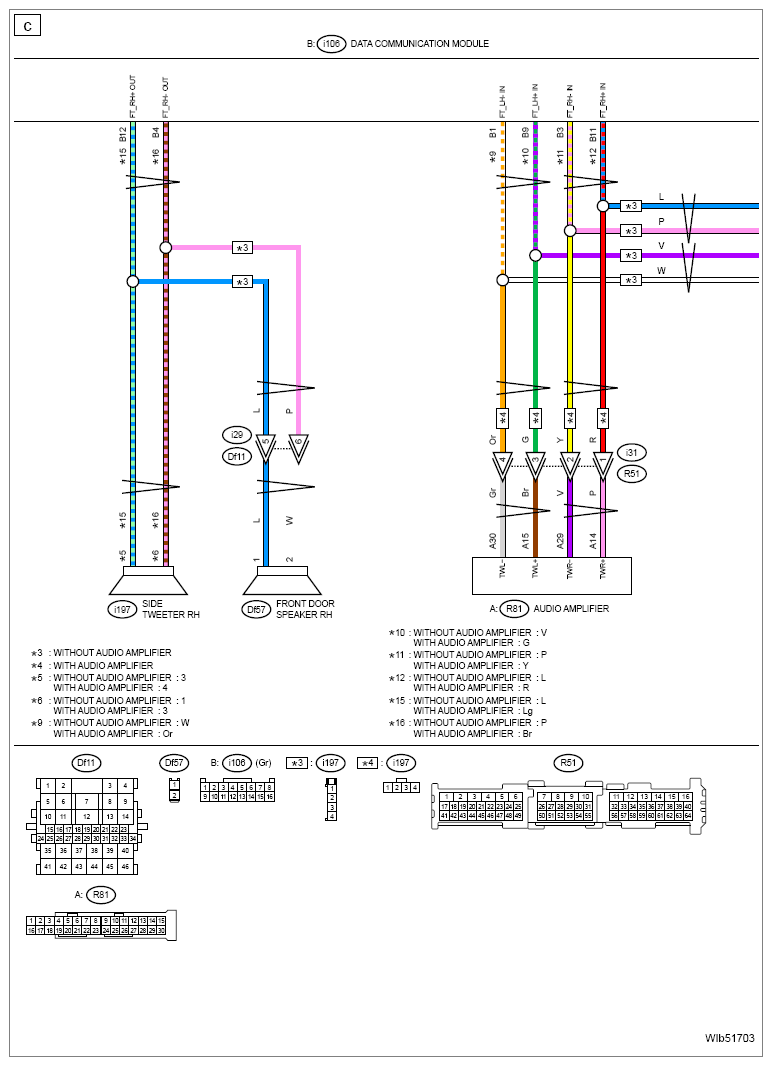

G16541912Courtesy of SUBARU OF AMERICA, INC.

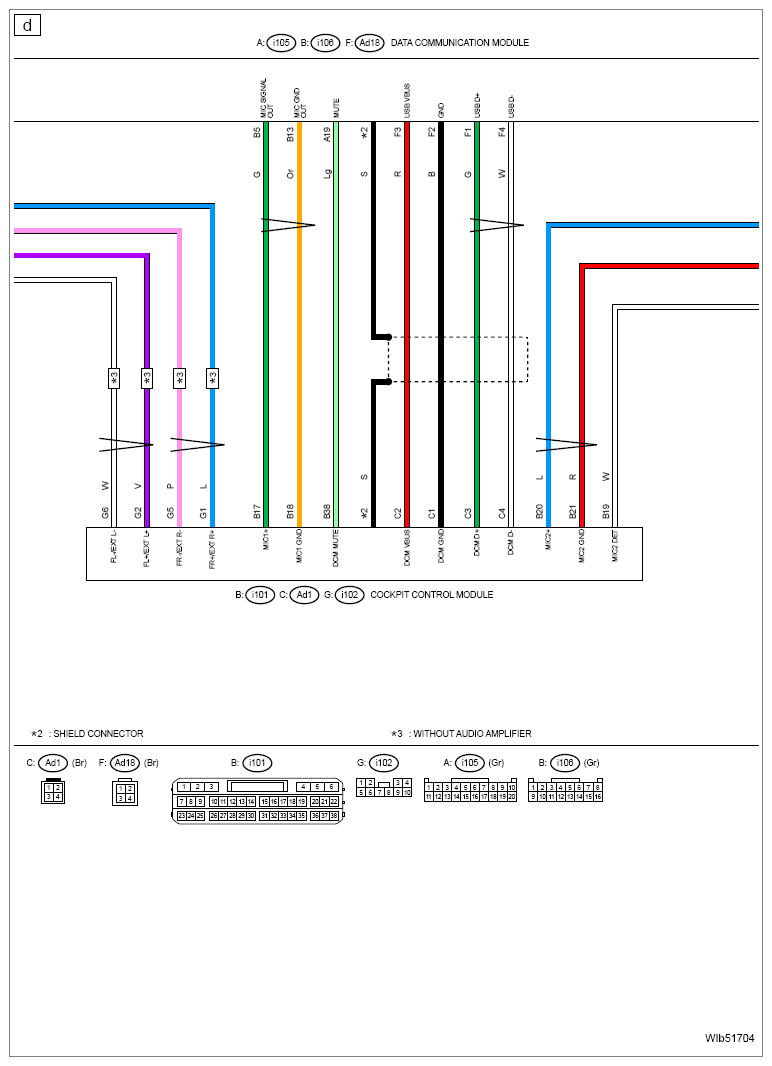

G16541913Courtesy of SUBARU OF AMERICA, INC.

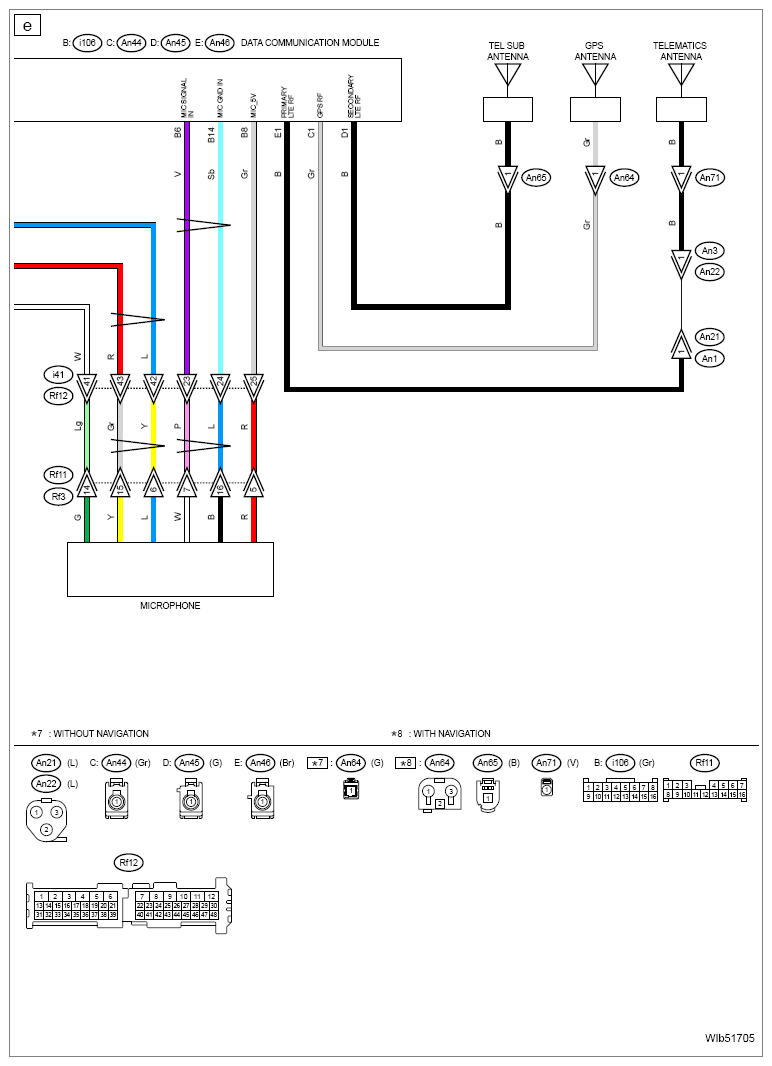

G16541914Courtesy of SUBARU OF AMERICA, INC.
