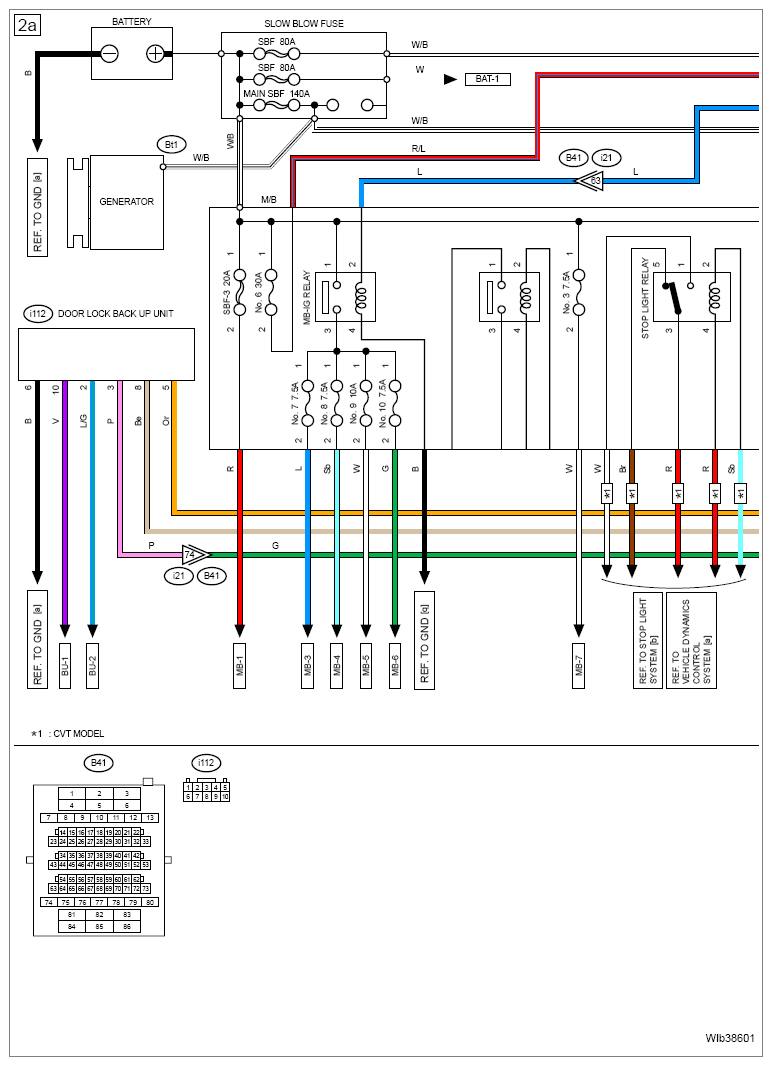

| MB-1 |
Airbag control module |
| Data communication module |
| MB-3 |
ECM |
| Fuel pump relay |
| TCM |
| MB-4 |
BSTR ECU |
| Power steering control module |
| Stop light relay |
| VDC control module |
| MB-5 |
Auto headlight beam leveler control module |
| Back-up light switch |
| Front combination light LH |
| Front combination light RH |
| Front relay control module |
| Inhibitor switch |
| Main fan relay |

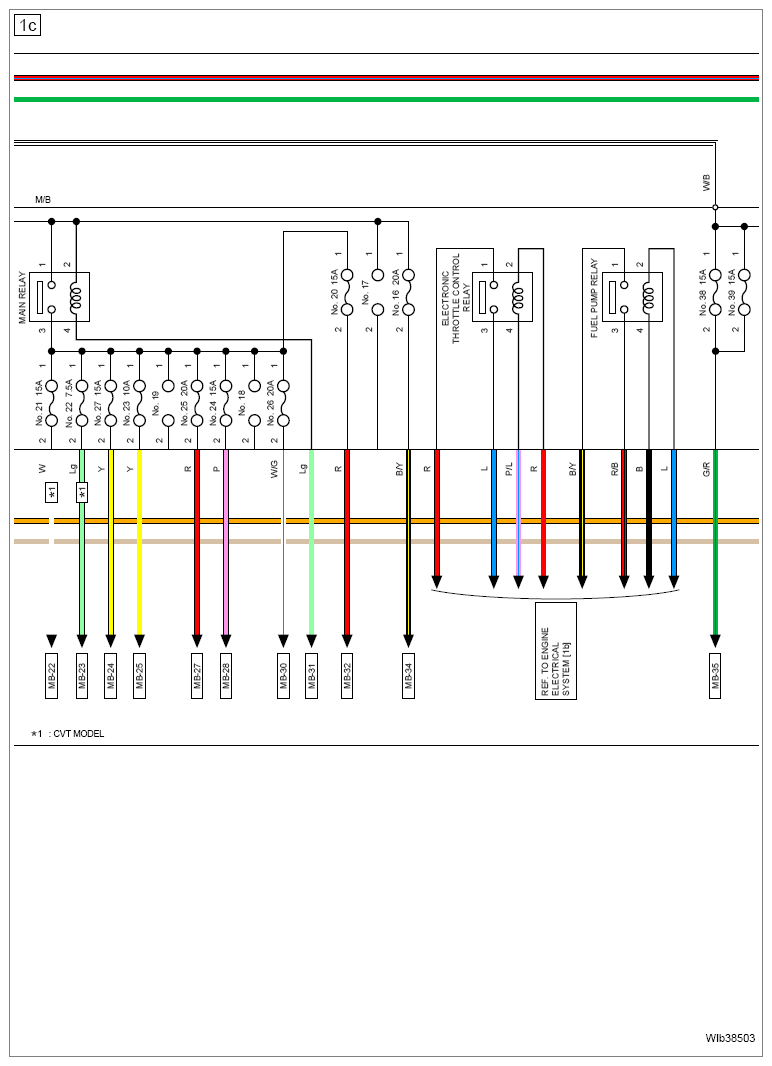

| MB-6 |
Rear defogger relay |
| Sub fan relay |
| Wiper deicer relay |
| MB-7 |
Stop light & brake switch |
| Stop light relay |
| MB-9 |
Battery sensor |
| ECM |
| TCM |
| MB-10 |
Battery sensor |
| MB-11 |
HORN LH |
| MB-12 |
HORN RH |
| MB-13 |
Body integrated unit |
| Horn switch |
| MB-14 |
Power window circuit breaker |
| Sunroof unit |
| MB-16 |
Body integrated unit |
| MB-17 |
Body integrated unit |
| MB-18 |
Data link connector |
| MB-19 |
Front combination light RH |
| Front relay control module |
| MB-20 |
Front combination light LH |
| Front relay control module |
| MB-21 |
Starter cut relay |
| MB-22 |
TCM |
| MB-23 |
Front wheel speed sensor |
| Primary speed sensor |
| Rear wheel speed sensor |
| Secondary speed sensor |
| MB-24 |
ECM |
| Exhaust oil control solenoid LH |
| Exhaust oil control solenoid RH |
| Intake oil control solenoid LH |
| Intake oil control solenoid RH |
| MB-25 |
EGR control valve |
| Electric air bypass valve |
| Exhaust camshaft position sensor LH |
| Exhaust camshaft position sensor RH |
| Intake camshaft position sensor LH |
| Intake camshaft position sensor RH |
| Leak check valve ASSY |
| Purge control solenoid valve |
| MB-27 |
Front oxygen (A/F) sensor |
| Rear oxygen sensor |
| MB-28 |
Ignition coil No. 1 |
| Ignition coil No. 2 |
| Ignition coil No. 3 |
| Ignition coil No. 4 |
| MB-30 |
ECM |
| MB-31 |
ECM |
| MB-32 |
Electronic throttle control relay |
| MB-34 |
Fuel pump relay |

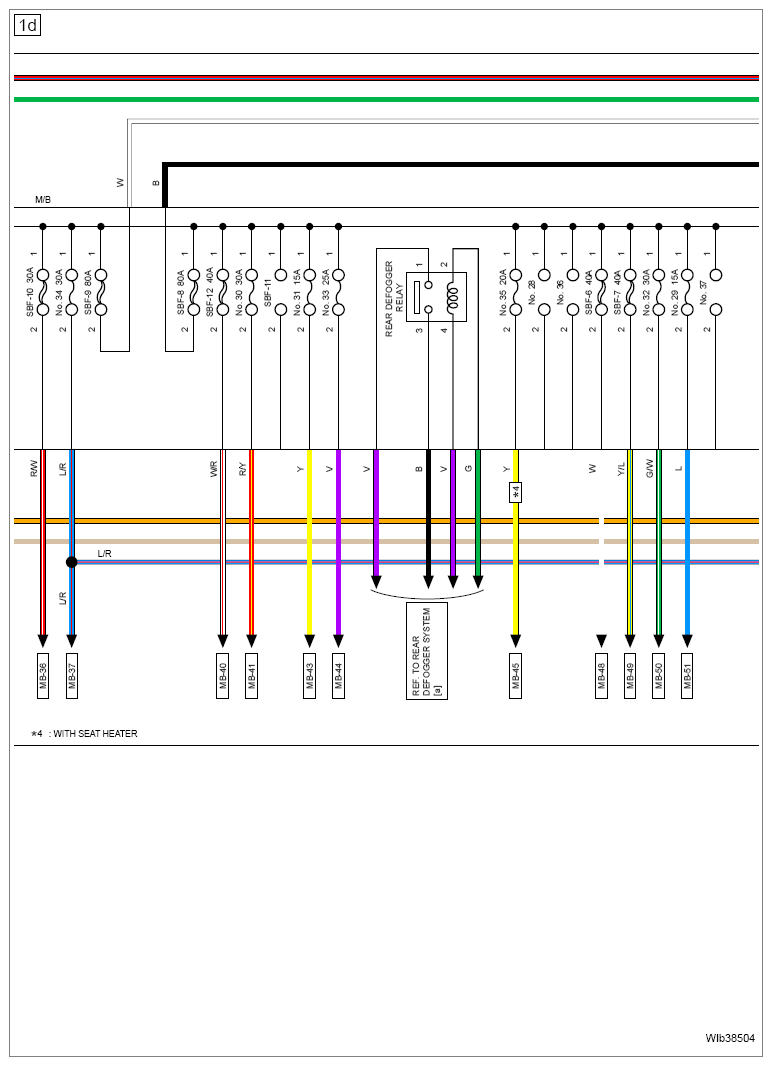

| MB-35 |
Blower motor relay |
| MB-36 |
Audio amplifier |
| OP connector (power amplifier) |
| MB-37 |
Cockpit control module |
| MB-40 |
VDC control module |
| MB-41 |
VDC control module |
| MB-43 |
Front fog light relay |
| MB-44 |
Rear defogger relay |
| MB-45 |
Accessory relay |
| MB-48 |
Main fan relay |
| MB-49 |
Sub fan relay |
| MB-50 |
Front relay control module |
| MB-51 |
Front relay control module |
| Wiper deicer relay |
| MB-53 |
Front relay control module |
| BAT-1 |
Power steering control module |

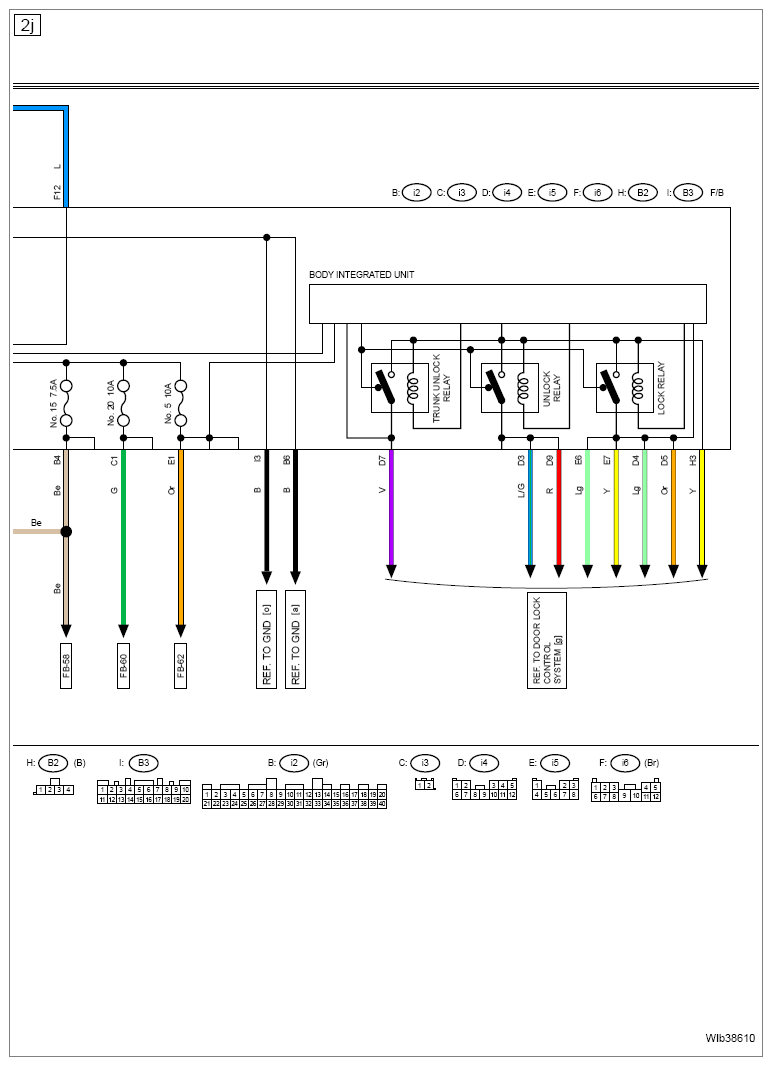

| BU-1 |
Body integrated unit |
| BU-2 |
Body integrated unit |
| Lock relay |
| Rear gate/trunk unlock relay |
| Unlock relay |
| FB-1 |
A/C control module |
| Air mix door actuator LH |
| Air mix door actuator RH |
| Auto headlight beam leveler control module |
| Cockpit control module |
| Combination meter |
| EPB control switch |
| Mode door actuator |
| TPMS control module |
| FB-2 |
Rear seat heater control module |
| FB-3 |
RAB control module |
| Stereo camera |
| FB-4 |
Heater relay |
| Mirror heater relay |
| FB-14 |
Body integrated unit |
| FB-22 |
Trunk room light |
| Warning box |
| FB-23 |
OP connector (CD deck) |
| EyeSight assist monitor |
| OP connector (remote engine start control module) |
| FB-24 |
Body integrated unit |
| Front relay control module |
| ROOM ILL CUT RELAY |
| FB-30 |
ID code box |
| Keyless access control module |
| Steering lock control module |
| FB-33 |
Clutch start switch |

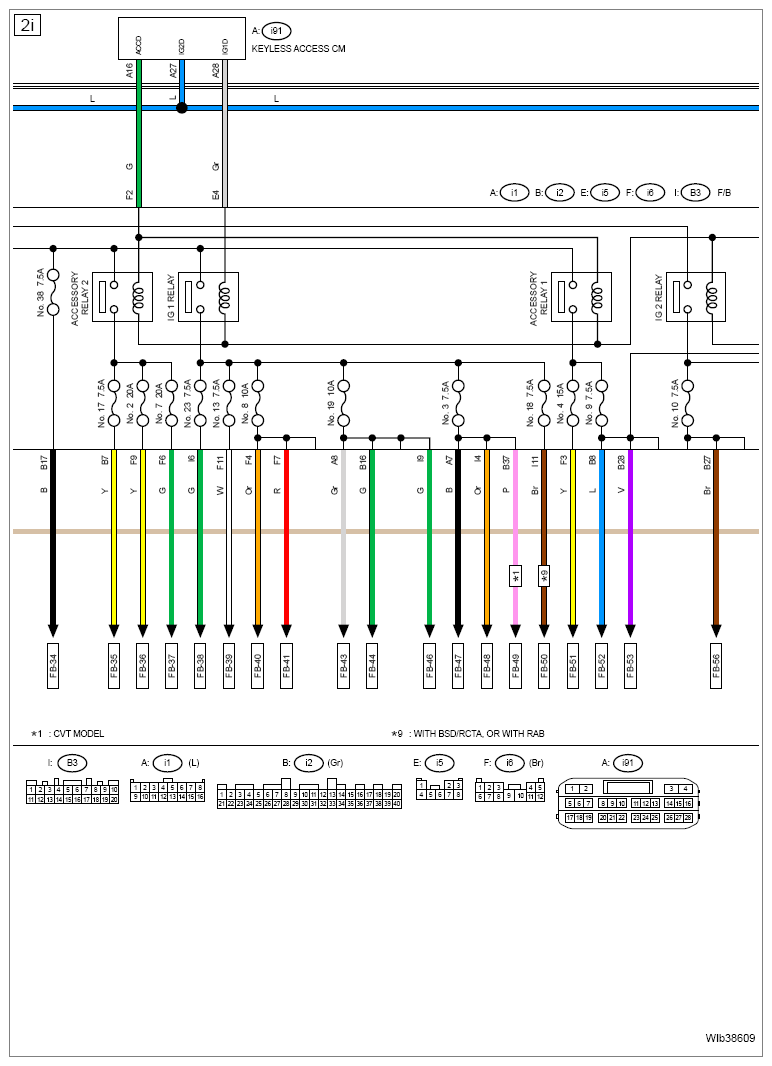

| Keyless access control module |
| FB-34 |
Central gateway control module |
| FB-35 |
Remote control mirror switch |
| FB-36 |
Front accessory power supply socket |
| FB-37 |
Rear accessory power supply socket (console) |
| FB-38 |
Starter cut relay |
| Starter relay |
| FB-39 |
Steering lock control module |
| FB-40 |
Blower motor relay |
| FB-41 |
A/C control module |
| Data communication module |
| FB-43 |
Damper control module |
| Rear seat heater control module |
| Rearview mirror |
| Sunroof unit |
| TPMS control module |
| FB-44 |
Stereo camera |
| Warning box |
| FB-46 |
Clutch switch |
| Stop light & brake switch |
| FB-47 |
Data link connector |
| OP connector |
| FB-48 |
Power window relay |
| FB-49 |
OP connector (remote engine start control module) |
| Shift position indicator |
| FB-50 |
RAB control module |
| Radar sensor LH (master) |
| Radar sensor RH (slave) |
| FB-51 |
Audio amplifier |
| Data communication module |
| OP connector |
| USB power supply (console) |
| FB-52 |
A/C control module |
| FB-53 |
Accessory relay |
| Body integrated unit |
| Central gateway control module |
| FB-56 |
Steering angle sensor |
| FB-58 |
Central gateway control module |
| Cockpit control module |
| FB-60 |
Airbag control module |
| FB-62 |
Combination meter |
| EyeSight assist monitor |

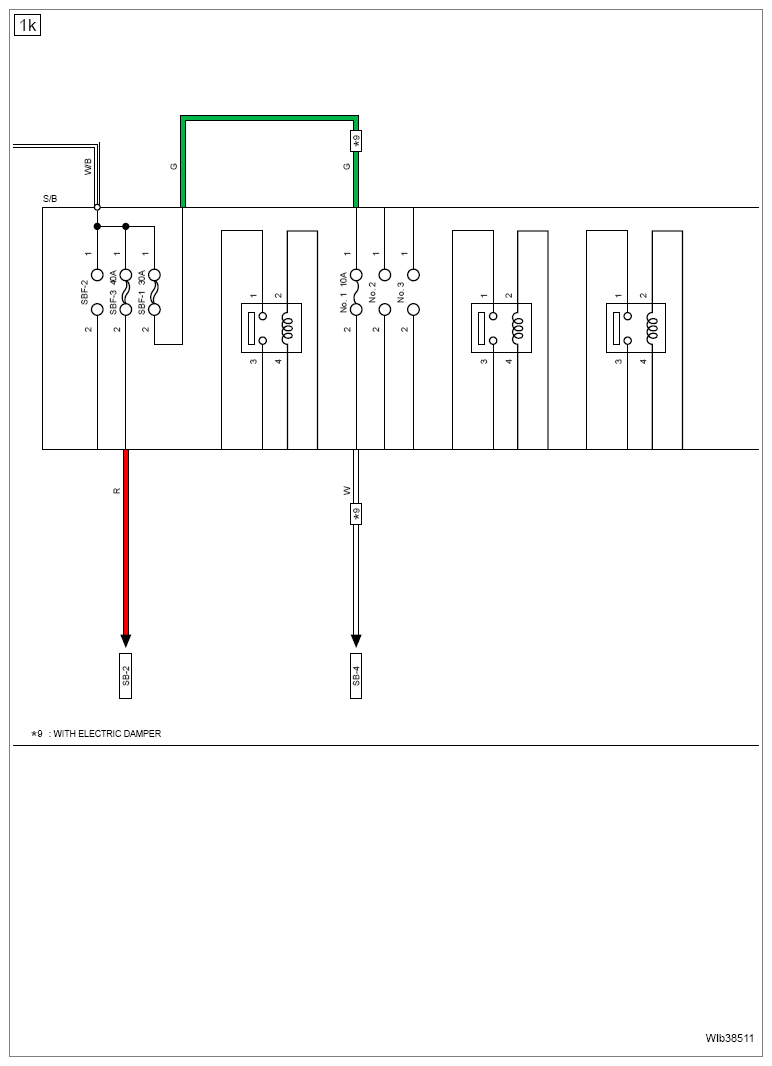

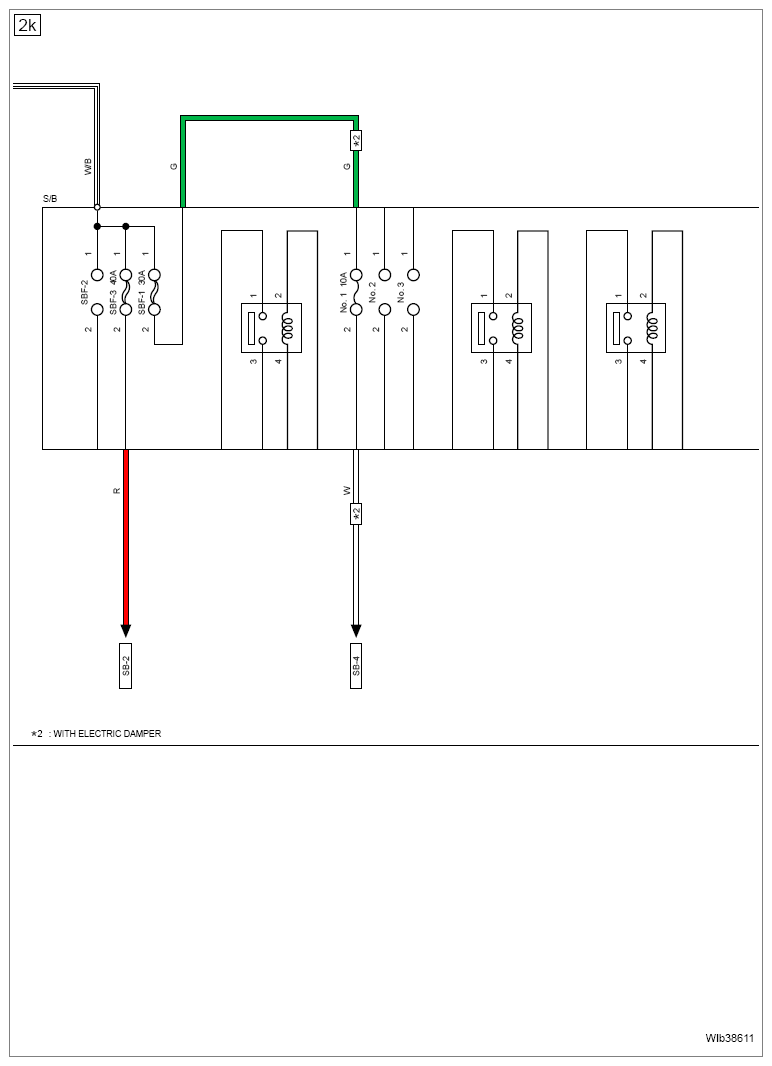

| SB-2 |
BSTR ECU |
| SB-4 |
Damper control module |
