Headlight Beam Leveler System
>>
Wiring Diagram

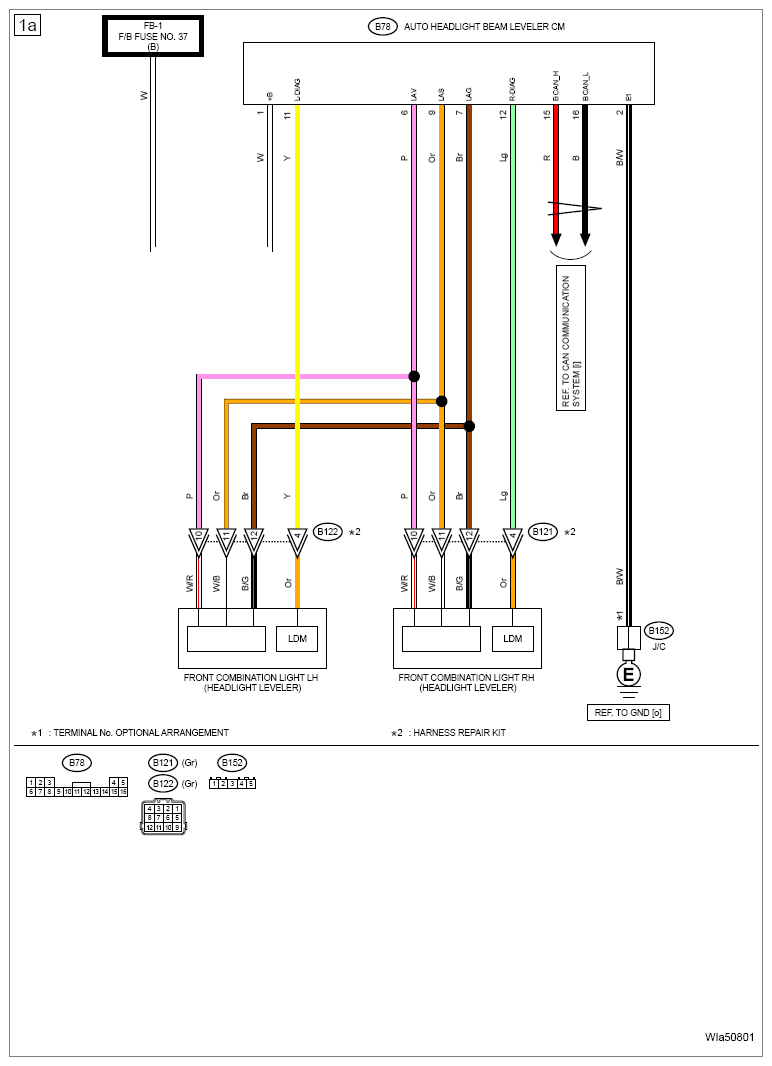

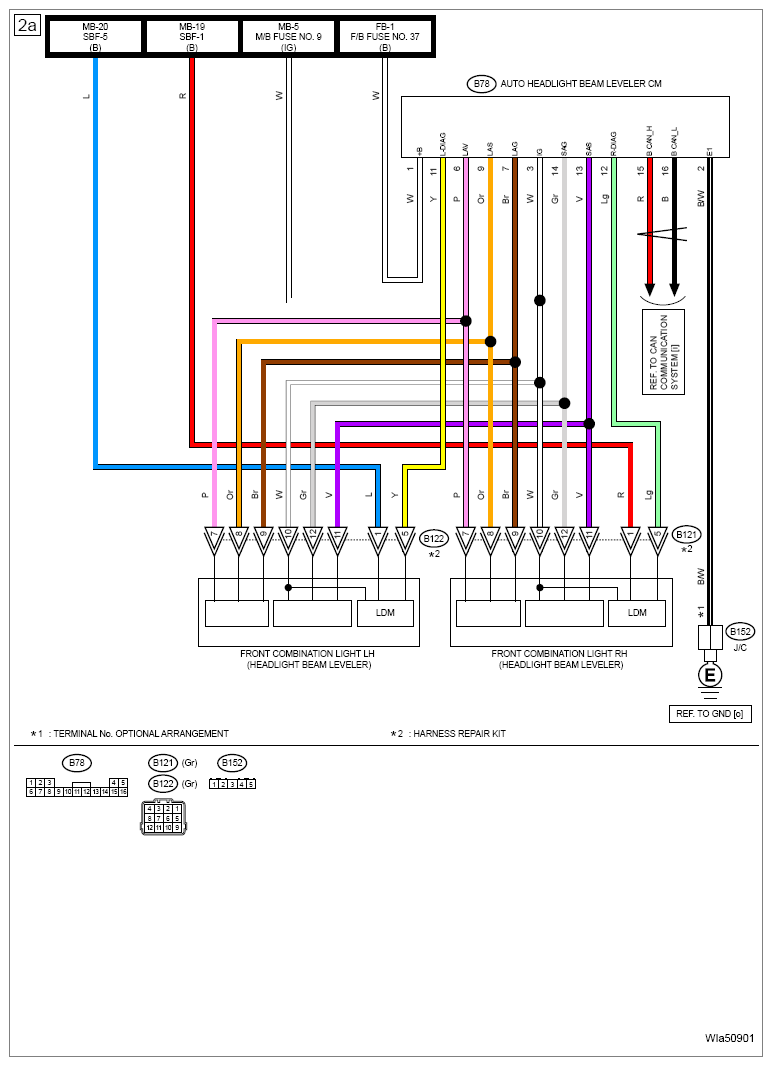

Headlight Beam Leveler System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
