Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay
>>
Engine Electrical System
>>
Wiring Diagram

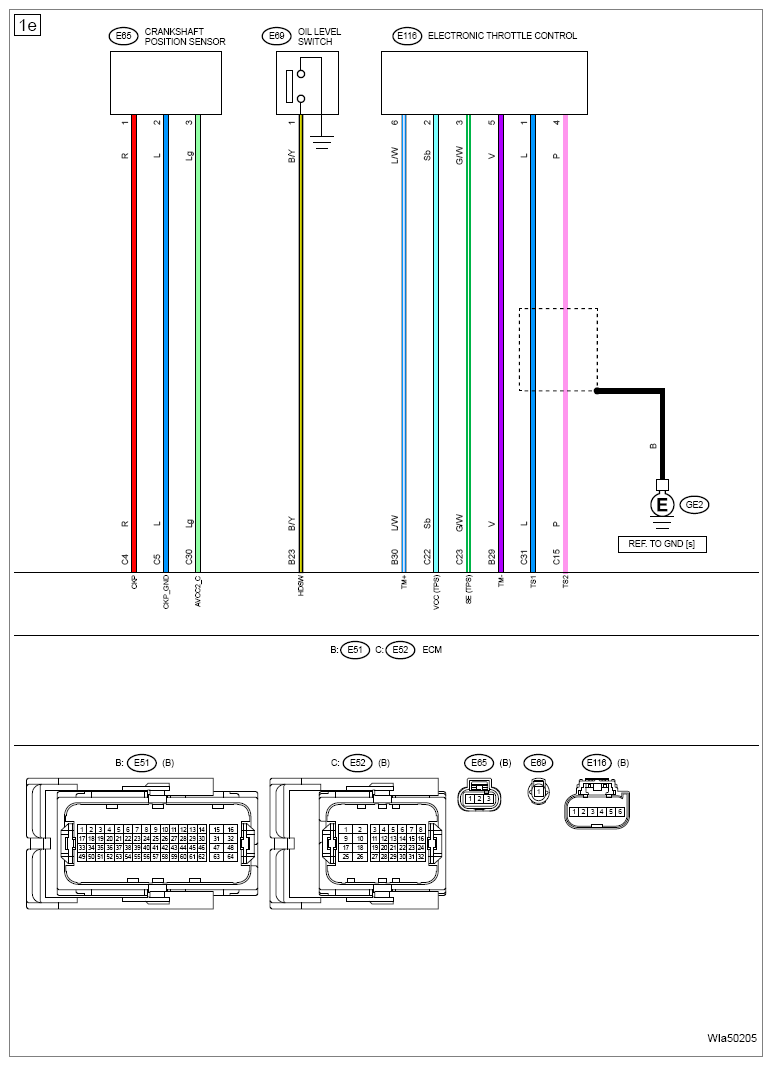

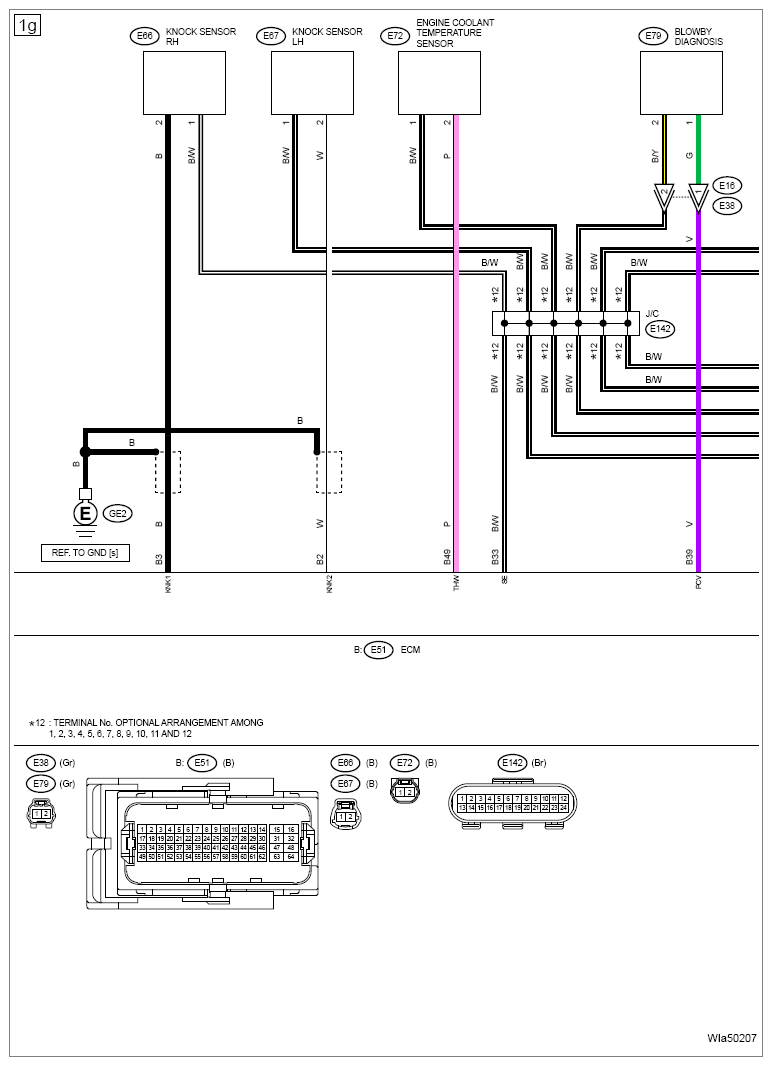

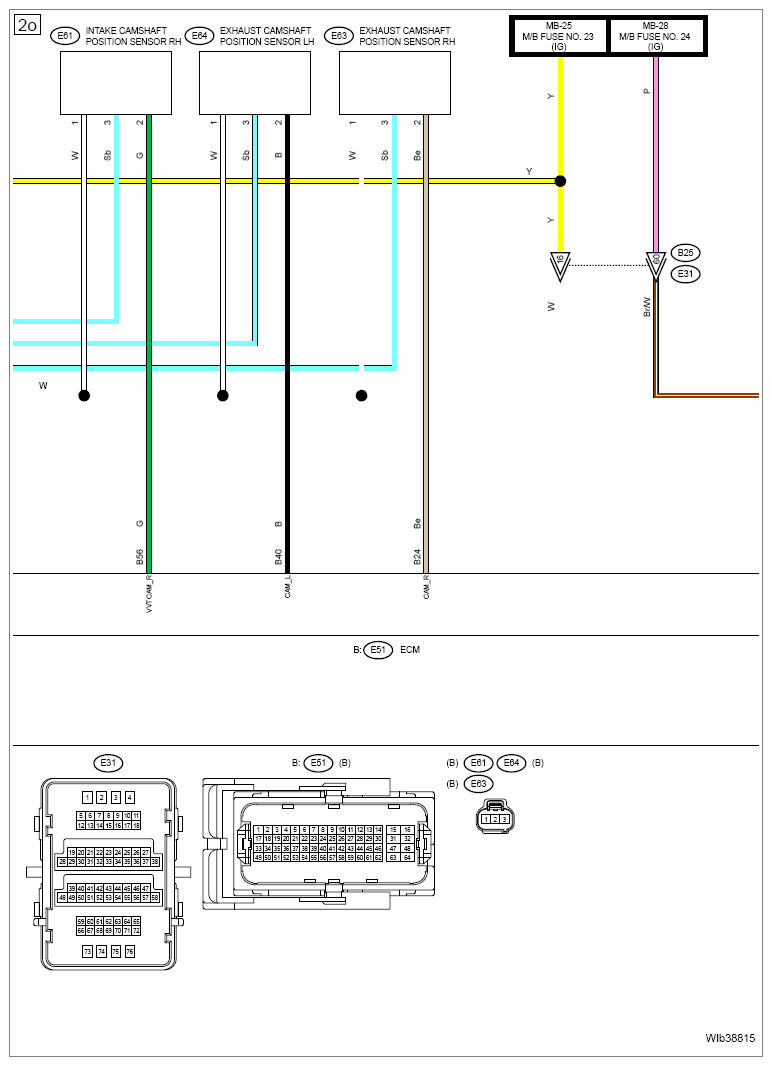

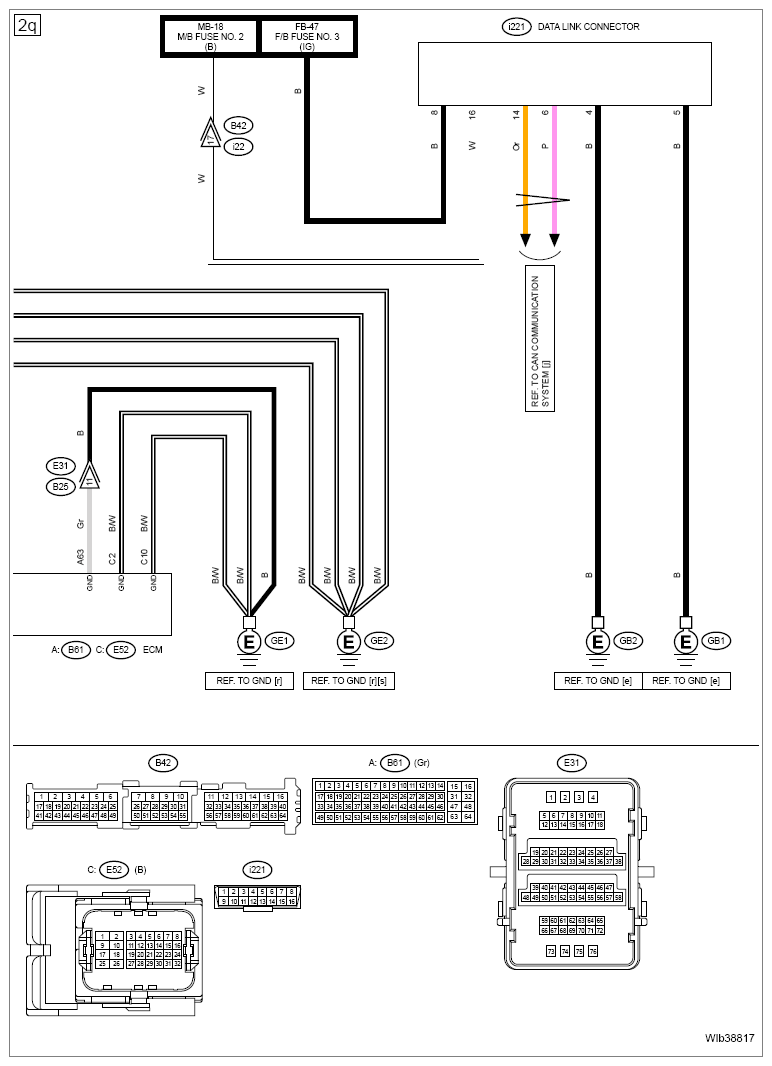

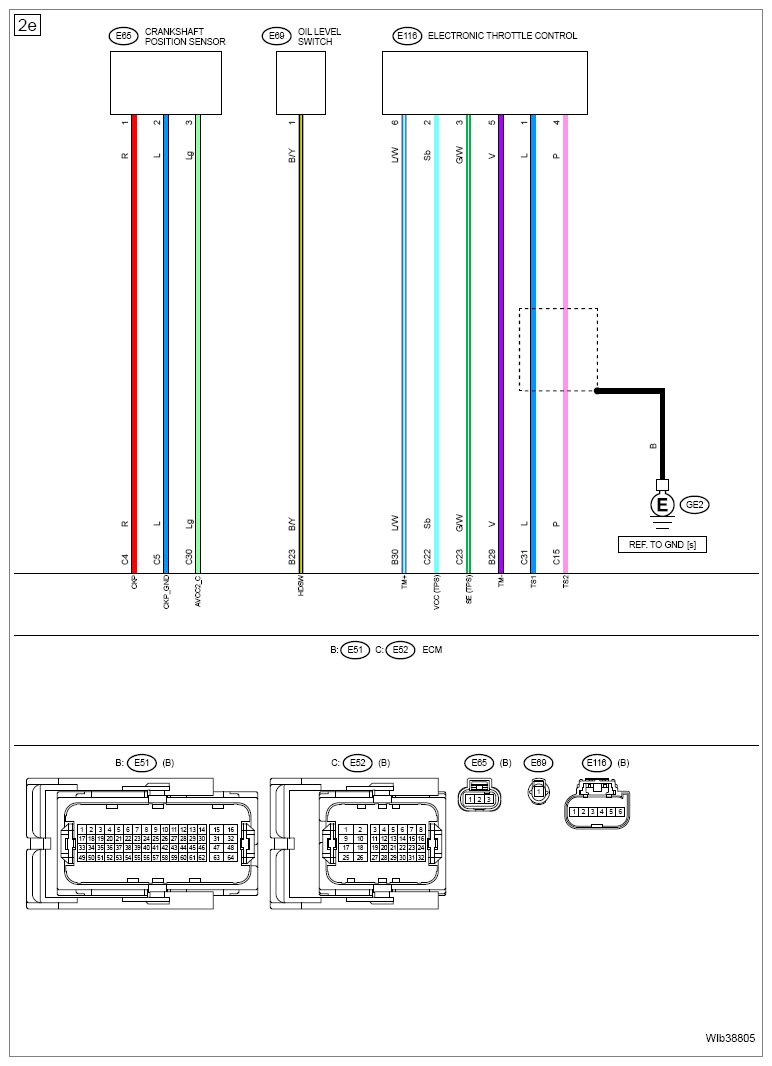

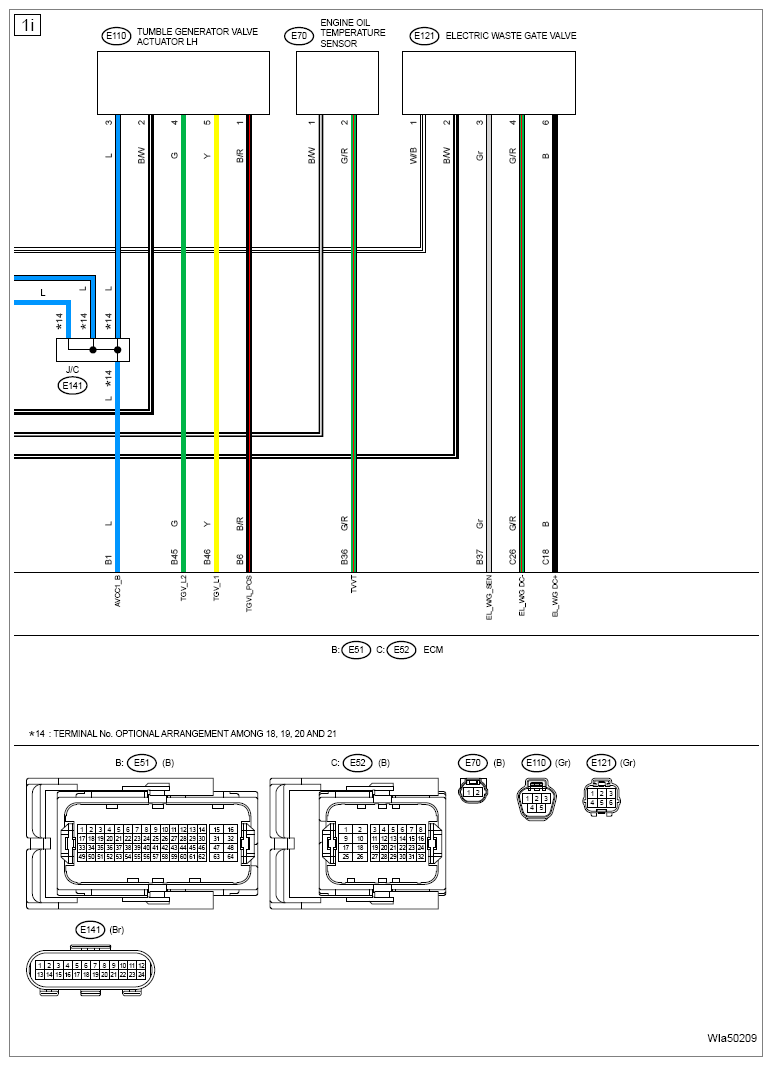

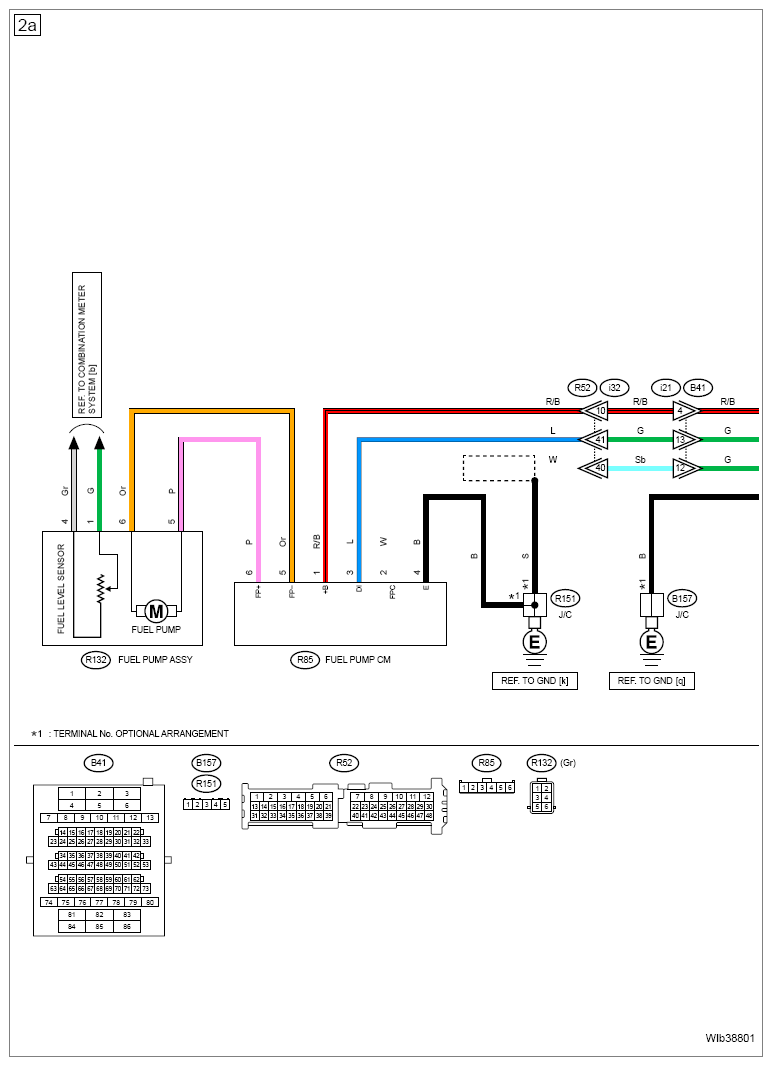

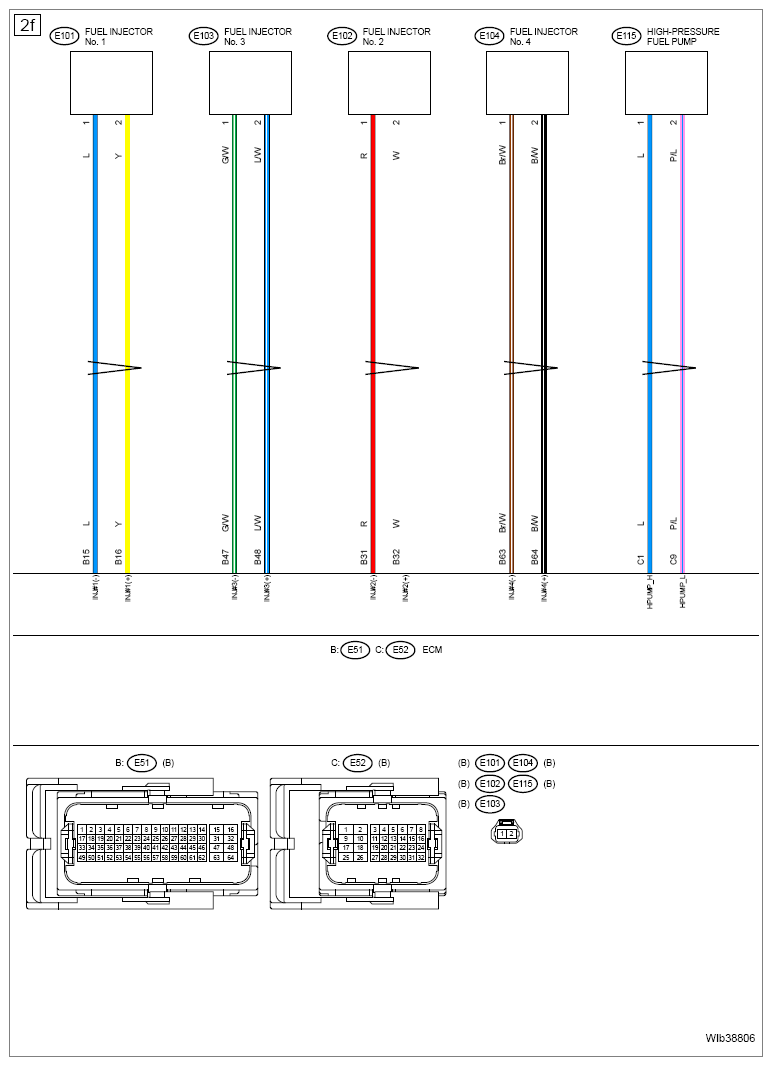

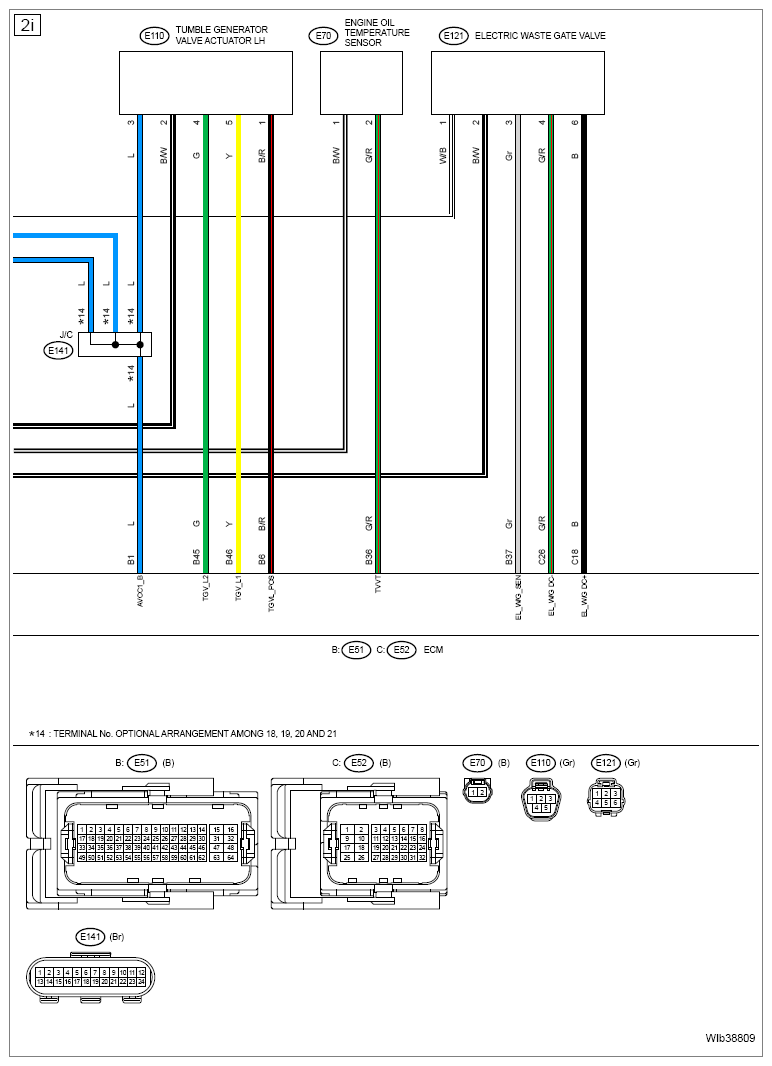

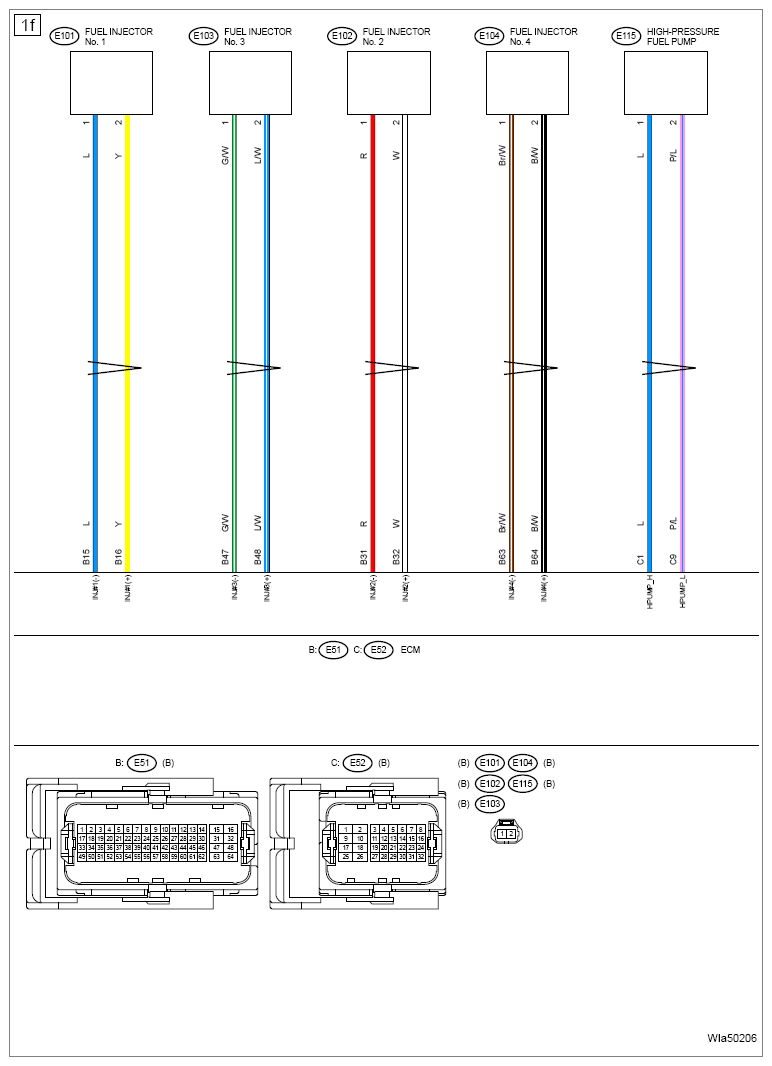

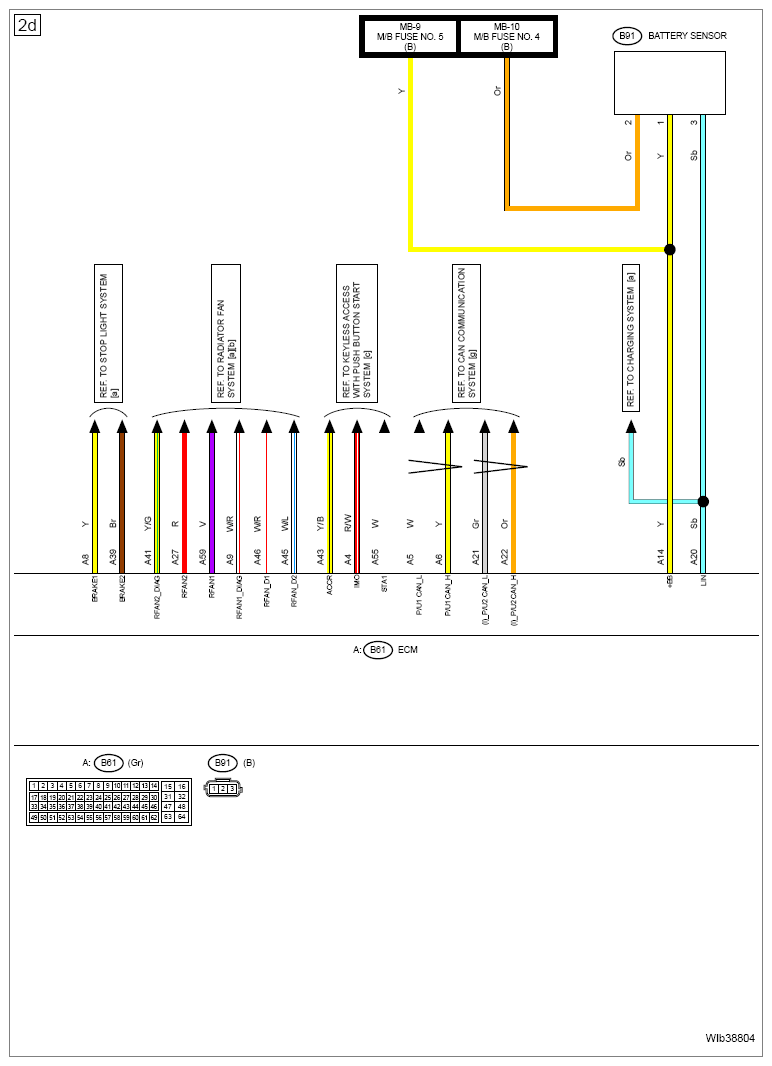

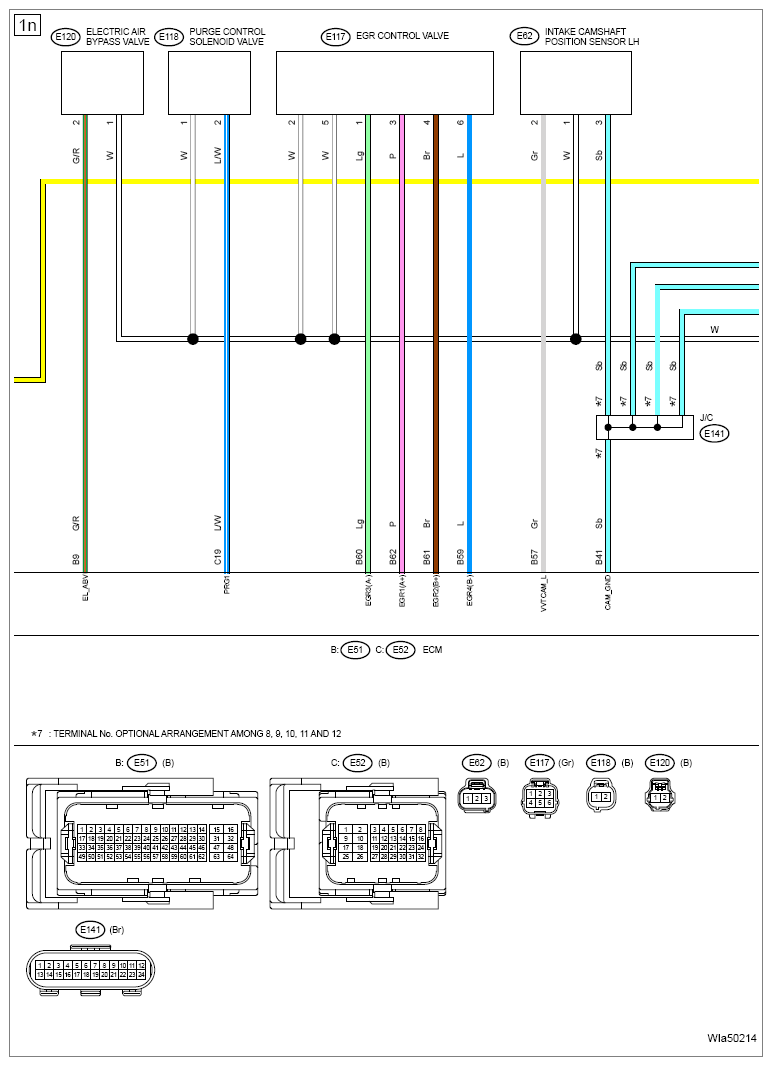

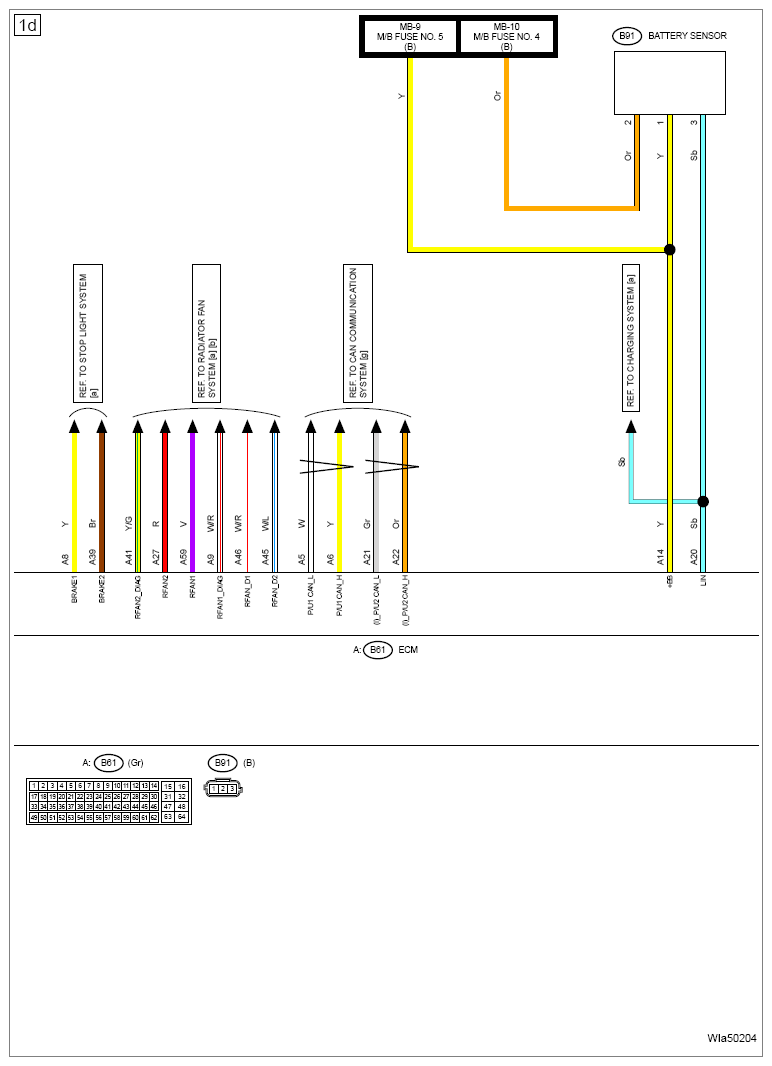

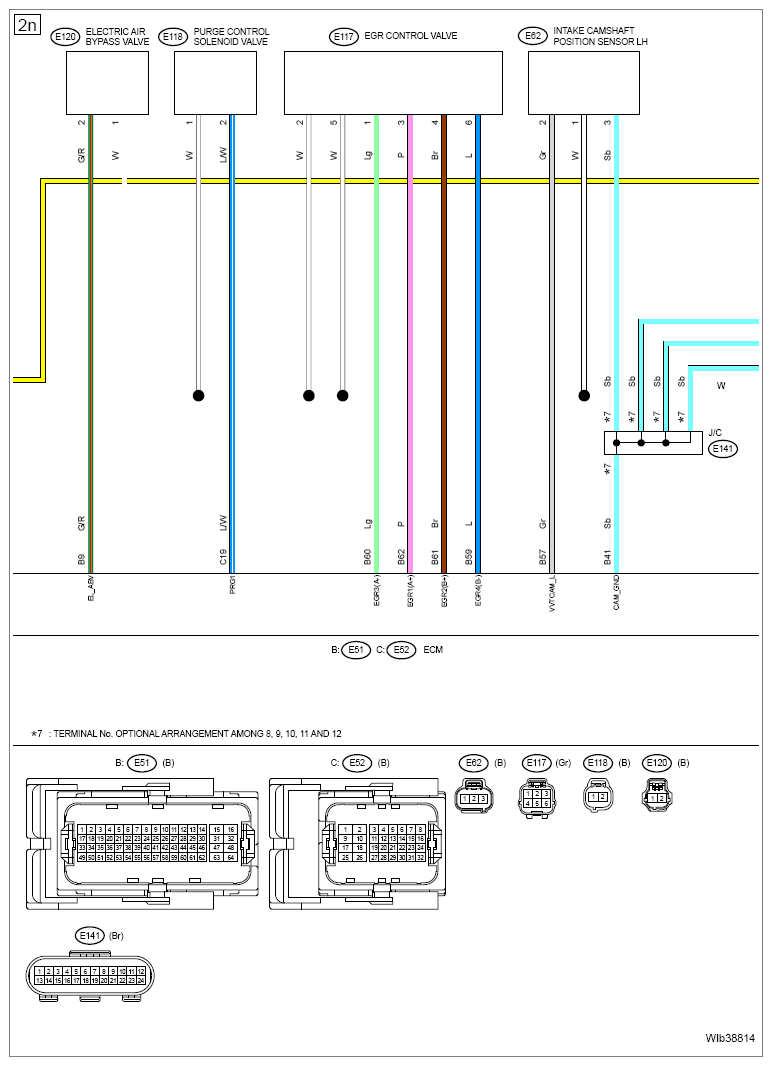

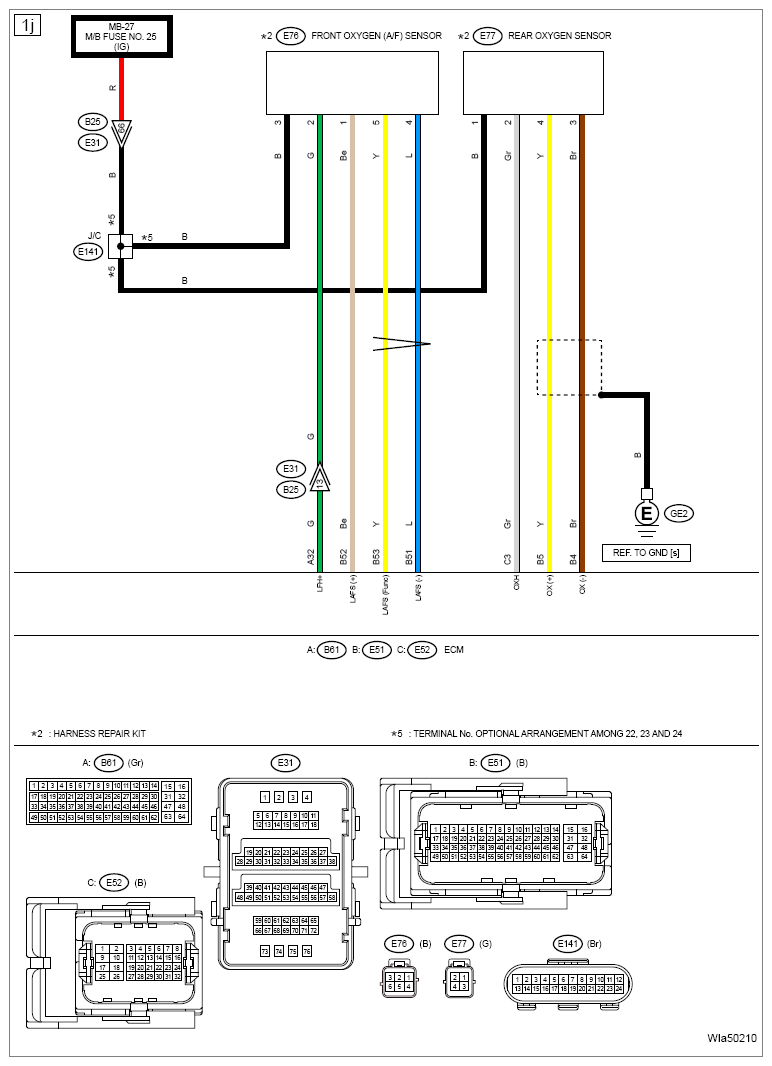

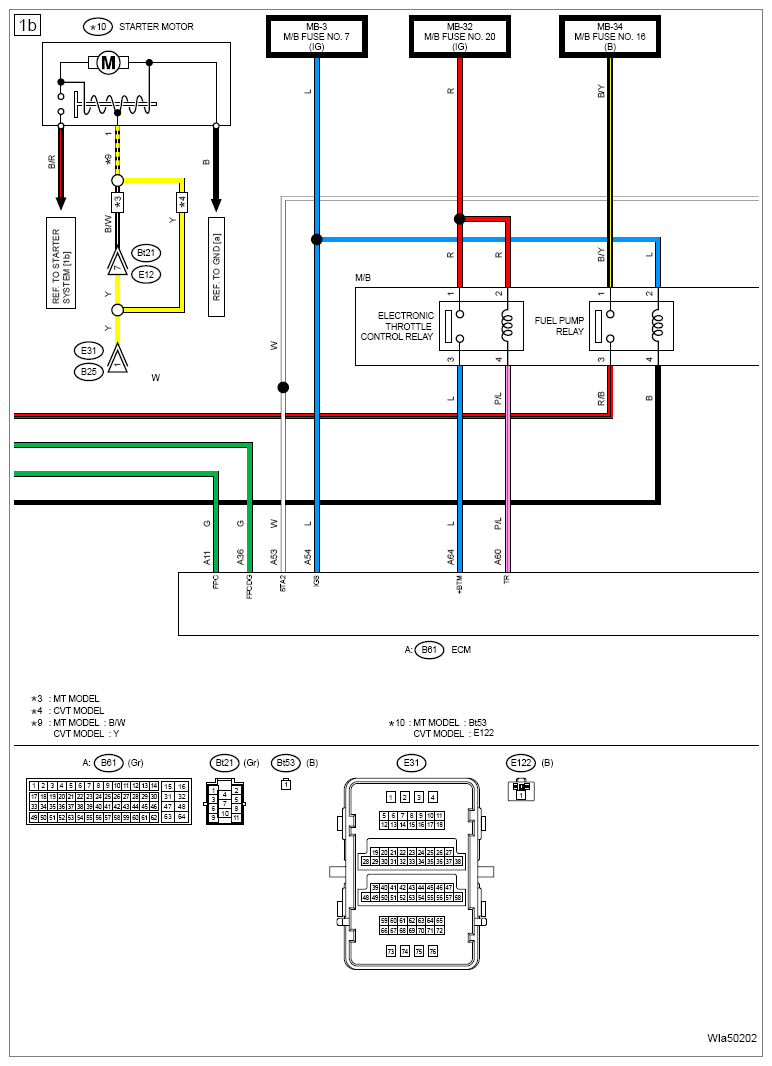

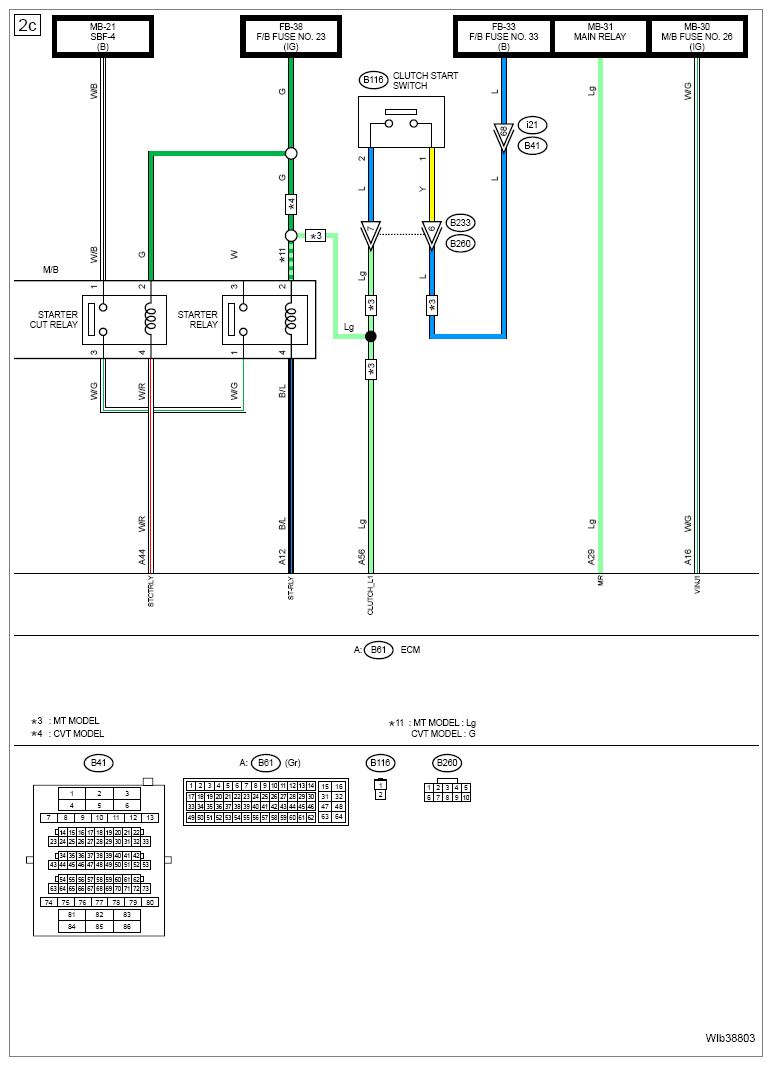

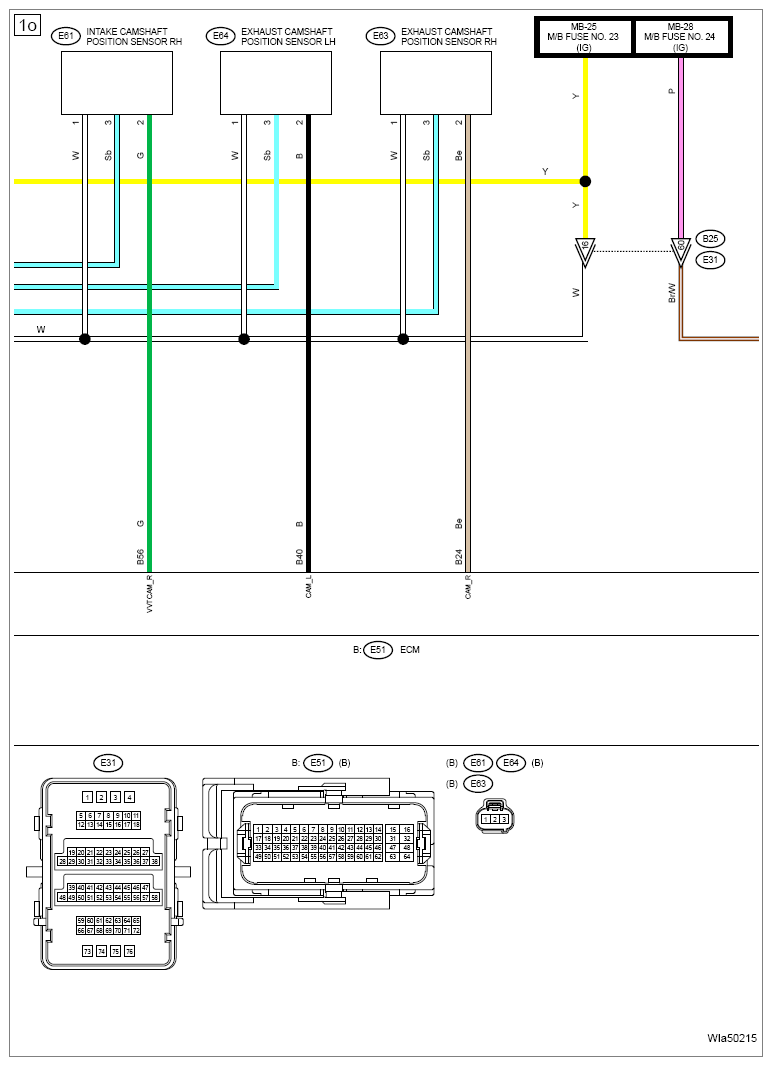

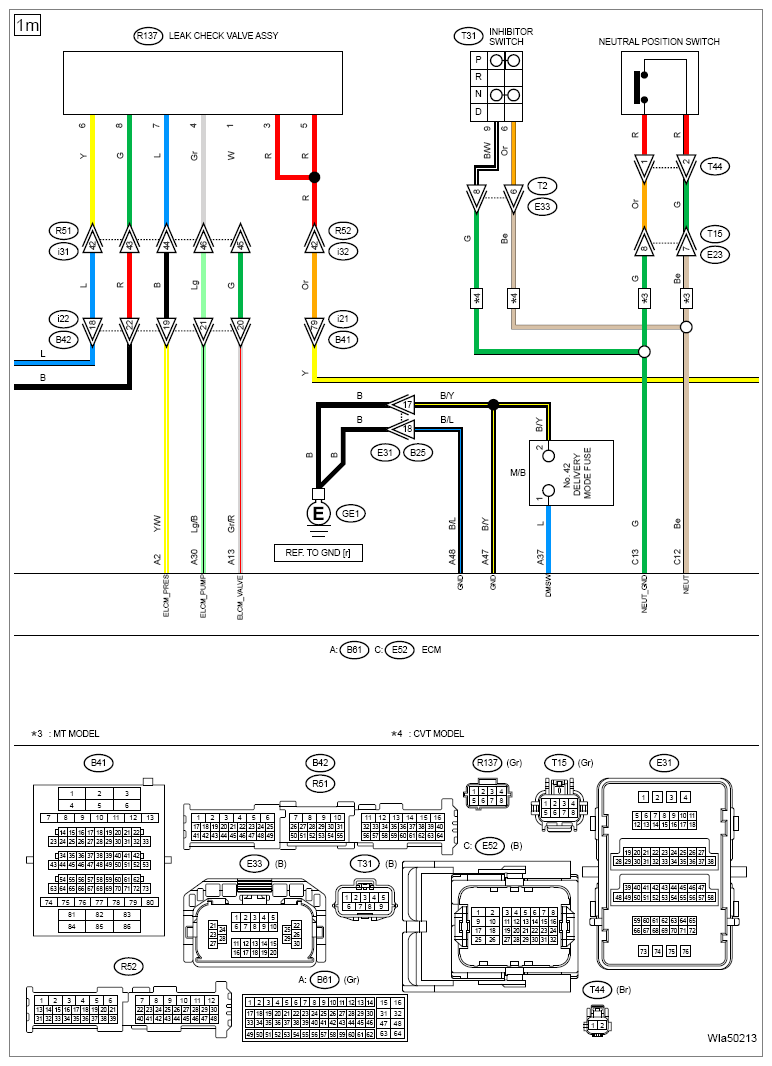

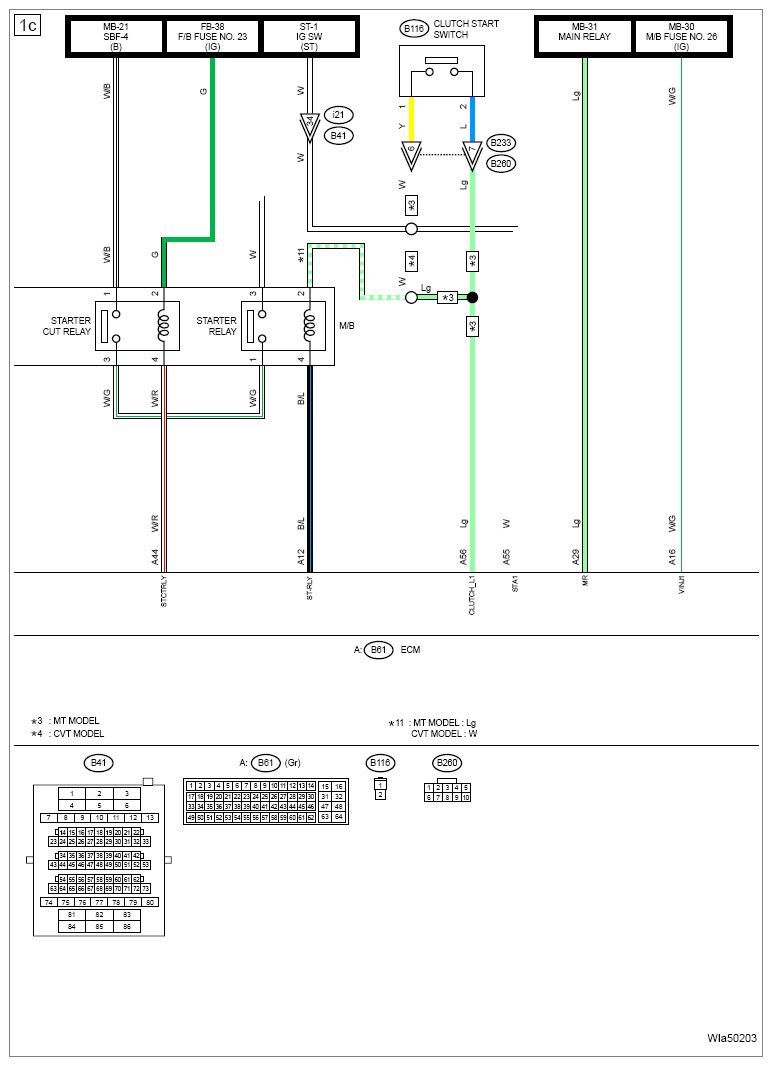

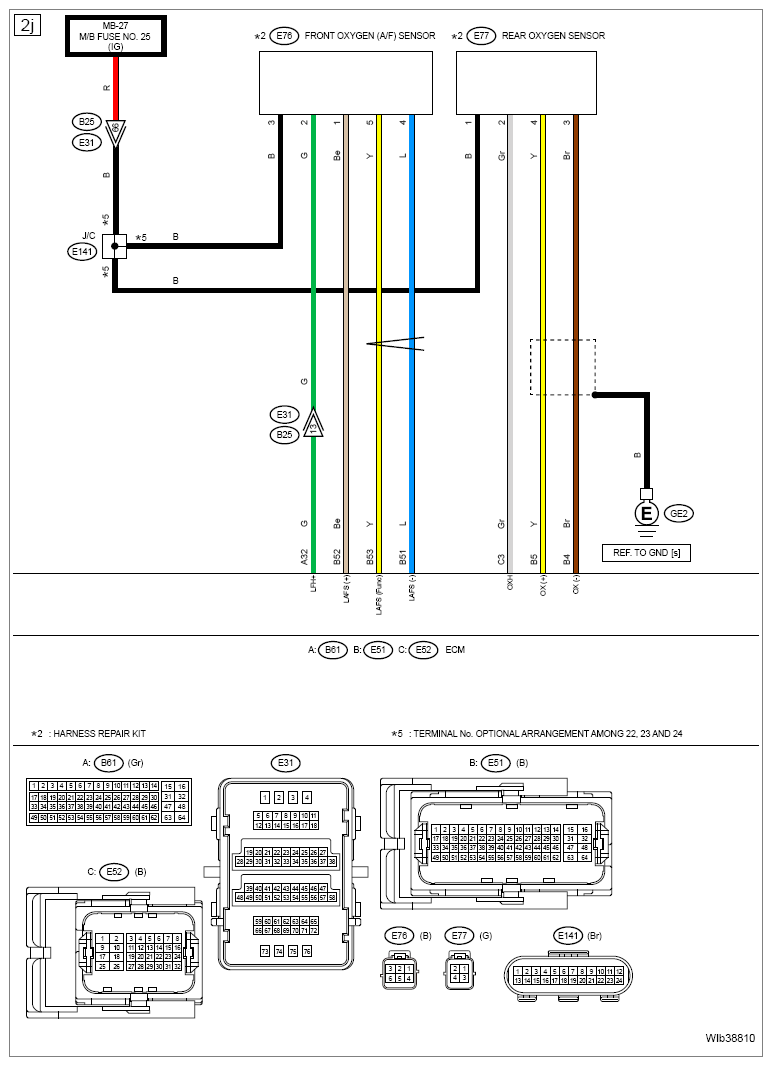

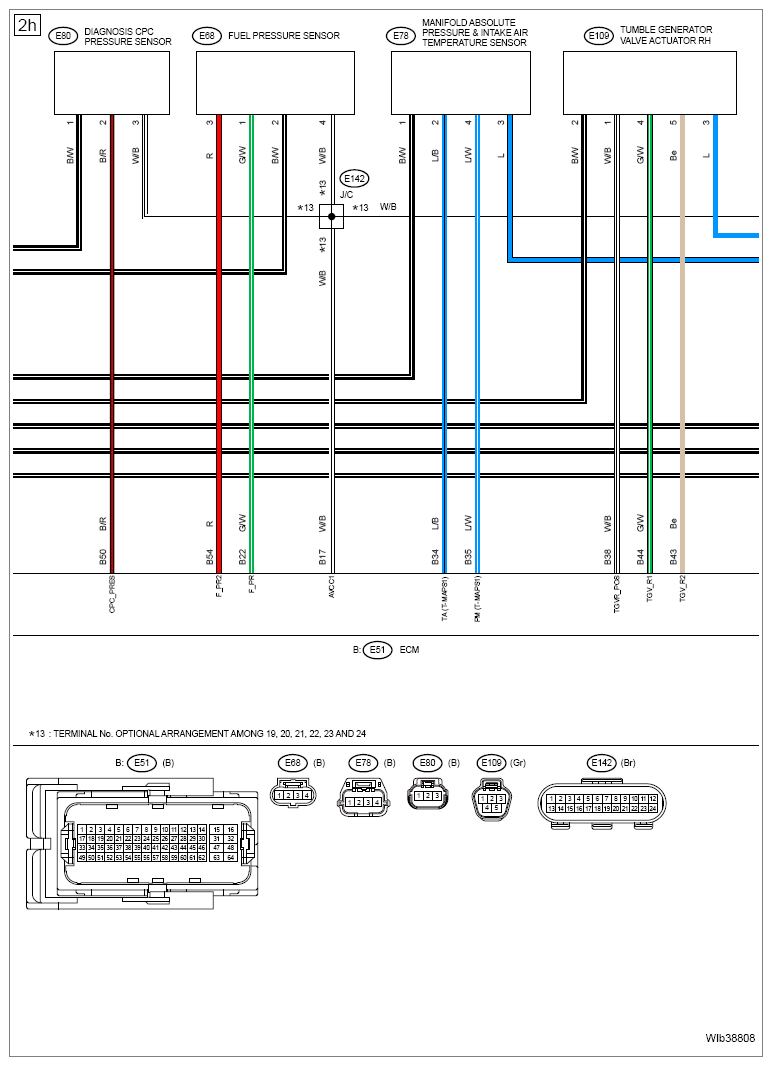

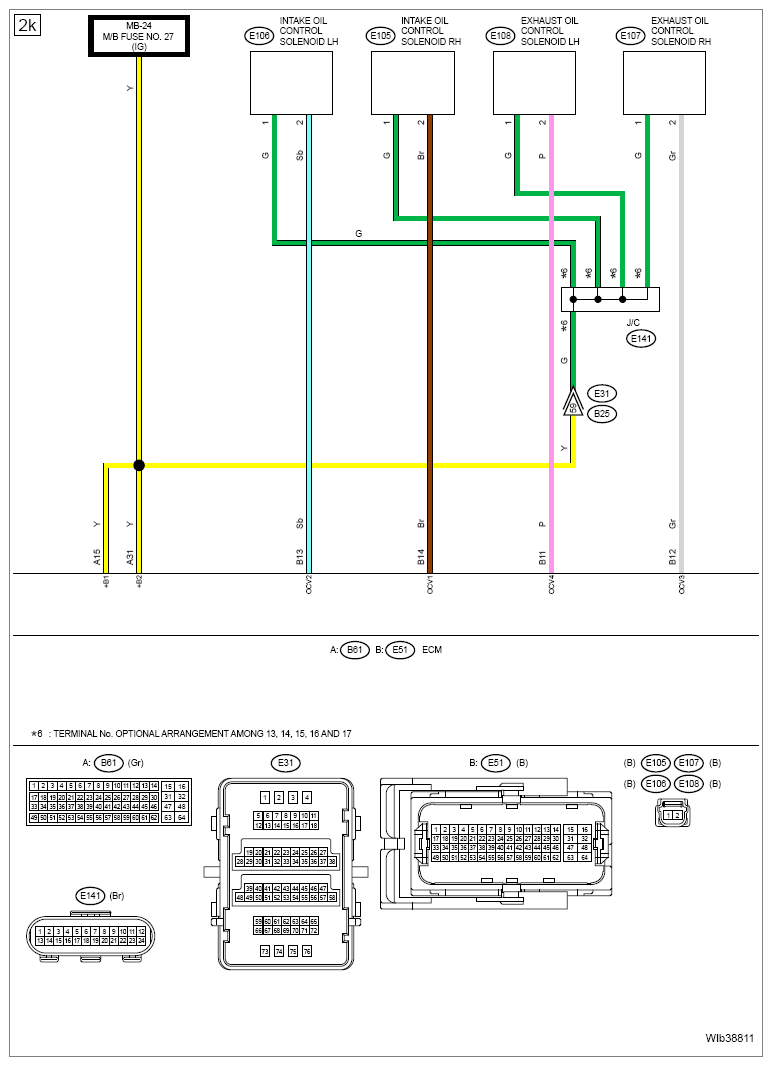

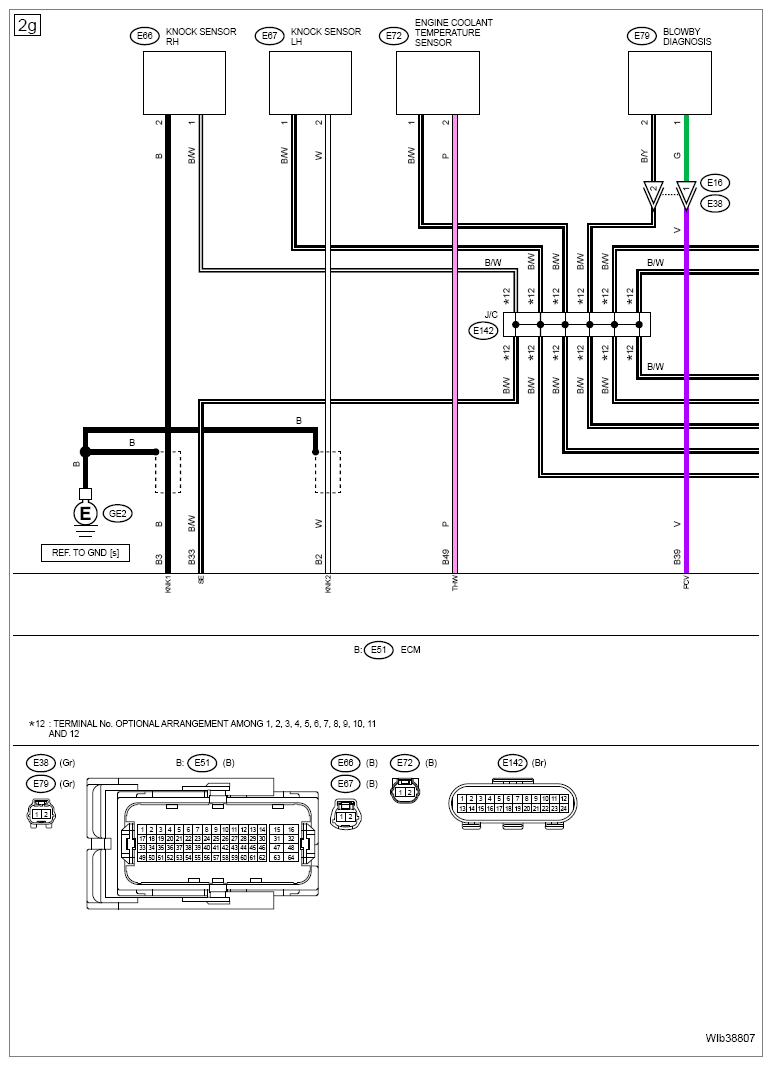

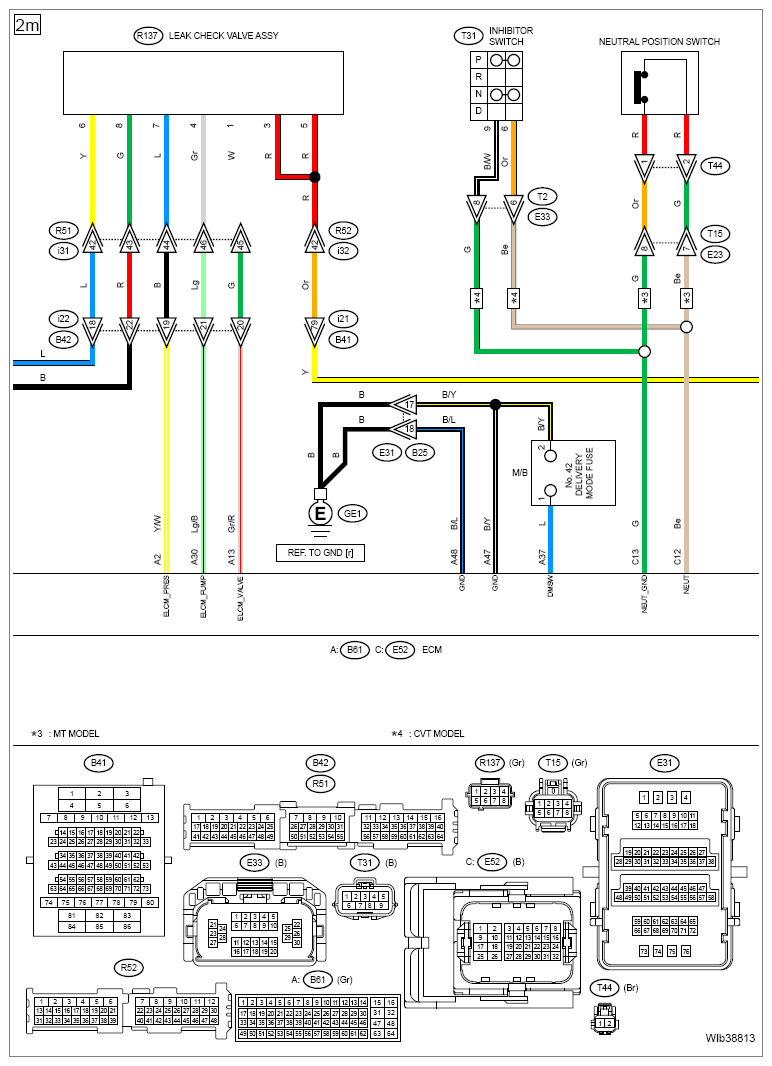

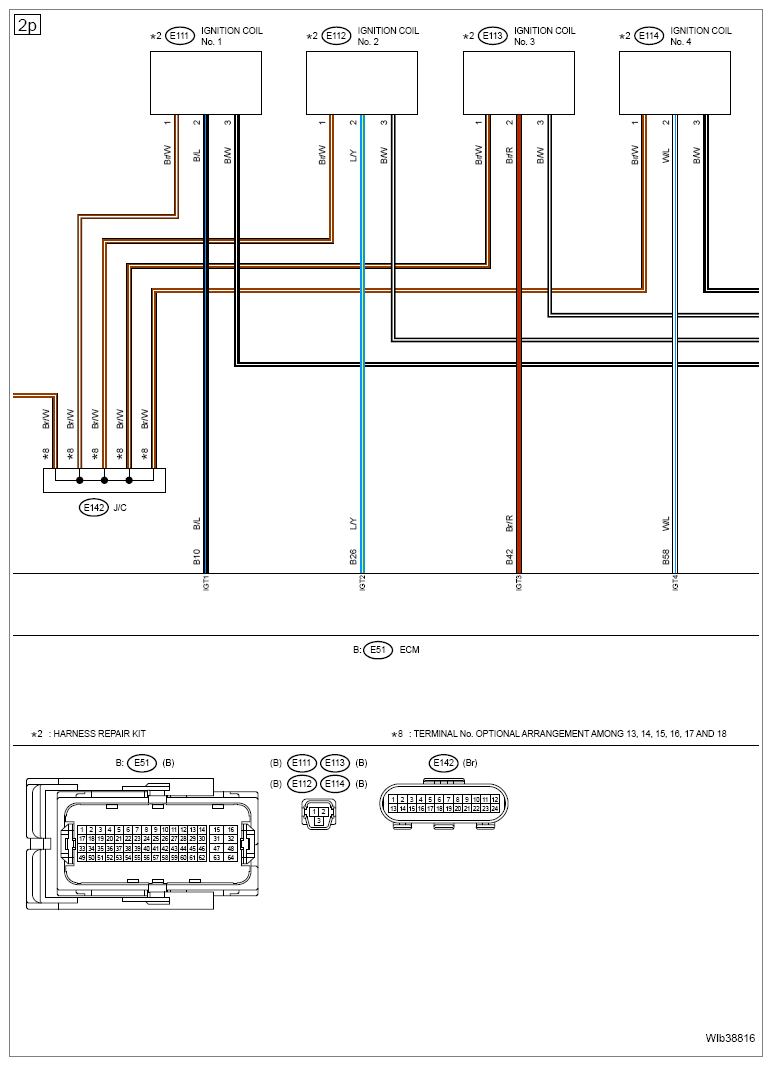

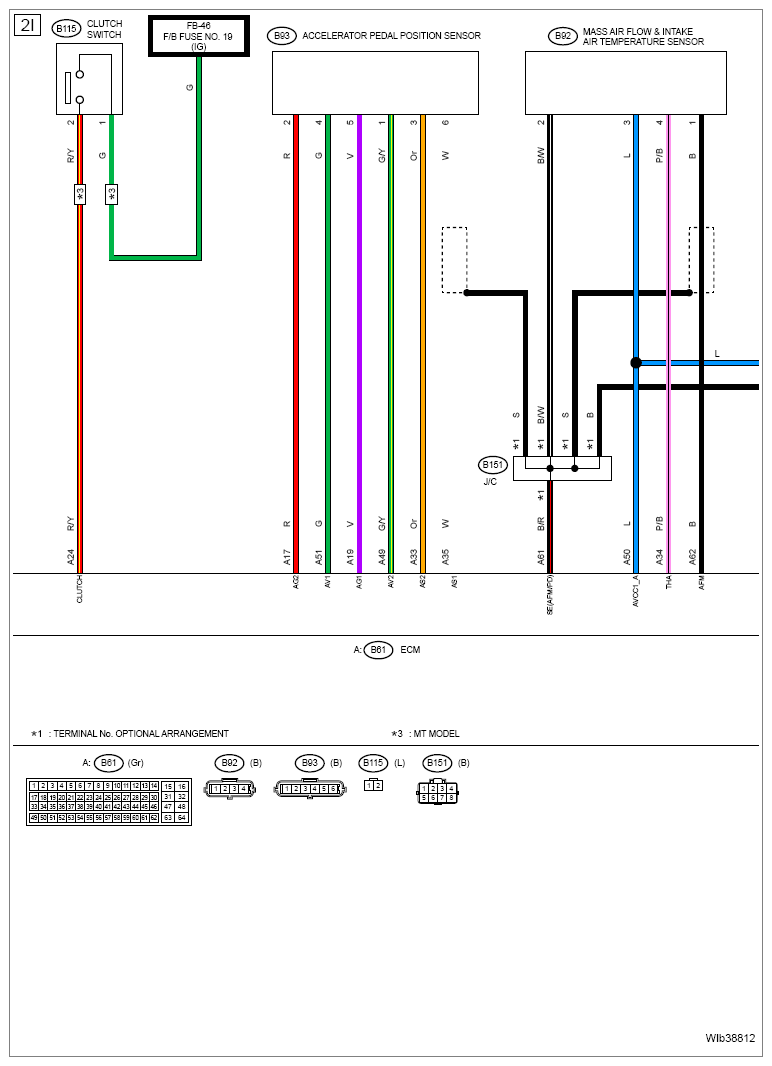

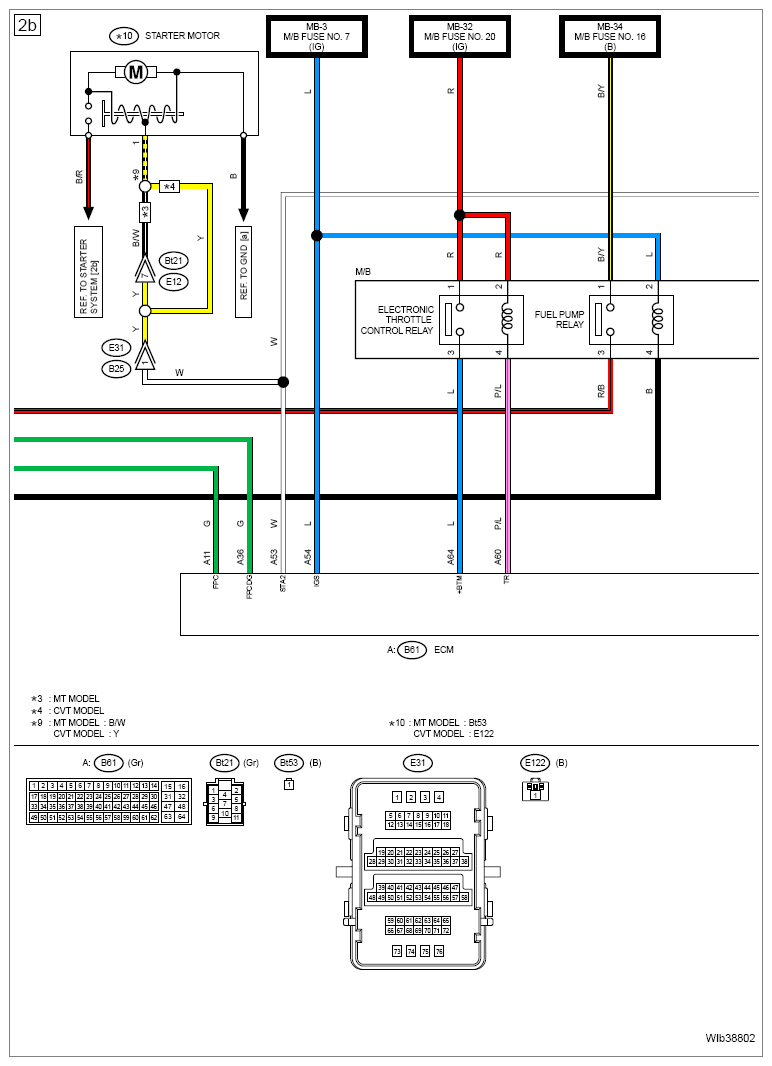

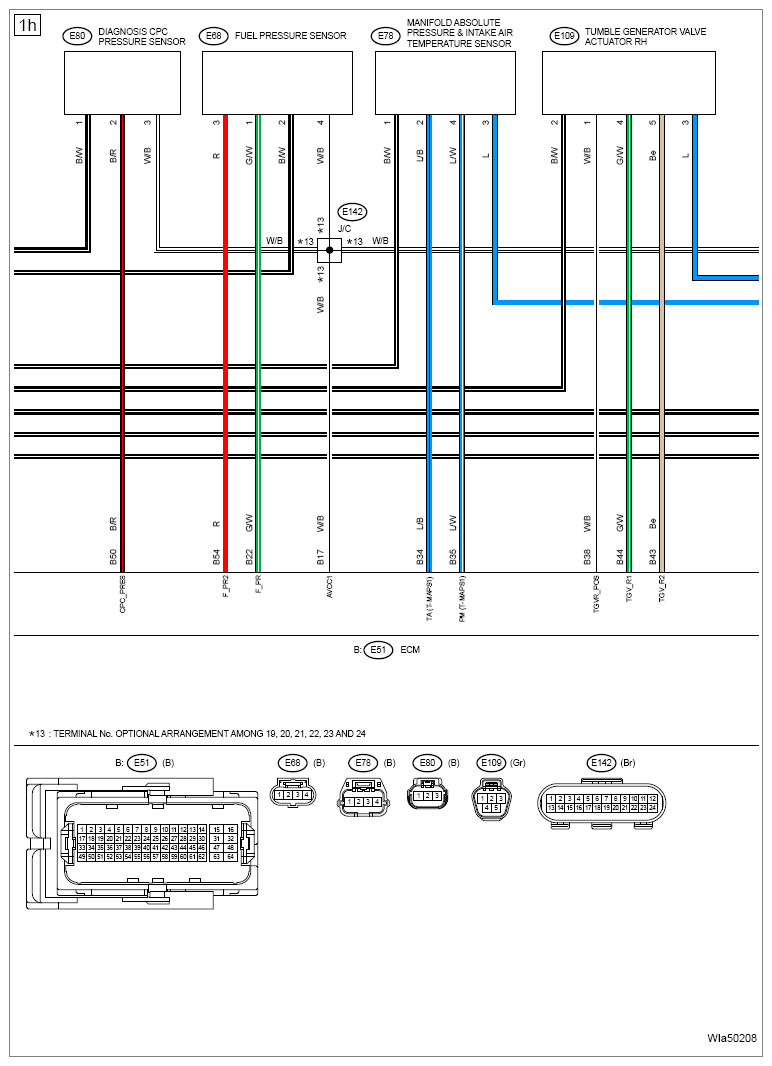

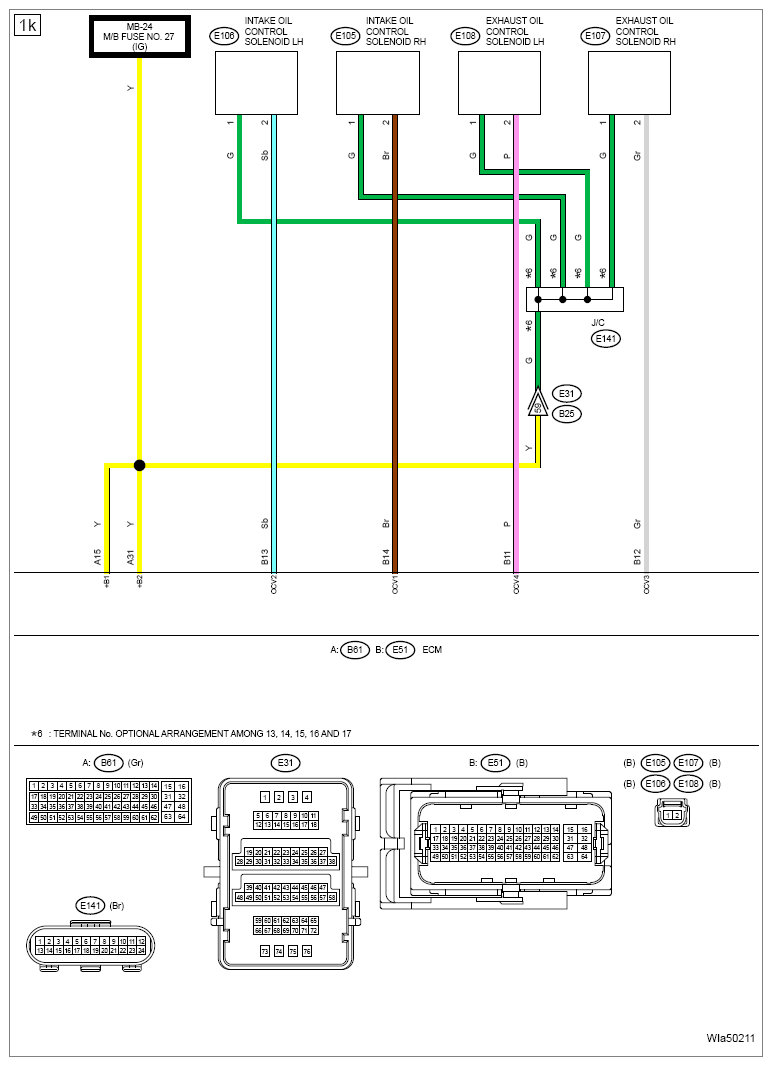

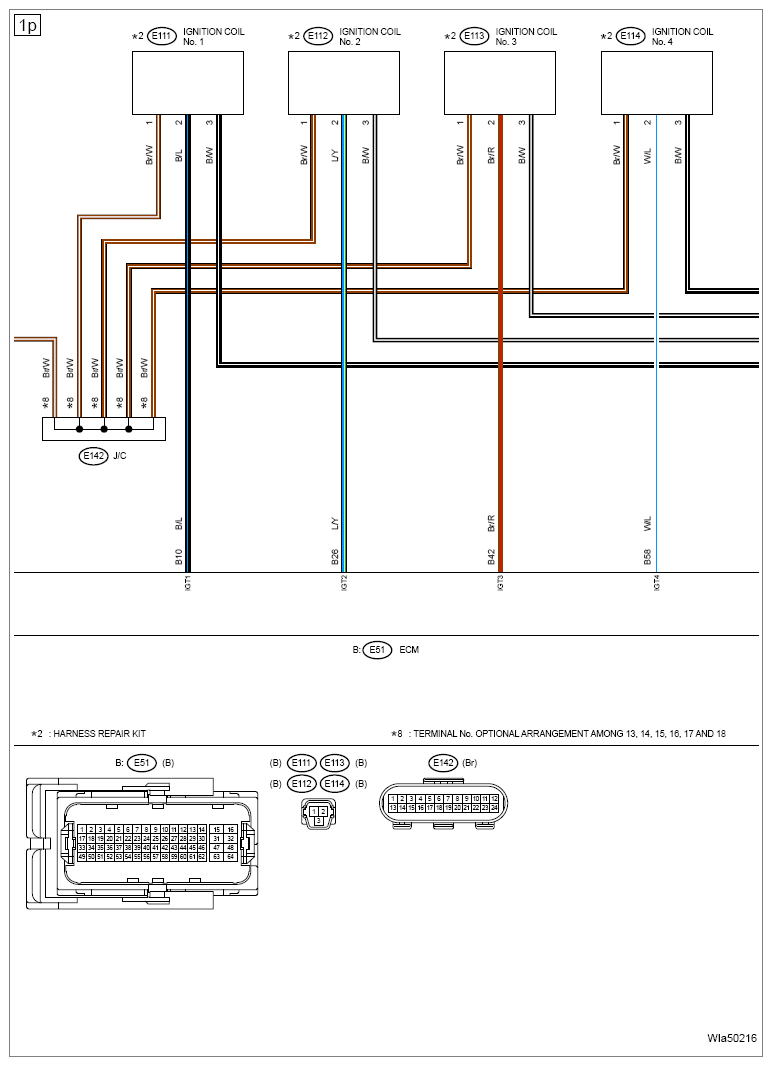

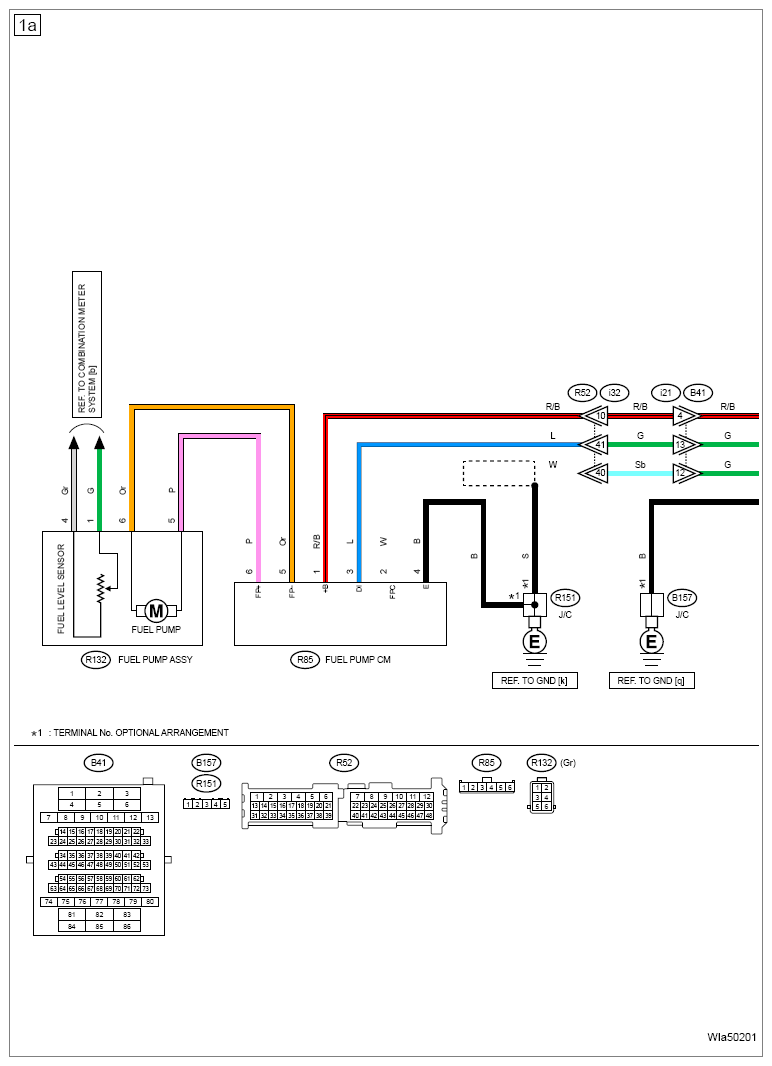

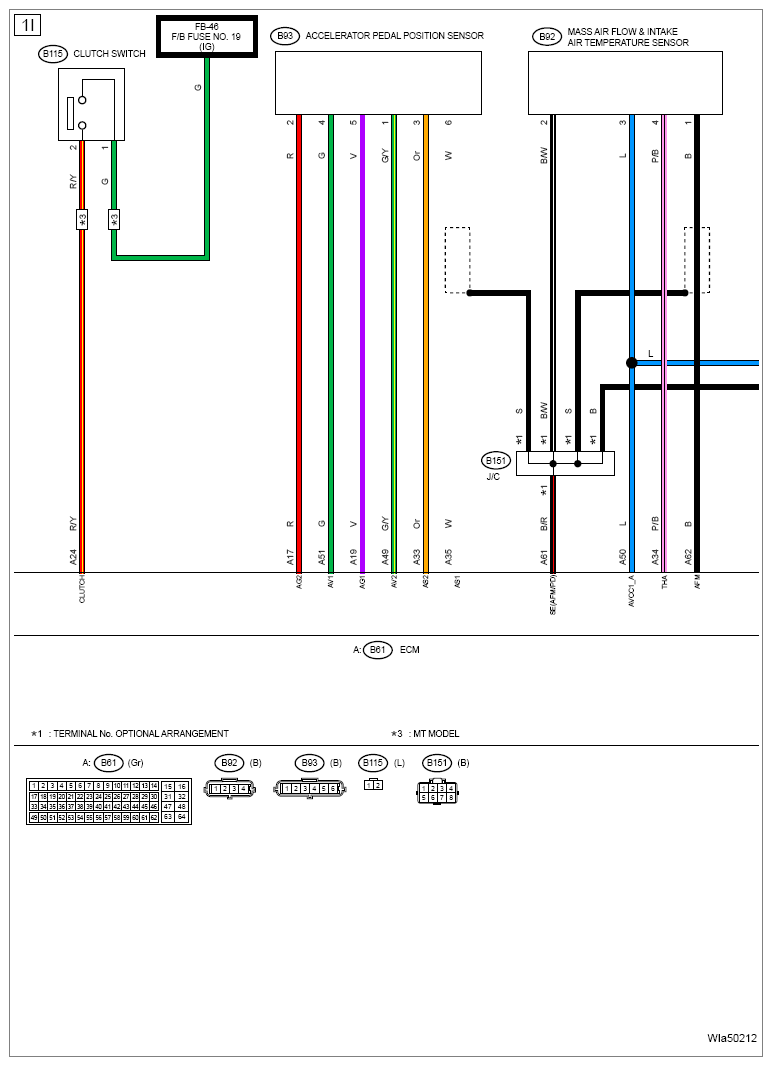

Engine Electrical System: Wiring Diagram
