Airbag System: Wiring Diagram

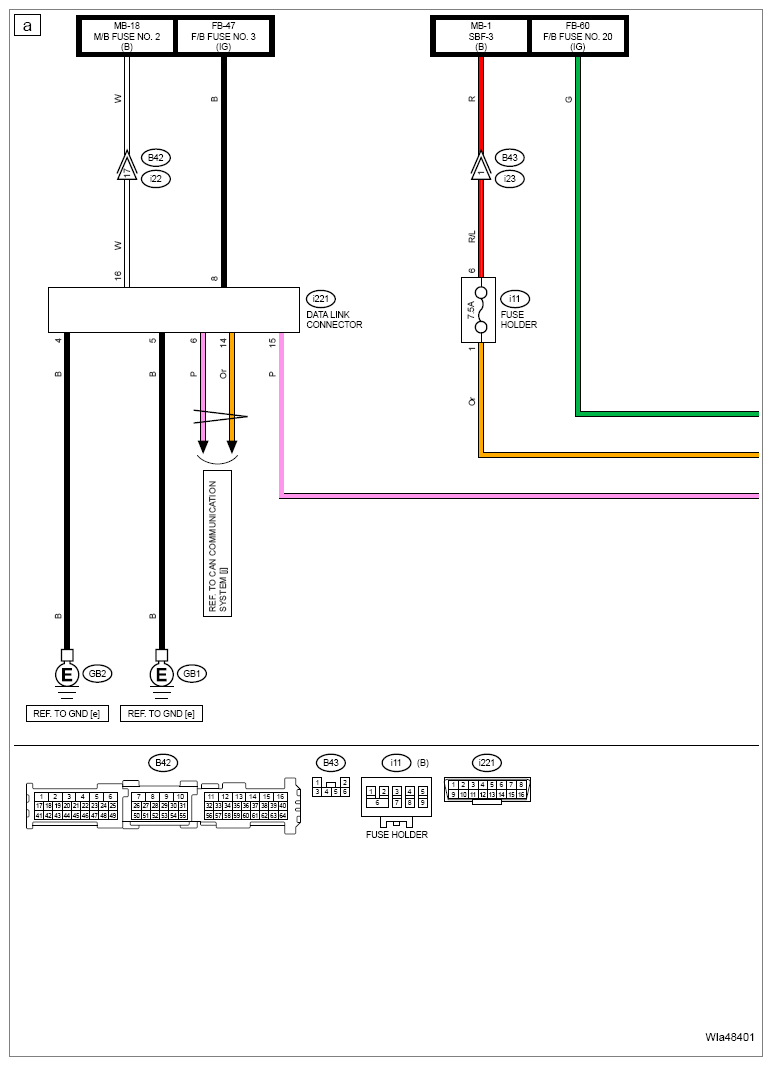

G16541681Courtesy of SUBARU OF AMERICA, INC.

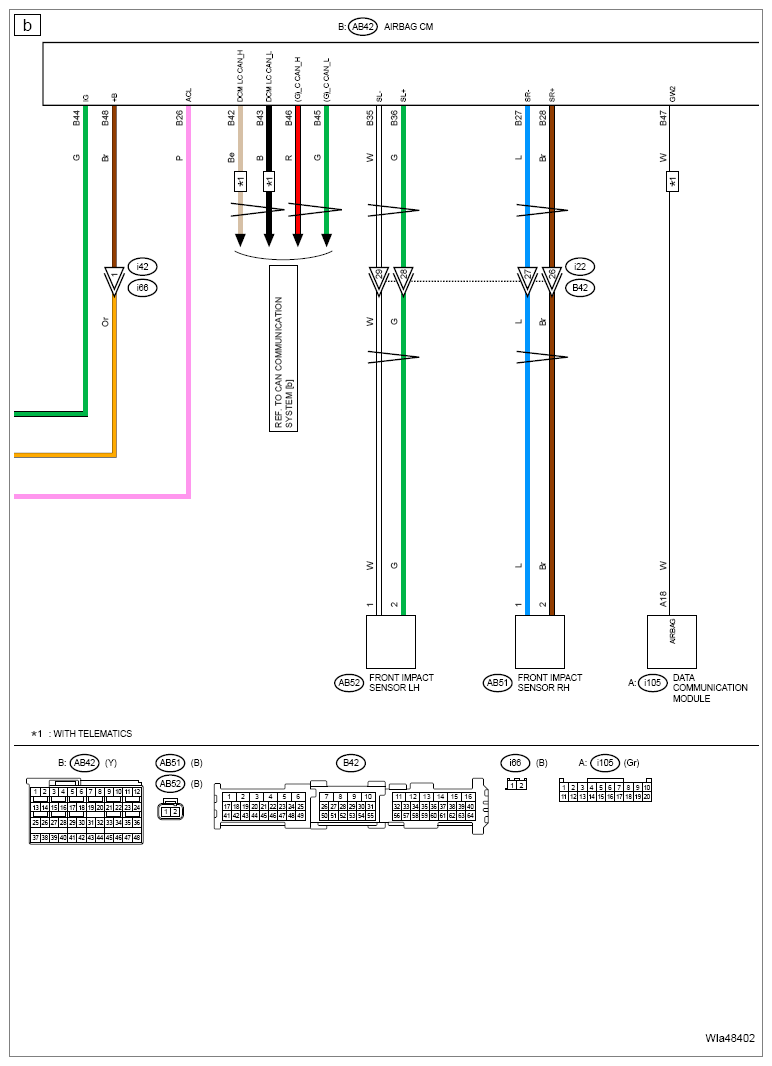

G16541682Courtesy of SUBARU OF AMERICA, INC.

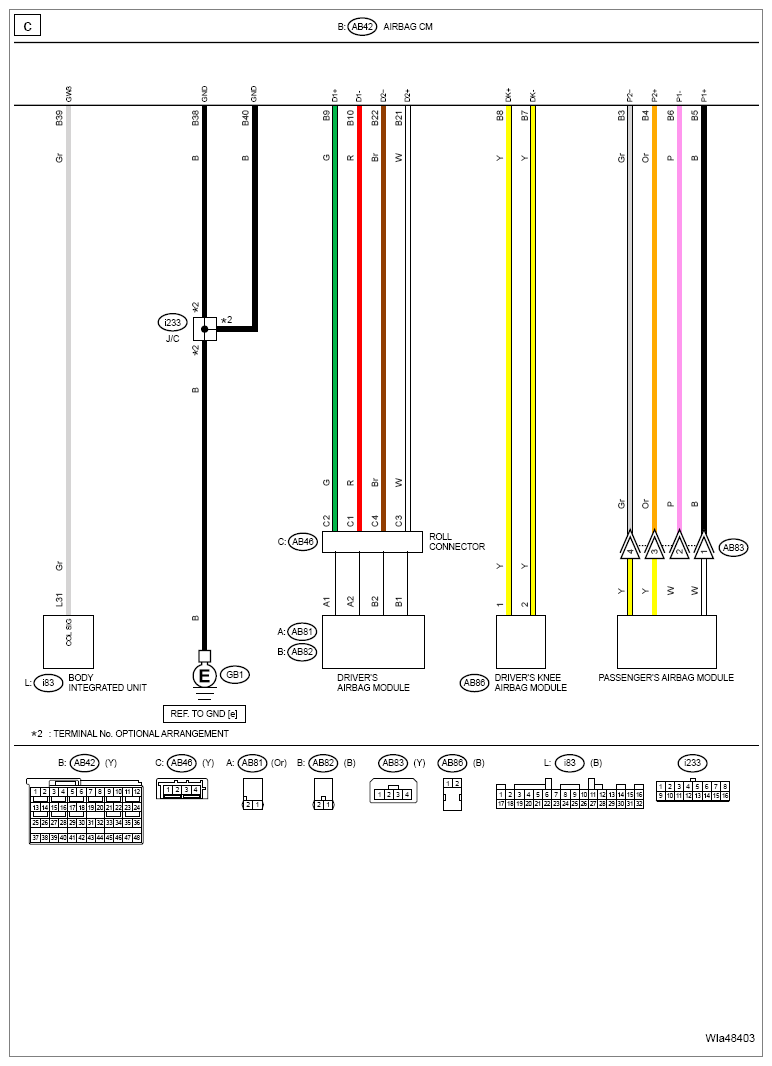

G16541683Courtesy of SUBARU OF AMERICA, INC.

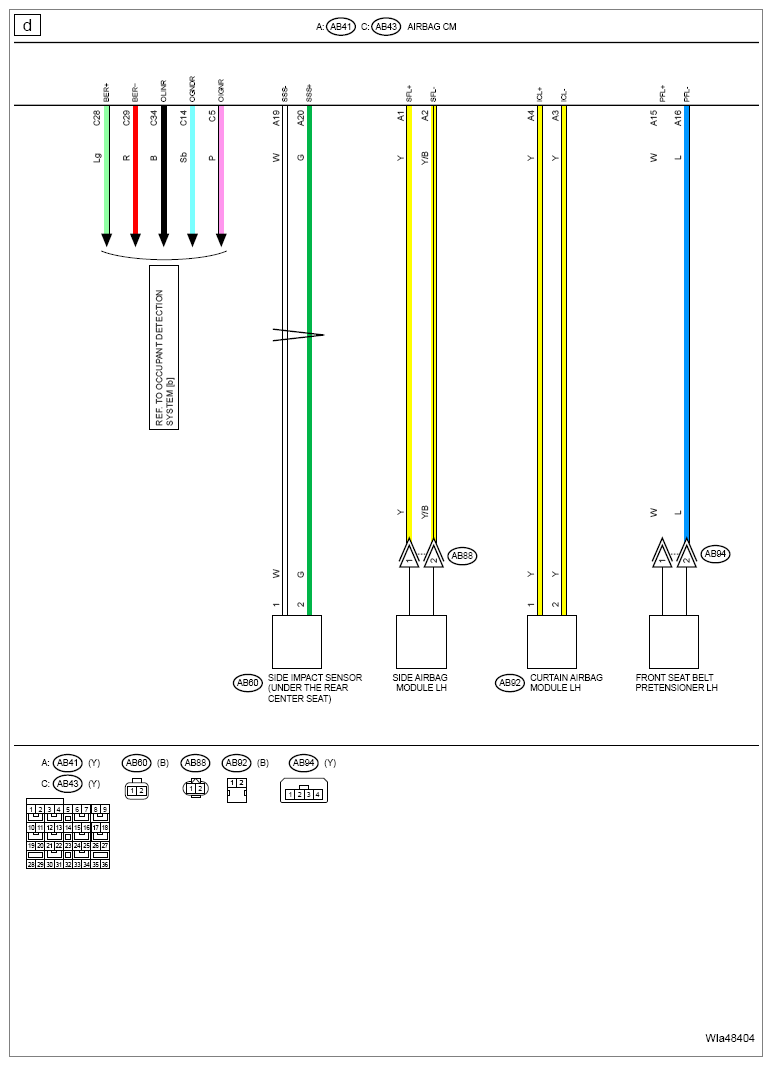

G16541684Courtesy of SUBARU OF AMERICA, INC.

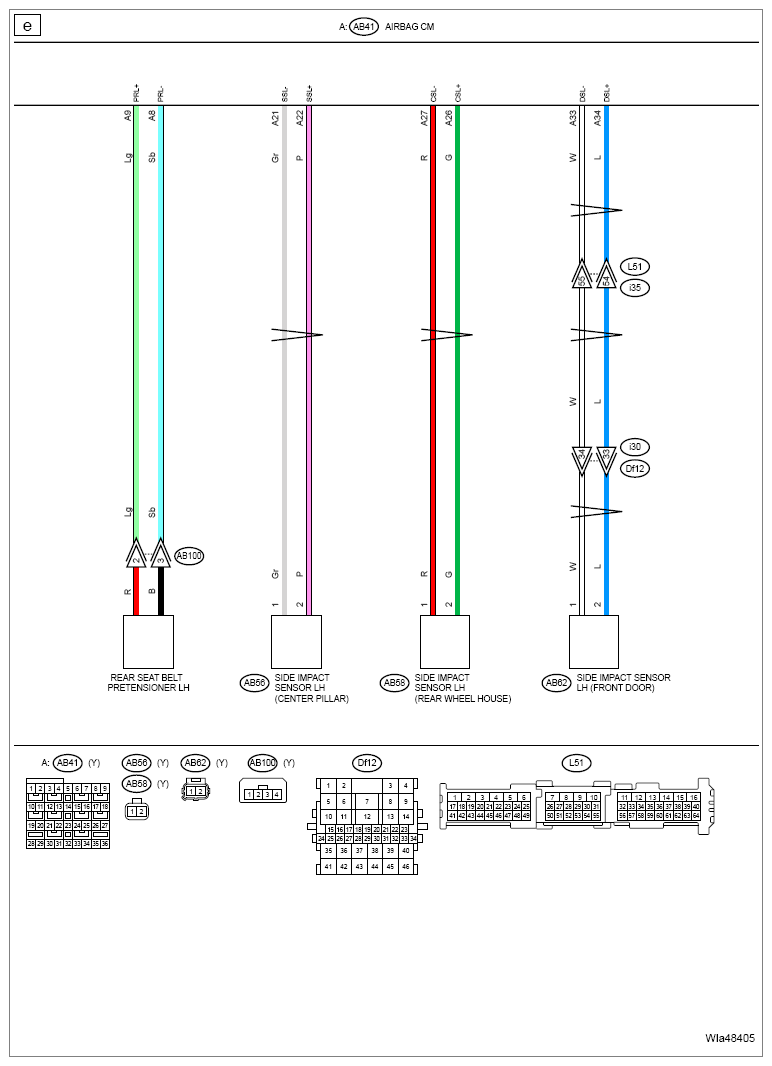

G16541685Courtesy of SUBARU OF AMERICA, INC.

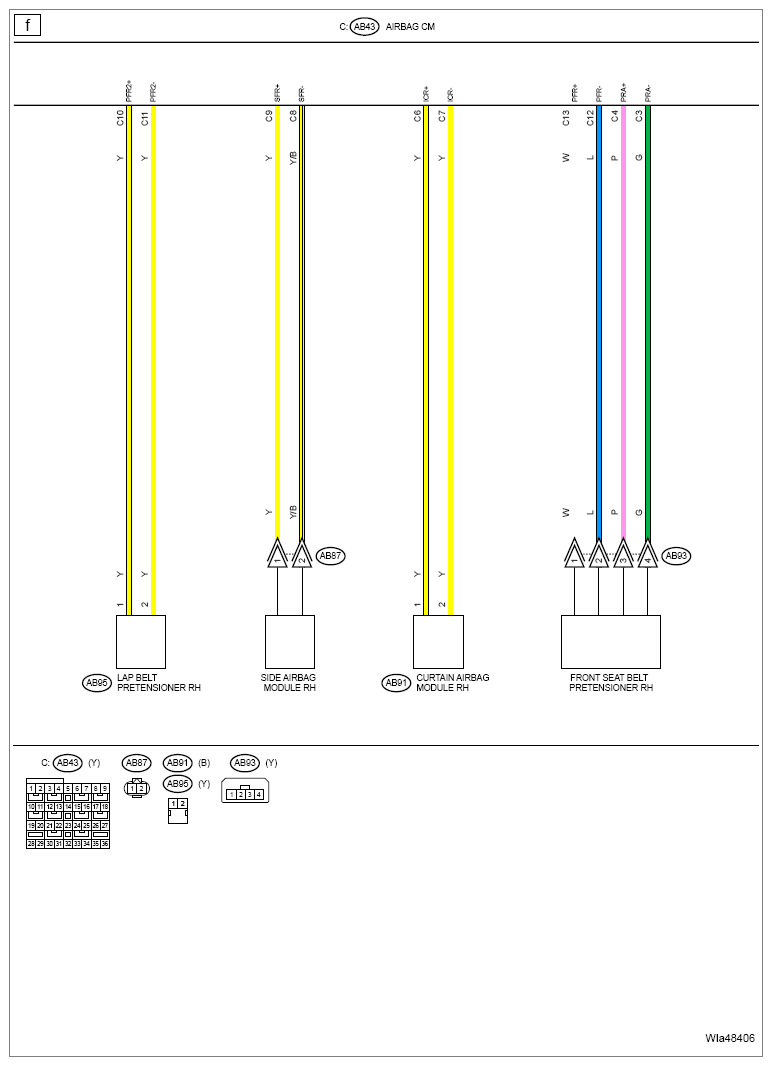

G16541686Courtesy of SUBARU OF AMERICA, INC.

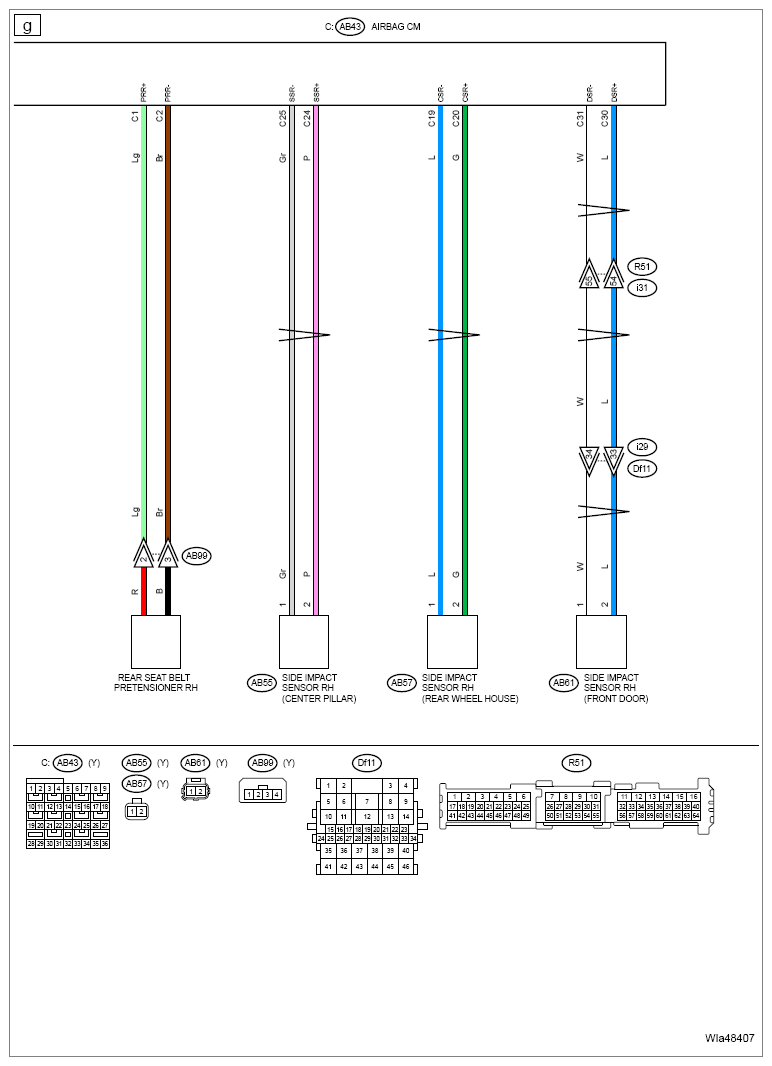

G16541687Courtesy of SUBARU OF AMERICA, INC.
