Connector & Harness

Route the harness by referring to the following.

• Driver's seat
  • Manual seat model

    Courtesy of SUBARU OF AMERICA, INC.

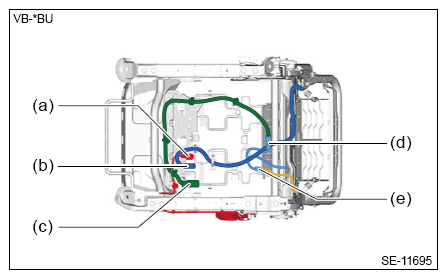

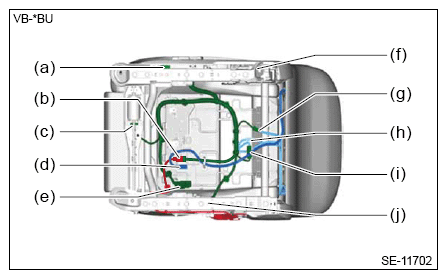

    (a)	Seat belt connector
    (b)	Side airbag connector
    (c)	Integrated connector
    (d)	Cushion heater connector
    (e)	Backrest heater connector

    Courtesy of SUBARU OF AMERICA, INC.

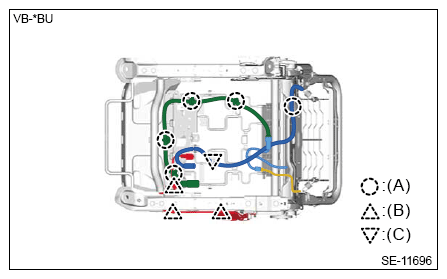

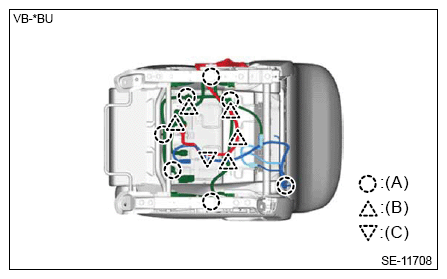

    (A)	Harness clamp
    (B)	Harness clamp
    (C)	Harness holder (panel front wire)

    Courtesy of SUBARU OF AMERICA, INC.

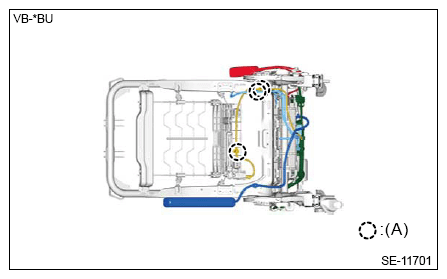

    (A)	Harness clamp

  • Model with power seat (except for RECARO® seat)

    Courtesy of SUBARU OF AMERICA, INC.

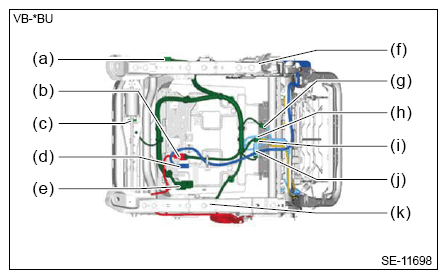

    (a)	Power seat switch connector
    (b)	Seat belt connector
    (c)	Slide motor connector
    (d)	Side airbag connector
    (e)	Integrated connector
    (f)	Lifter motor connector
    (g)	Reclining harness connector
    (h)	Backrest heater connector
    (i)	Lumbar harness connector
    (j)	Cushion heater connector
    (k)	Tilt motor connector

    Courtesy of SUBARU OF AMERICA, INC.

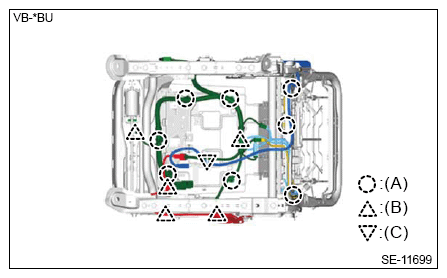

    (A)	Harness clamp
    (B)	Harness clamp
    (C)	Harness holder (panel front wire)

    Courtesy of SUBARU OF AMERICA, INC.

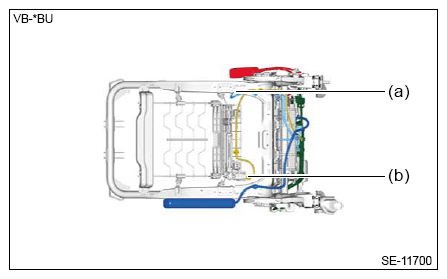

    (a) Reclining motor connector

    (b) Lumbar motor connector

    Courtesy of SUBARU OF AMERICA, INC.

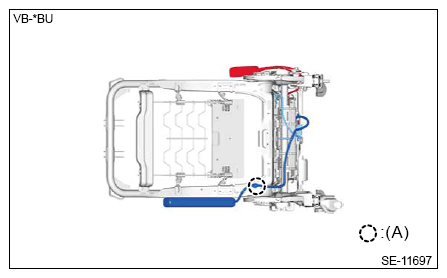

    (A)	Harness clamp

  • Model with power seat (RECARO® seat)

    Courtesy of SUBARU OF AMERICA, INC.

    (a)	Power seat switch connector
    (b)	Seat belt connector
    (c)	Slide motor connector
    (d)	Side airbag connector
    (e)	Integrated connector
    (f)	Lifter motor connector
    (g)	Reclining harness connector
    (h)	Backrest heater connector
    (i)	Cushion heater connector
    (j)	Tilt motor connector

    Courtesy of SUBARU OF AMERICA, INC.

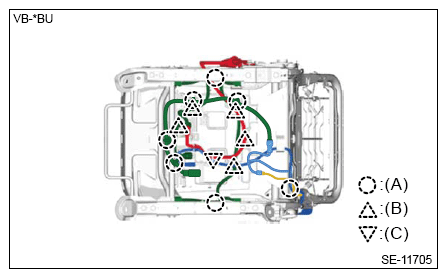

    (A)	Harness clamp
    (B)	Harness clamp
    (C)	Harness holder (panel front wire)

• Passenger's seat
  • Manual seat model (except for RECARO® seat)

    Courtesy of SUBARU OF AMERICA, INC.

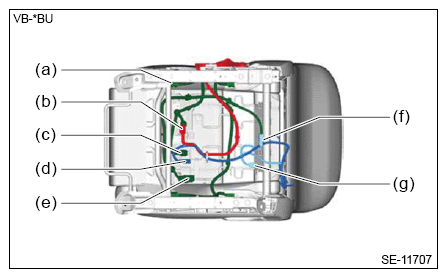

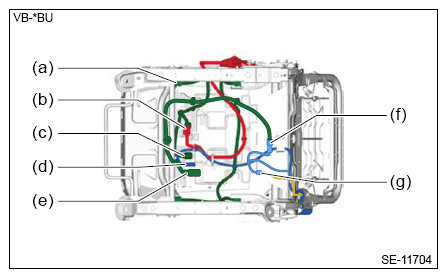

    (a)	Load sensor
    (b)	Seat belt connector
    (c)	Load sensor connector
    (d)	Side airbag connector
    (e)	Integrated connector
    (f)	Cushion heater connector
    (g)	Backrest heater connector

    Courtesy of SUBARU OF AMERICA, INC.

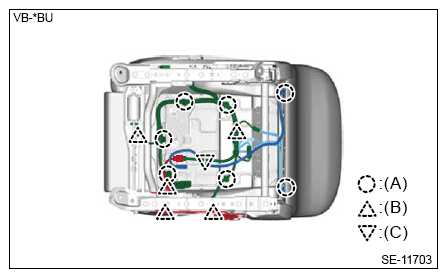

    (A)	Harness clamp
    (B)	Harness clamp
    (C)	Harness holder (panel front wire)

    Courtesy of SUBARU OF AMERICA, INC.

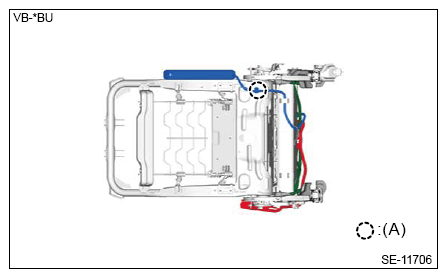

    (A)	Harness clamp

  • Manual seat model (except for RECARO® seat)

    Courtesy of SUBARU OF AMERICA, INC.

    (a)	Load sensor
    (b)	Seat belt connector
    (c)	Load sensor connector
    (d)	Side airbag connector
    (e)	Integrated connector
    (f)	Cushion heater connector
    (g)	Backrest heater connector

    Courtesy of SUBARU OF AMERICA, INC.

    (A)	Harness clamp
    (B)	Harness clamp
    (C)	Harness holder (panel front wire)
