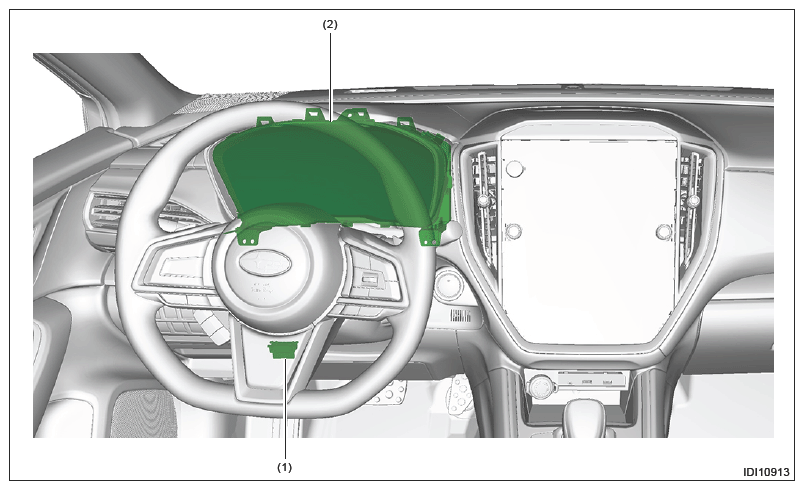

Instrumentation System (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Data link connector
(2)	Combination meter

NOTE: For the CAN communication system, refer to the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION .
