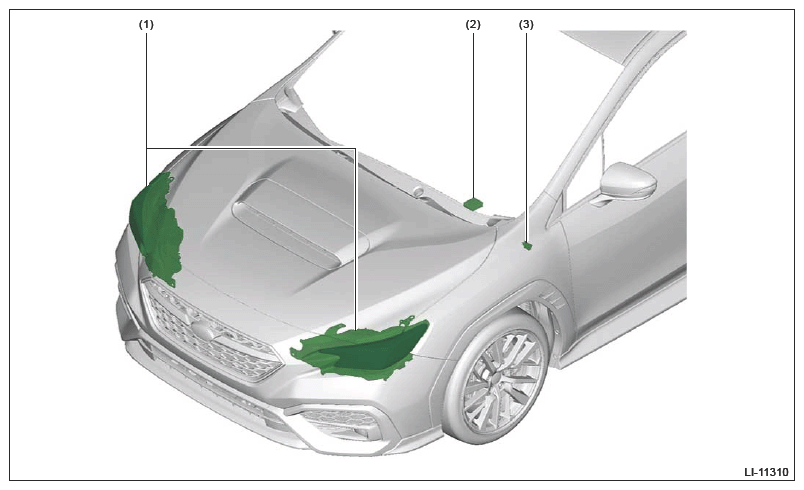

Exterior Lights (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Headlight ASSY
- Headlight beam leveler actuator
- SRH swivel actuator
(2)	Auto headlight beam leveler control module
(3)	Data link connector

NOTE: For the CAN communication system, refer to the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION .
