Side impact sensor (under the rear center seat)

CAUTION:
  • Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .
  3. Remove the cover side sill rear UPR. Ref. to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL .
  4. Remove the Side impact sensor (under the rear center seat).
    CAUTION: Do not detach Side impact sensor (under the rear center seat) from the bracket.
    If Side impact sensor (under the rear center seat) is removed from the bracket, be sure to replace it with a new part.
    1. Turn over the floor mat rear, and remove the plate sensor cover Side impact sensor (under the rear center seat).
    2. Remove the nut, and then remove Side impact sensor (under the rear center seat).
    3. Disconnect the connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>EACH IMPACT SENSOR .

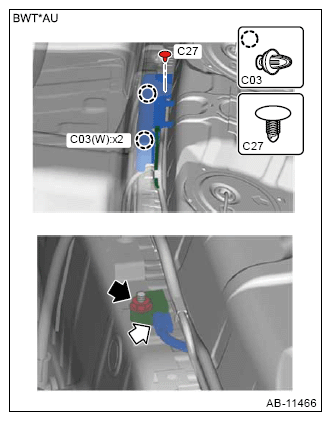

    G13622701Courtesy of SUBARU OF AMERICA, INC.
