Turn Signal Light and Hazard Light System
>>
Wiring Diagram

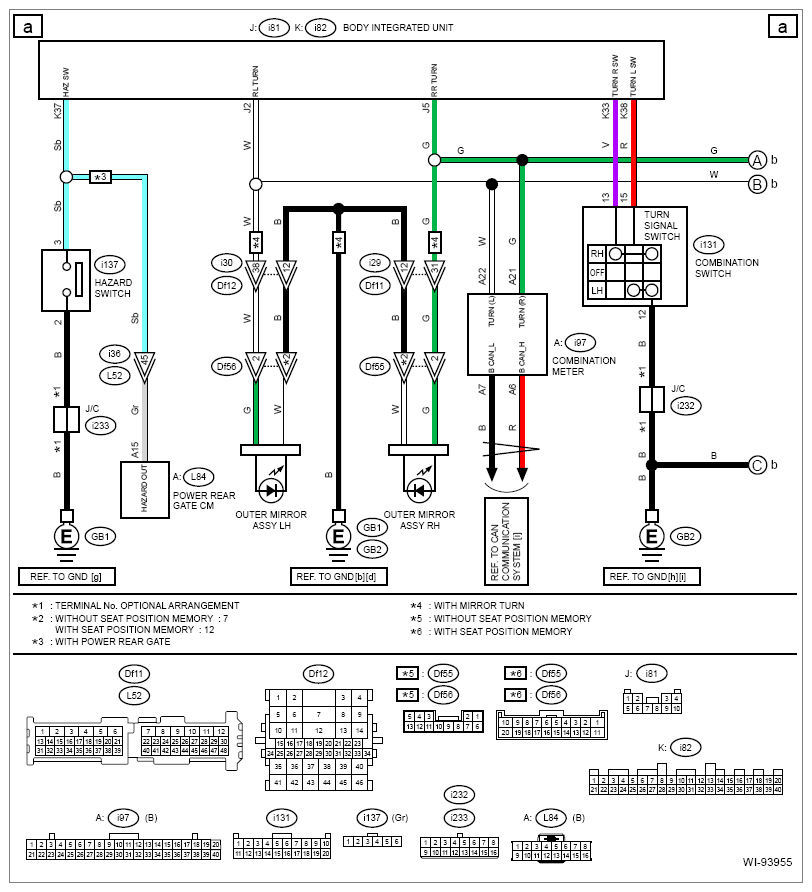

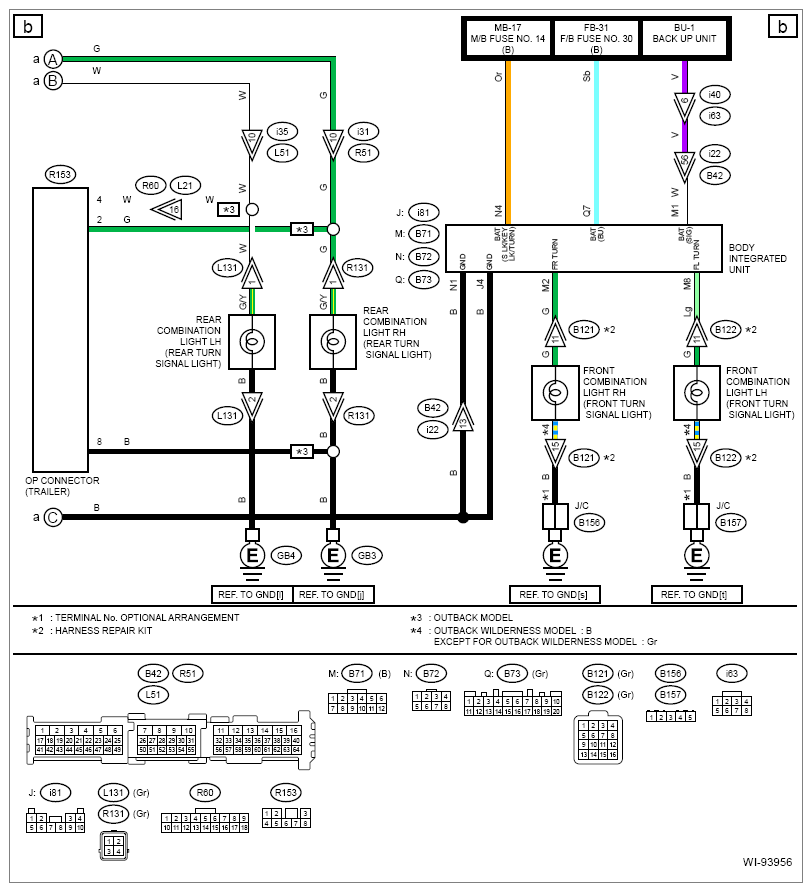

Turn Signal Light and Hazard Light System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
