Seat Ventilation System: Wiring Diagram

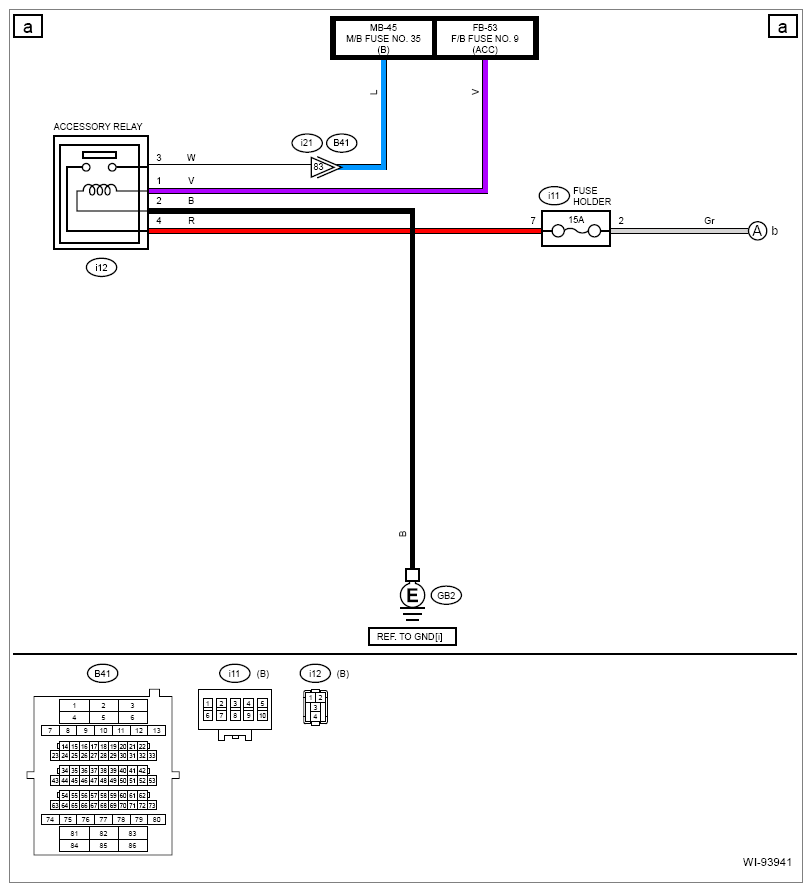

G16388138

Courtesy of SUBARU OF AMERICA, INC.

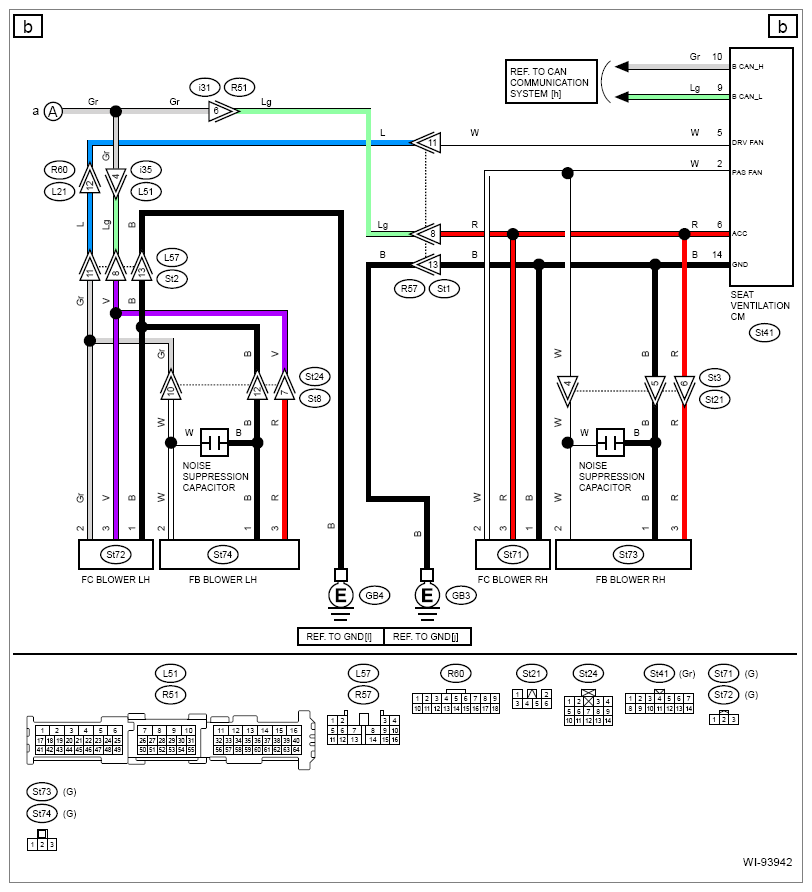

G16388139

Courtesy of SUBARU OF AMERICA, INC.
