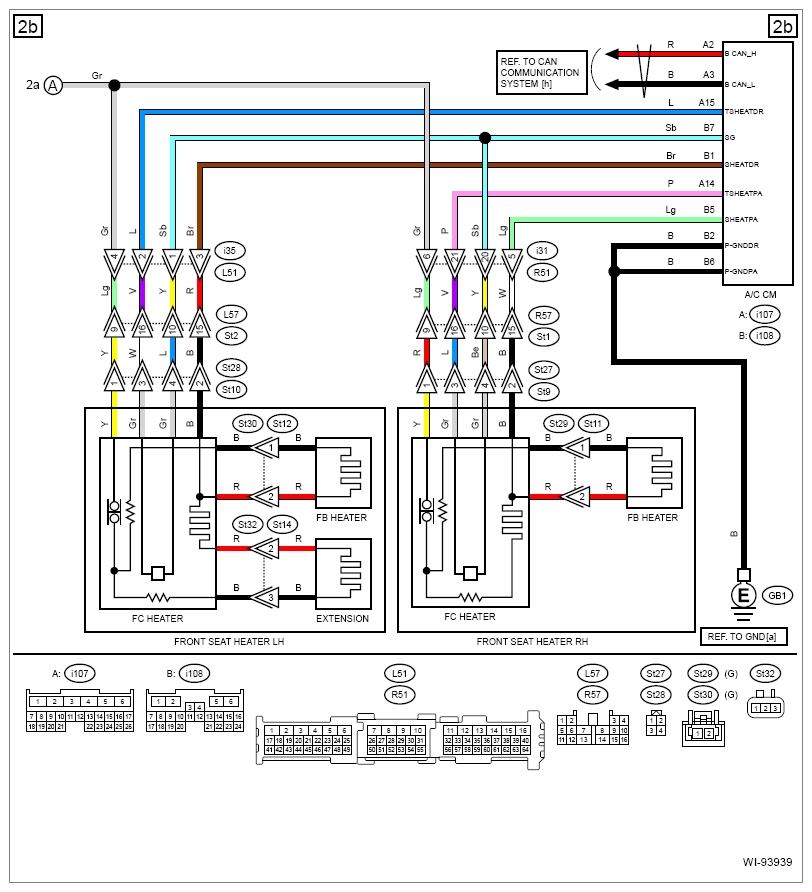

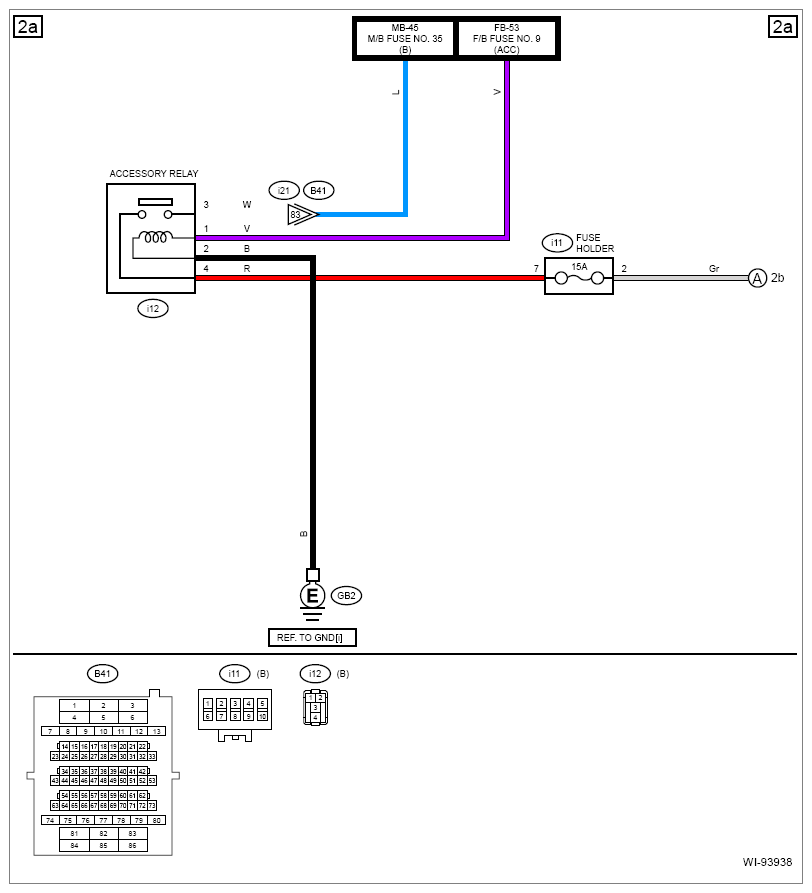

Home >> Subaru >> 2023 >> Outback Base >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay >> Seat Heater System >> Wiring Diagram >> Front Seat (With Seat Ventilation)
