Ventilation Seat (Diagnostics): Electrical Component Location: Location

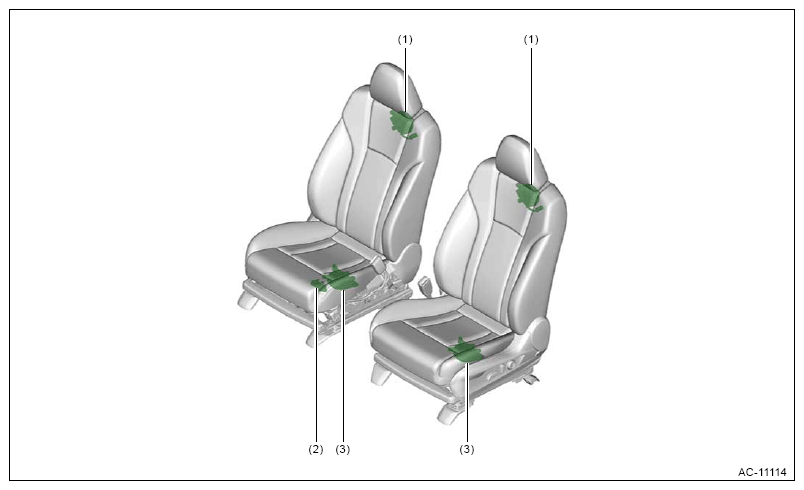

Courtesy of SUBARU OF AMERICA, INC.

(1)	Power unit blower backrest
(2)	Seat ventilation control module
(3)	Power unit blower cushion

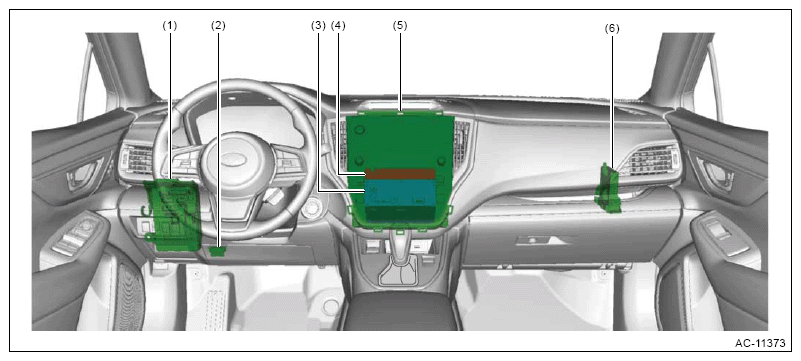

Courtesy of SUBARU OF AMERICA, INC.

(1)	Body integrated unit
(2)	Data link connector
(3)	Cockpit control module
(4)	Data communication module (DCM)
(5)	Center information display
(6)	A/C control module
