Multi Information Display Switch
NOTE:
For inspection of the illumination inside the switch, refer to "Switches and Harness" in "ENTERTAINMENT & MONITORING" service information. Ref. to ENTERTAINMENT & MONITORING>SWITCHES AND HARNESS>INSPECTION>SATELLITE SWITCH ASSEMBLY
.

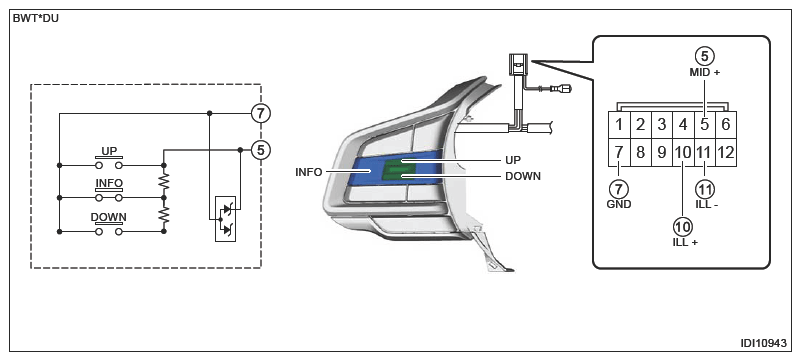

- Measure the resistance between connector terminals.
Terminal No. Inspection conditions Standard 5 - 7 UP INFO DOWN All OFF Approx. 3 MΩ or more UP ON Less than 1 Ω INFO ON Approx. 1, 000 Ω DOWN ON Approx. 3, 700 Ω - If it is found to be defective as a result of the inspection, replace the satellite switch.
