Shift Lock Control System: Wiring Diagram

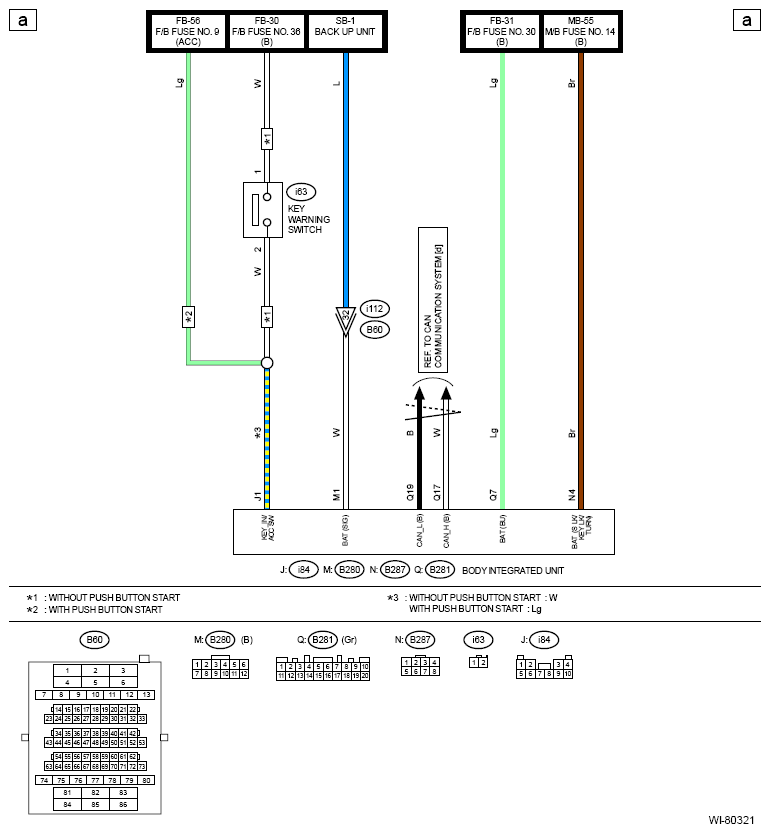

G13227545

Courtesy of SUBARU OF AMERICA, INC.

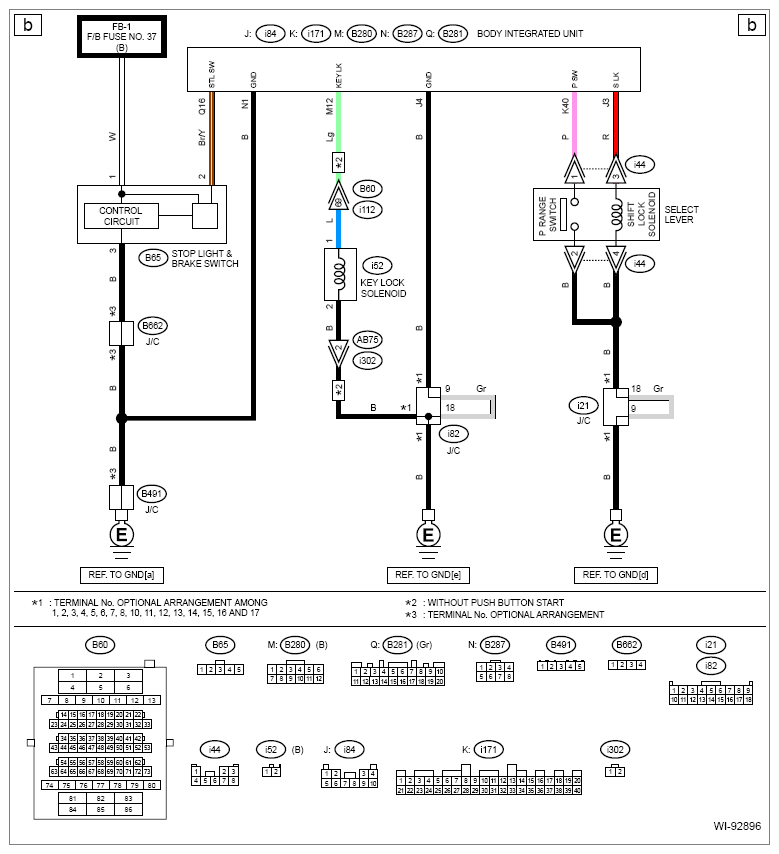

G14411931

Courtesy of SUBARU OF AMERICA, INC.
