Power Rear Gate System: Wiring Diagram

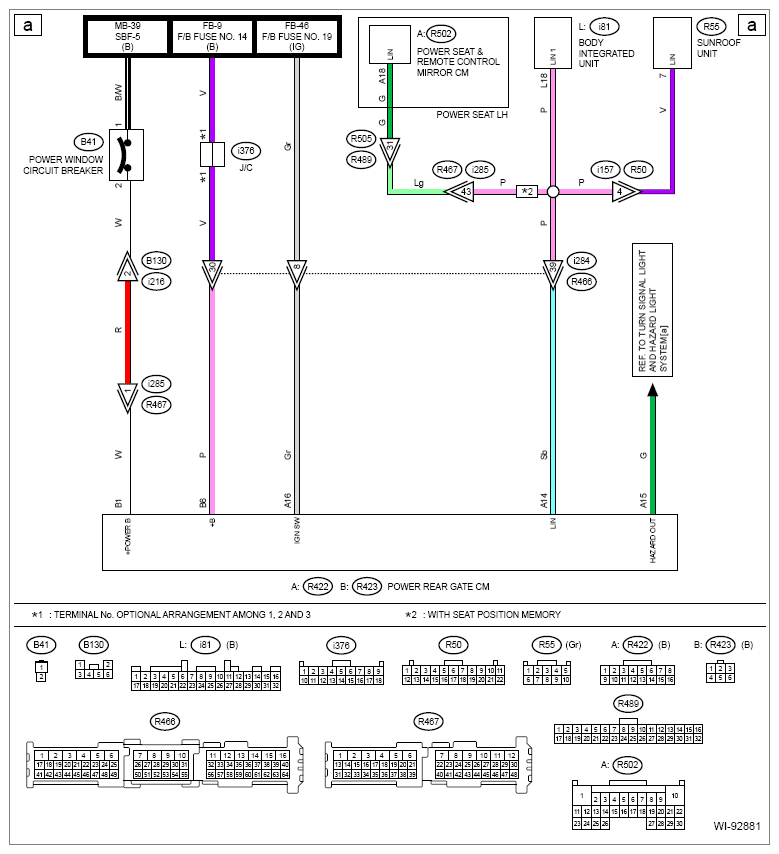

G14411888

Courtesy of SUBARU OF AMERICA, INC.

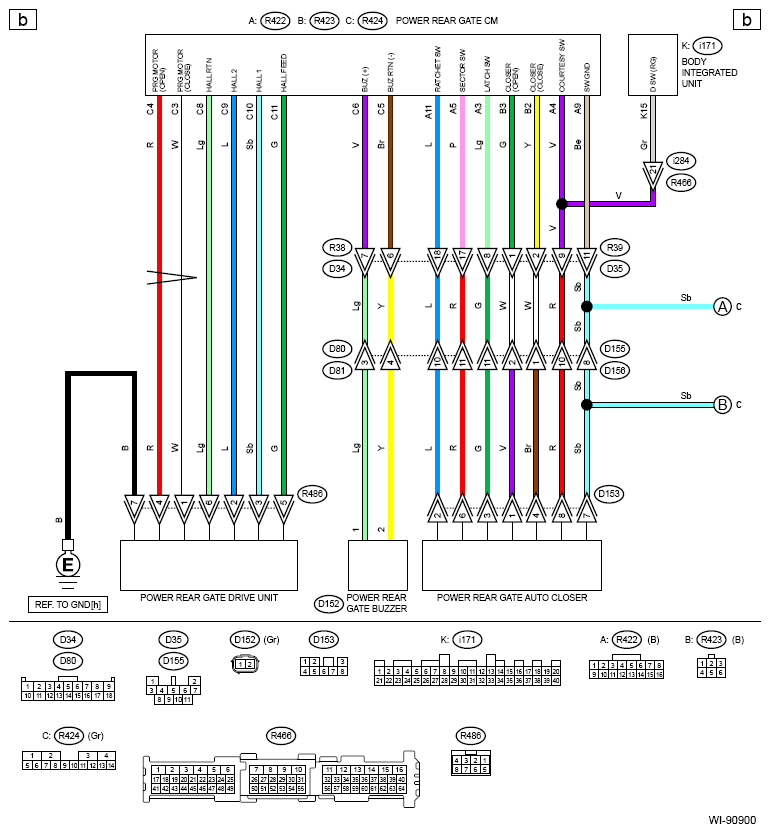

G13874794

Courtesy of SUBARU OF AMERICA, INC.

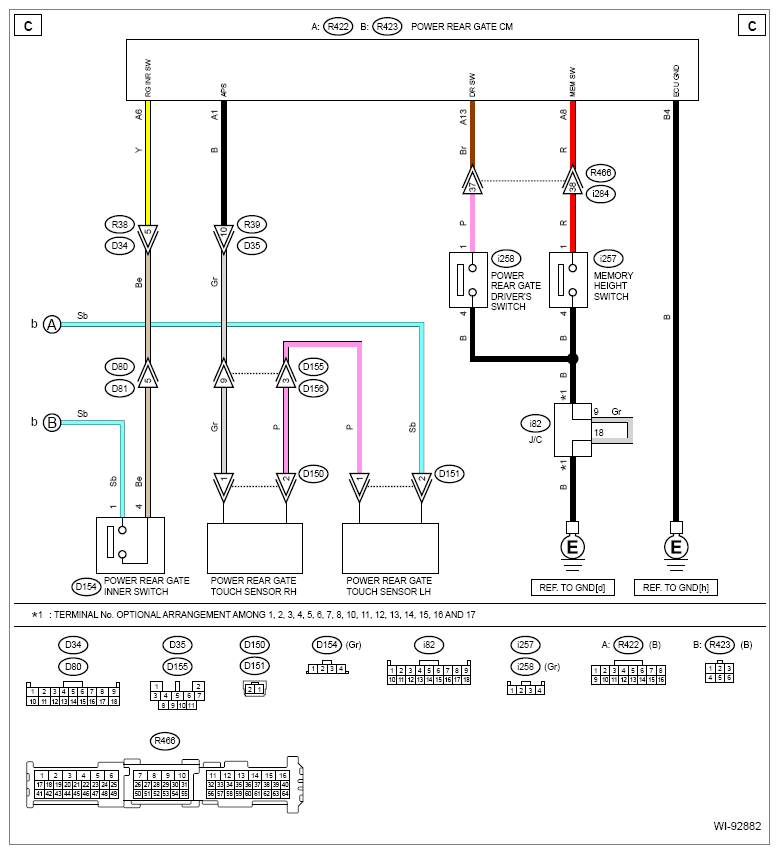

G14411890

Courtesy of SUBARU OF AMERICA, INC.
