DTC C1572: Brake Lamp Relay On Stuck

DTC detecting condition:

Defective stop light relay signal

Trouble symptom:

• Hill descent control does not operate. (Model with X mode)
• EyeSight does not operate.
• Brake lights do not go off sometimes.

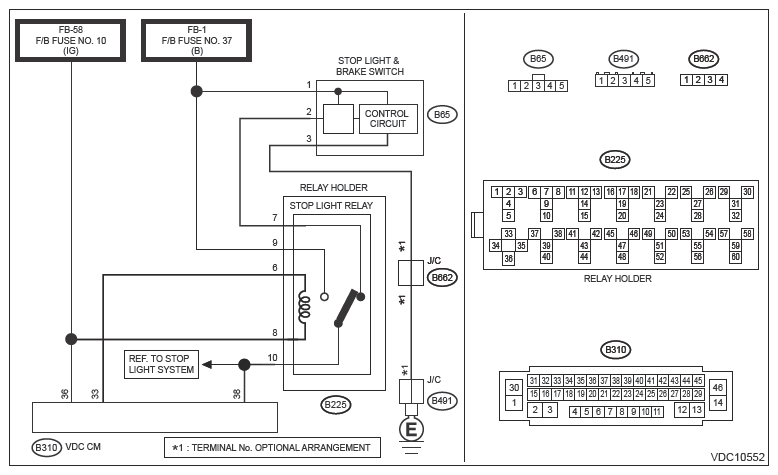

Wiring diagram:

Stop light system Ref. to WIRING SYSTEM>STOP LIGHT SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK FUSE  .
   1. Turn the ignition switch to OFF.
   2. Check F/B fuse (No. 10).

   Is the fuse blown out?

   Yes:  Replace F/B fuse (No. 10).

   No:  Go to  2.

2. CHECK STOP LIGHT RELAY  .

   Measure the resistance between brake light relay terminals.

   Terminals

   No. 6 - No. 8:

   Is the resistance less than 1 Ω?

   Yes:  Go to  3.

   No:  Replace the stop light relay.

3. CHECK VDCCM & H/U CONNECTOR  .

   Disconnect the connector from the VDCCM & H/U.

   Is there poor contact or damage of the VDCCM & H/U connector?

   Yes:  Repair the VDCCM & H/U connector.

   No:  Go to  4.

4. CHECK STOP LIGHT RELAY CIRCUIT  .

   Measure the resistance between the stop light relay and the fuse or the VDCCM & H/U connector.

   Connector & terminal

   (B225) No. 6 - (B310) No. 33:

   (B225) No. 8 - (F/B fuse) No. 10:

   Is the resistance less than 1 Ω?

   Yes:  Go to  5.

   No:  Repair the stop light relay circuit.

5. CHECK STOP LIGHT RELAY CIRCUIT  .
   1. Connect all connectors.
   2. Turn the ignition switch to ON.
   3. Measure the voltage between stop light relay and chassis ground.

      Connector & terminal

      (B225) No. 8 (+) - Chassis ground (-):

   Is the voltage 10 V or more?

   Yes:  Go to  6.

   No:  Repair the stop light relay circuit.

6. CHECK VDCCM & H/U  .
   1. Using the Subaru Select Monitor, perform the clear memory. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
   2. Execute the inspection mode, Ref. to BRAKE CONTROL (DIAGNOSTICS)>INSPECTION MODE .
   3. Read the DTC using Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is the same DTC displayed?

   Yes:  Replace the VDCCM & H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U) .

   No:  Go to  7.

7. CHECK DETECTION OF OTHER DTCS FOR VDC  .

   Read the DTC using Subaru Select Monitor, Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is any other DTC displayed?

   Yes:  Perform the diagnosis according to the DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

   No:  Currently, it is normal. There may have been a temporary poor contact in the harness and connector or a temporary noise interference.
