Center Console: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE:
    • Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
    • On power seat models, move the front seat all the way forward before disconnecting the ground terminal from the battery sensor.
  2. Remove the heater control assembly. Ref. to AIR CONDITIONER>CONTROL PANEL>REMOVAL .
  3. Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  4. Remove the right and left cover center sides.
    1. Remove the screws.
    2. Release the claws and clips and pull the cover center side to remove.
      G12399282Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the duct console center. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>CONSOLE DUCT .

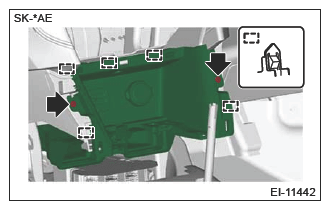

  6. Remove the tray center UPR together with the duct console front as a unit.
    1. Release the claws and remove the screws.
    2. Disconnect each connector, and remove the tray center UPR together with the duct console front as a unit.
      G16339628Courtesy of SUBARU OF AMERICA, INC.

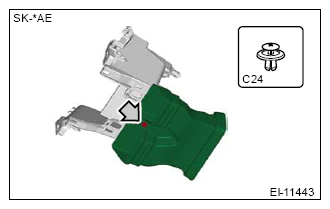

    3. Remove the clips, and remove the duct console front.
      G13227090Courtesy of SUBARU OF AMERICA, INC.
