Warning Box: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>SAFETY . Remove the overhead console.
    1. Disconnect the claws and hooks and remove the cap.
      G13226707Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the screws.
      G13226708Courtesy of SUBARU OF AMERICA, INC.

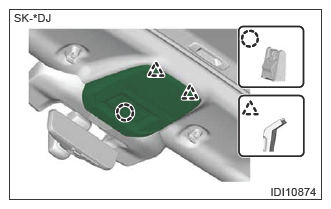

    3. Release the clips and hook, and then remove the overhead console.
      G14411447Courtesy of SUBARU OF AMERICA, INC.

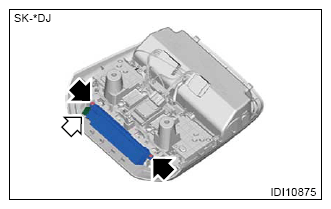

    4. Remove connector and screw, and remove the warning box.
      G14411448Courtesy of SUBARU OF AMERICA, INC.
