Exterior Lights (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Headlight ASSY Headlight beam leveler actuator SRH swivel actuator
(2)	VDC Control Module
(3)	TCM
(4)	ECM
(5)	Stereo camera
(6)	Headlight relay Lo
(7)	M/B fuse No. 3
(8)	M/B fuse No. 4

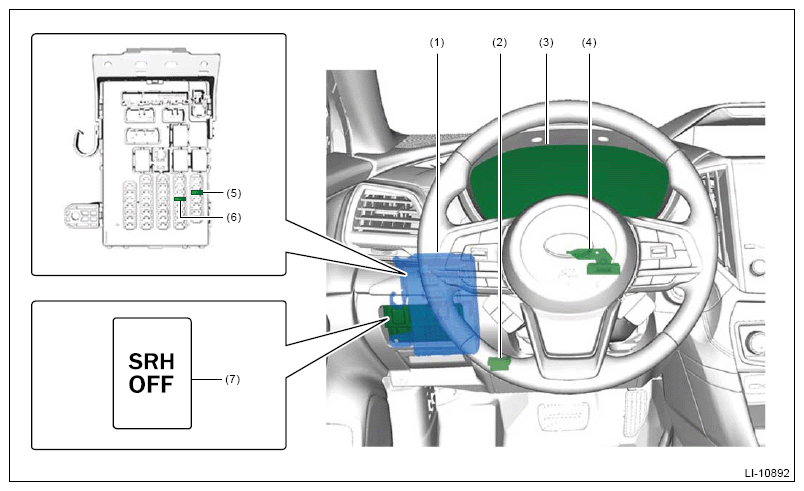

Courtesy of SUBARU OF AMERICA, INC.

(1)	Body integrated unit
(2)	Data link connector
(3)	Combination meter
(4)	Auto headlight beam leveler Control Module
(5)	F/B fuse No. 14
(6)	F/B fuse No. 18
(7)	SRH OFF switch
